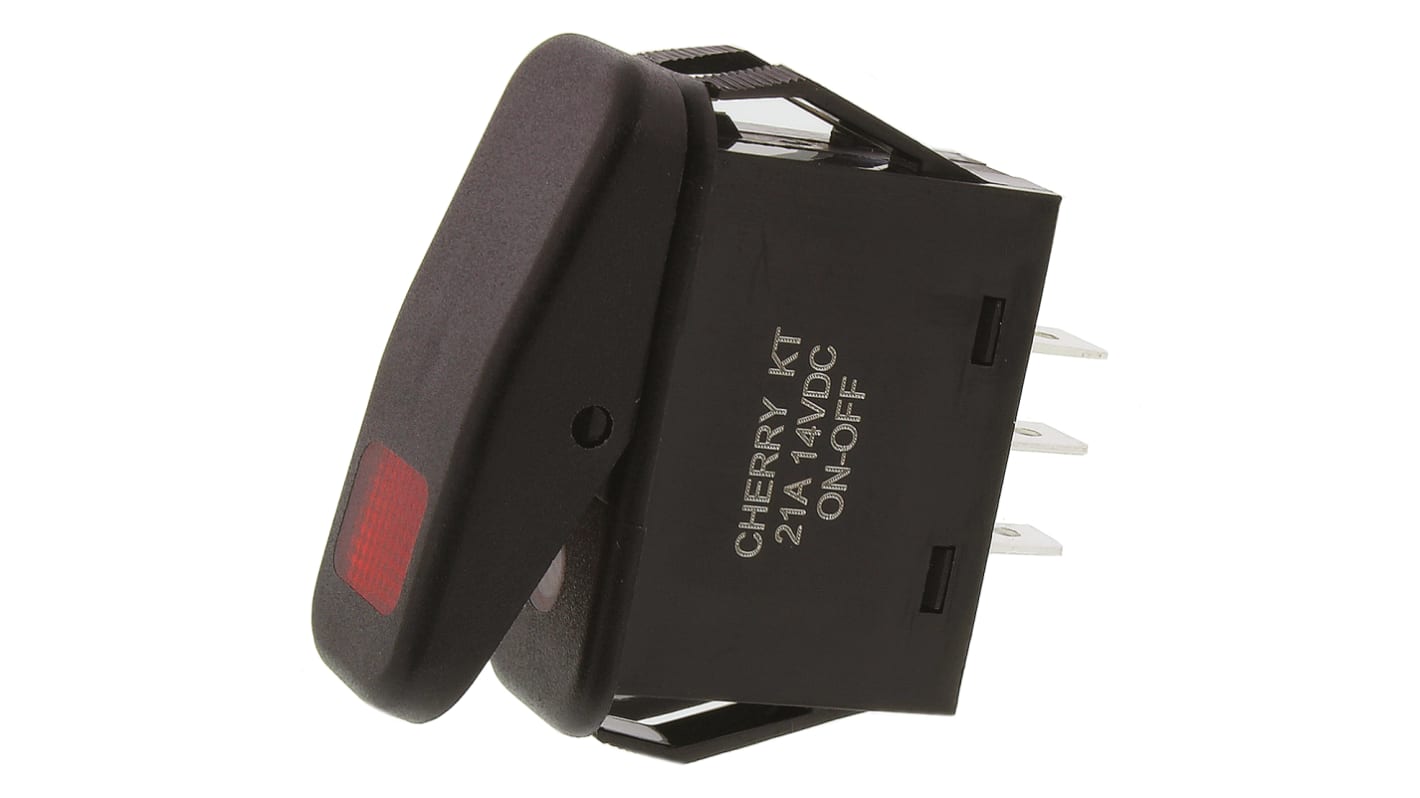

ZF Illuminated SPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 706-4010
- Mfr. Part No.:
- KTG2ALB2BBBRN1
- Brand:
- ZF
Discontinued
- RS Stock No.:
- 706-4010
- Mfr. Part No.:
- KTG2ALB2BBBRN1
- Brand:
- ZF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Contact Configuration | SPST | |
| Switch Operation | On-Off | |
| Panel Cut Out Width | 15.2mm | |
| Panel Cut Out Height | 36.8mm | |
| Contact Current Rating | 20 A | |
| Illuminated | Yes | |
| Actuator Colour | Black | |
| Mounting Type | Panel Mount | |
| IP Rating | IP56 | |
| Terminal Type | Quick Connect | |
| AC Voltage Rating | 125 V, 250V | |
| DC Voltage Rating | 14V | |
| Panel Cut Out Size | 36.8 x 15.2mm | |
| Actuator Shape | Rectangular | |
| Operating Temperature Range | -20 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Mechanical Life | 100000Operations | |
| Contact Resistance | 50mΩ | |
| Minimum Operating Temperature | -20°C | |
| Case Material | Nylon 66 | |
| Contact Material | Silver Plated Copper Alloy | |
| Select all | ||
|---|---|---|
Brand ZF | ||
Contact Configuration SPST | ||
Switch Operation On-Off | ||
Panel Cut Out Width 15.2mm | ||
Panel Cut Out Height 36.8mm | ||
Contact Current Rating 20 A | ||
Illuminated Yes | ||
Actuator Colour Black | ||
Mounting Type Panel Mount | ||
IP Rating IP56 | ||
Terminal Type Quick Connect | ||
AC Voltage Rating 125 V, 250V | ||
DC Voltage Rating 14V | ||
Panel Cut Out Size 36.8 x 15.2mm | ||
Actuator Shape Rectangular | ||
Operating Temperature Range -20 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Mechanical Life 100000Operations | ||
Contact Resistance 50mΩ | ||
Minimum Operating Temperature -20°C | ||
Case Material Nylon 66 | ||
Contact Material Silver Plated Copper Alloy | ||
- COO (Country of Origin):
- CN
KT Series Waterproof Rocker Switches
Enclosed switch complying to IP56
Lighted and non-lighted versions
Snap-in mounting
Variety of actuator and lens color options
Mechanical life: 100,000 cycles
DC electrical life: 25,000 cycles
Lighted and non-lighted versions
Snap-in mounting
Variety of actuator and lens color options
Mechanical life: 100,000 cycles
DC electrical life: 25,000 cycles
