A range of miniature illuminated or non-illuminated round rocker switches designed for panel mounting. With a choice of latching or momentary switch operation, the IP40 rocker switches are suitable for a wide range of applications. The snap-in round rockers are available with a black or white body and can be single pole or double pole configured, dependent on individual requirements. These general purpose on-off rocker switches are ideal for maintenance, repair, and new design work.

Features and Benefits

• Moulded black or white plastic body
• Red or green neon, LED illumination on paddle version
• Curved ergonomic actuator
• Plain or I/O marking option on actuator face
• SPST, SPDT, and DPST switch configurations
• Anti-rotation / positioning lug
• 20 mm panel cut-out
• Optional clear protective snap-on cover
• Connection via 6.3 mm QC terminals (double pole version) or 4.8 mm QC terminals (single pole version)

Typical applications for round rocker switches

Rocker switches are among the most frequently used electrical switches used in the market today. Due to the simple design and easy operation, rocker switches are found across many domestic and industrial applications. Some of the most common are
• Computers and peripherals
• Audio and video equipment
• Domestic appliances
• White goods
• Camping caravans
• Automation control

FAQ

• Are the round rocker switches easy to connect?
Yes, the rocker switches have male quick connect 4.8 mm or 6.3 mm tab terminals at the rear. The connection is easy, simply select the appropriate sized female push on terminal. Red, Yellow or Blue dependent on wire size.
• Are there any other accessories available?
Yes, a clear snap-on cover for added protection is available separately. See part number 533-3018

• Part number 314-4995 is a black latching switch SPST with I/O marking
• Part number 533-2986 is a black latching switch DPST with I/O marking
• Part number 329-7140 is a black latching switch SPDT with no marking
• Part number 329-7156 is a black momentary switch SPST with no marking
• Part number 314-5005 is an illuminated red latching switch SPST with no marking
• Part number 329-7128 is an illuminated green latching switch SPST with no marking
• Part number 533-2992 is an illuminated red latching switch DPST with no marking
• Part number 533-3002 is an illuminated green latching switch DPST with no marking
• Part number 329-7134 is an illuminated red latching switch SPST LED paddle (Voltage Rating of the LED: 2 V)

UL; CSA; VDE

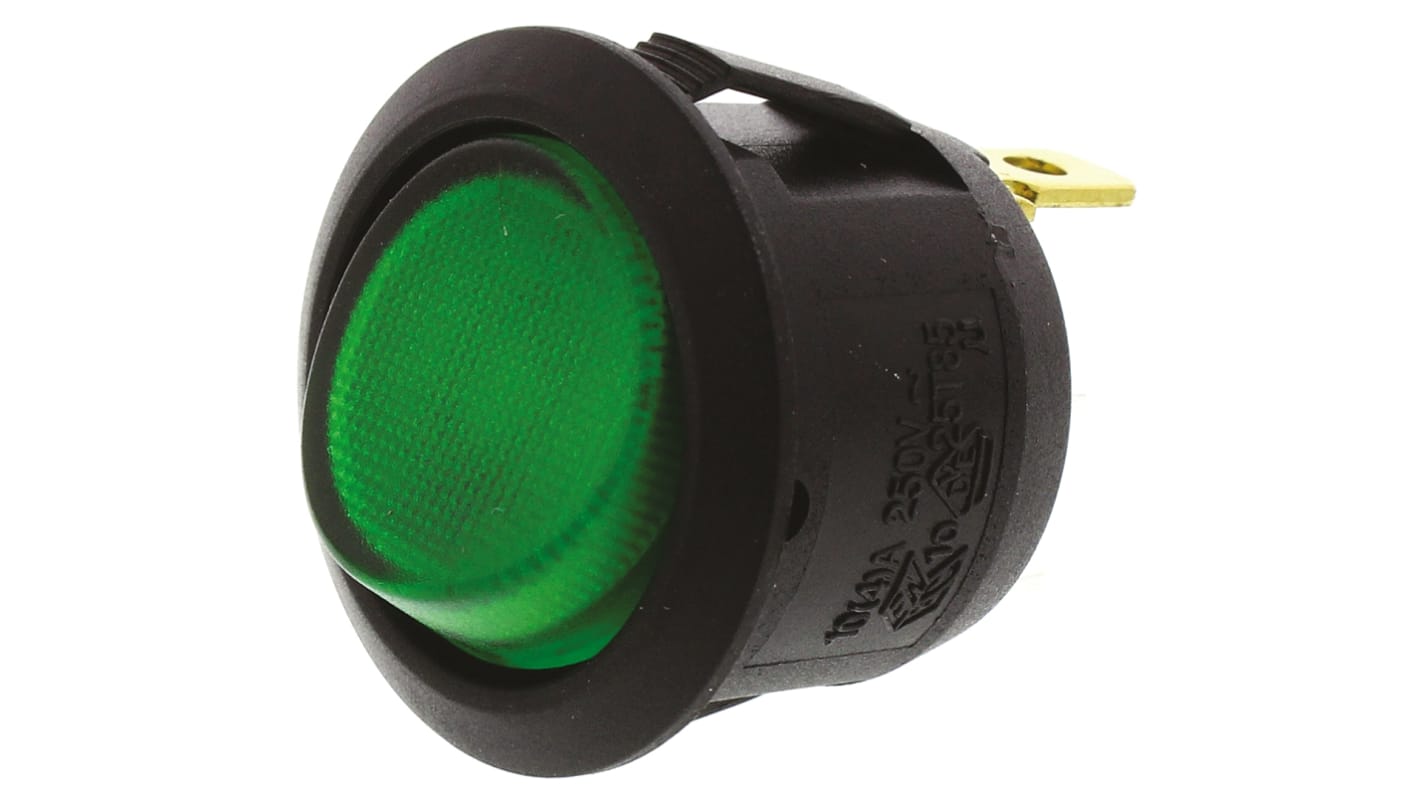

This rocker switch is a versatile panel mount switch designed for reliable operation across various applications. With a contact configuration of SPST and an operation mechanism of On-Off, this switch is ideal for user-friendly control. It features a compact design with a panel cut-out diameter of 20.2mm, making it suitable for integration into different equipment.

• SPST configuration ensures straightforward ON/OFF functionality
• Illuminated design provides clear visibility in low-light conditions
• Green actuator allows for quick identification and usability
• Quick connect terminals facilitate easy installation and maintenance
• Rated for 10A, suitable for medium-load applications

• Used for controlling lighting systems in industrial settings
• Suitable for automation equipment requiring reliable switching
• Ideal for electrical panels in commercial appliances

The electrical life exceeds 10,000 operations, making it durable for extensive use in various applications.

The quick connect terminals streamline the installation process, reducing assembly time and ensuring secure connections.

It operates effectively at an AC voltage rating of 250V, accommodating a wide range of electrical needs.

The materials used provide significant resistance to humidity and impact, contributing to long-term reliability in challenging conditions.

UL; CSA; VDE; SEMKO; DEMKO; NEMKO; FIMKO
