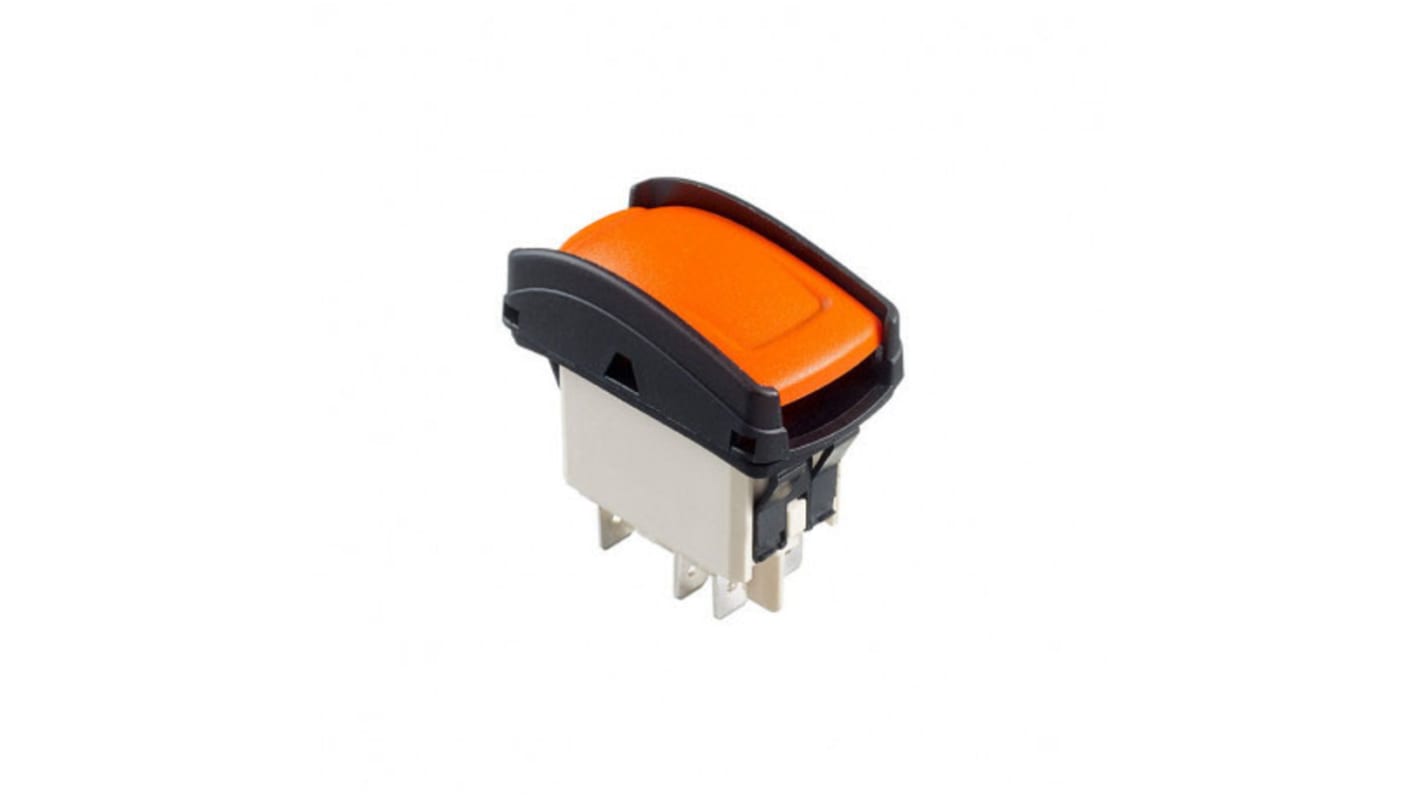

APEM Illuminated SPDT, (On)-On Rocker Switch Panel Mount
- RS Stock No.:
- 193-1918
- Mfr. Part No.:
- KH149AAZXXG12N040305
- Brand:
- APEM
Available to back order for despatch 17/12/2024
Added
Price Each
£24.44
(exc. VAT)
£29.33
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £24.44 |
| 5 + | £23.22 |
- RS Stock No.:
- 193-1918
- Mfr. Part No.:
- KH149AAZXXG12N040305
- Brand:
- APEM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Designed for harsh environments, KH series rocker switches are protected against accidental actuation with a protection guard. Featuring front panel sealing as standard, the KH series is the most robust product of the K range. Due to its panel seal, this series is perfectly adapted to the harshest environments (high pressure cleaners, dust, salt spray…). The KH series is available illuminated and non-illuminated, with numerous symbols and rocker colours, to meet customer requirements at best.
Protected against accidental actuation
Wide choice of colours
Laser etched or pad printed symbols
Illuminated or non-illuminated
Wide choice of colours
Laser etched or pad printed symbols
Illuminated or non-illuminated
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | (On)-On |
| Panel Cut Out Width | 21.08mm |
| Panel Cut Out Height | 36.8mm |
| Contact Current Rating | 5 A |
| Illuminated | Yes |
| Actuator Colour | Red |
| Mounting Type | Panel Mount |
| IP Rating | IP69K |
| Terminal Type | Quick Connect, Solder |
| Legend Text | Horn (Symbol) |
| Panel Cut Out Size | 21.08 x 36.8mm |
| DC Voltage Rating | 24V |
| Actuator Shape | Rectangular |
| Contact Material | Silver |
| Case Material | PA 6.6 |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Legend Text Colour | White (Symbol) |
| Minimum Operating Temperature | -40°C |
