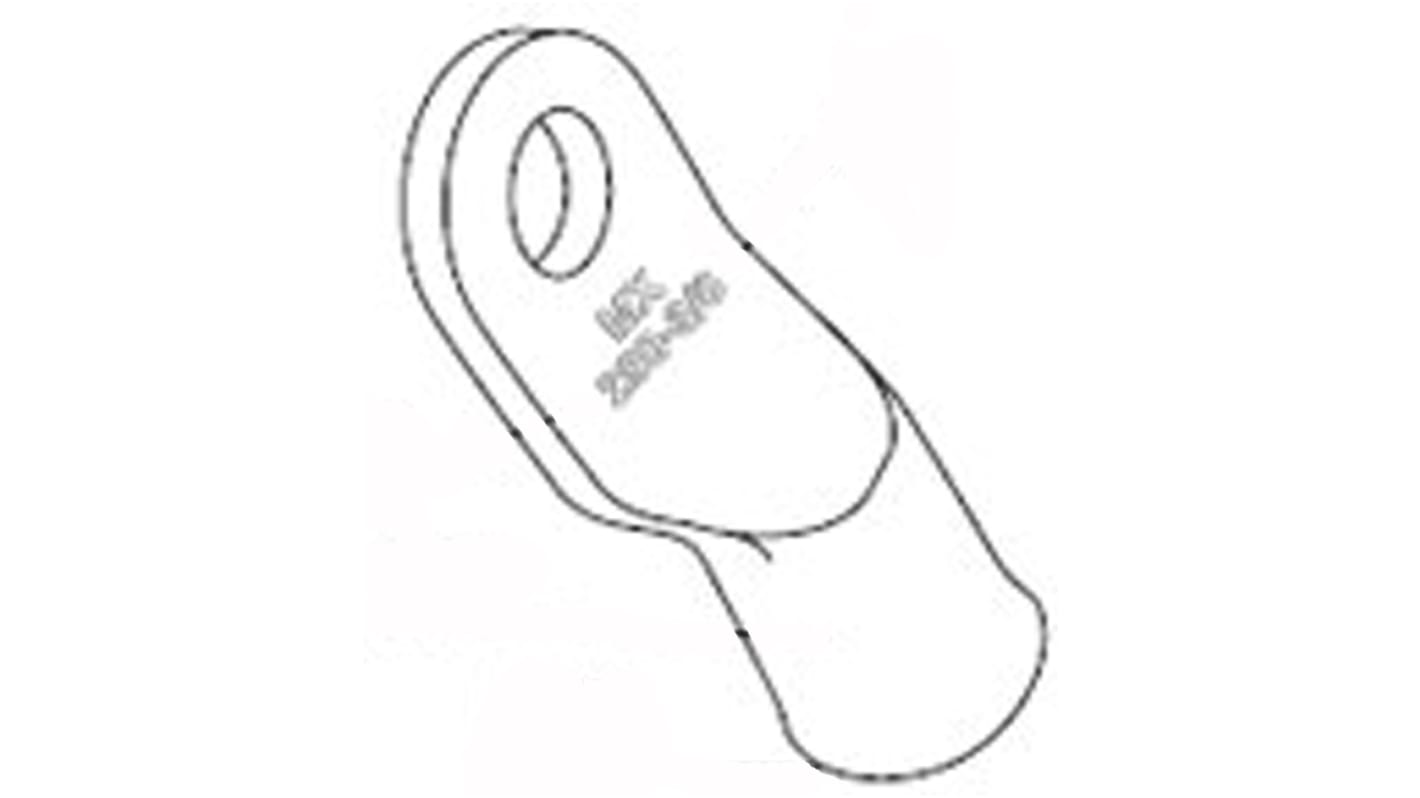

    Molex Uninsulated Ring Terminal, M6 (1/4) Stud Size, 35mm² to 35mm² Wire Size

    Molex
    RS Stock No.:
    822-1494
    Mfr. Part No.:
    19221-0418
    Brand:
    Molex
    View all Ring Terminals
    Available to back order for despatch 04/12/2023
    Add to Basket
    Units

    Added

    Price Each

    £1.64

    (exc. VAT)

    £1.97

    (inc. VAT)

    UnitsPer unit
    1 - 4£1.64
    5 - 24£1.43
    25 - 74£1.29
    75 - 149£1.13
    150 +£0.97
    RS Stock No.:
    822-1494
    Mfr. Part No.:
    19221-0418
    Brand:
    Molex

    Technical Reference


    Legislation and Compliance


    Product Details

    Molex Ring Tongue Terminals


    Molex crimp ring terminals made from copper with tin plating. These ring terminals are suitable for use with battery cables. Available in various wire gauge and stud sizes.


    Specifications

    AttributeValue
    Series Number0418
    InsulationUninsulated
    Outer Ring Diameter15.88mm
    Inner Ring Diameter7.06mm
    Minimum Wire Size mm²35mm²
    Maximum Wire Size mm²35mm²
    Minimum Wire Size AWG2AWG
    Maximum Wire Size AWG2AWG
    Stud SizeM6 (1/4)
    Contact MaterialCopper
    Contact PlatingTin
    Thickness2.41mm
    Overall Length41.28mm
