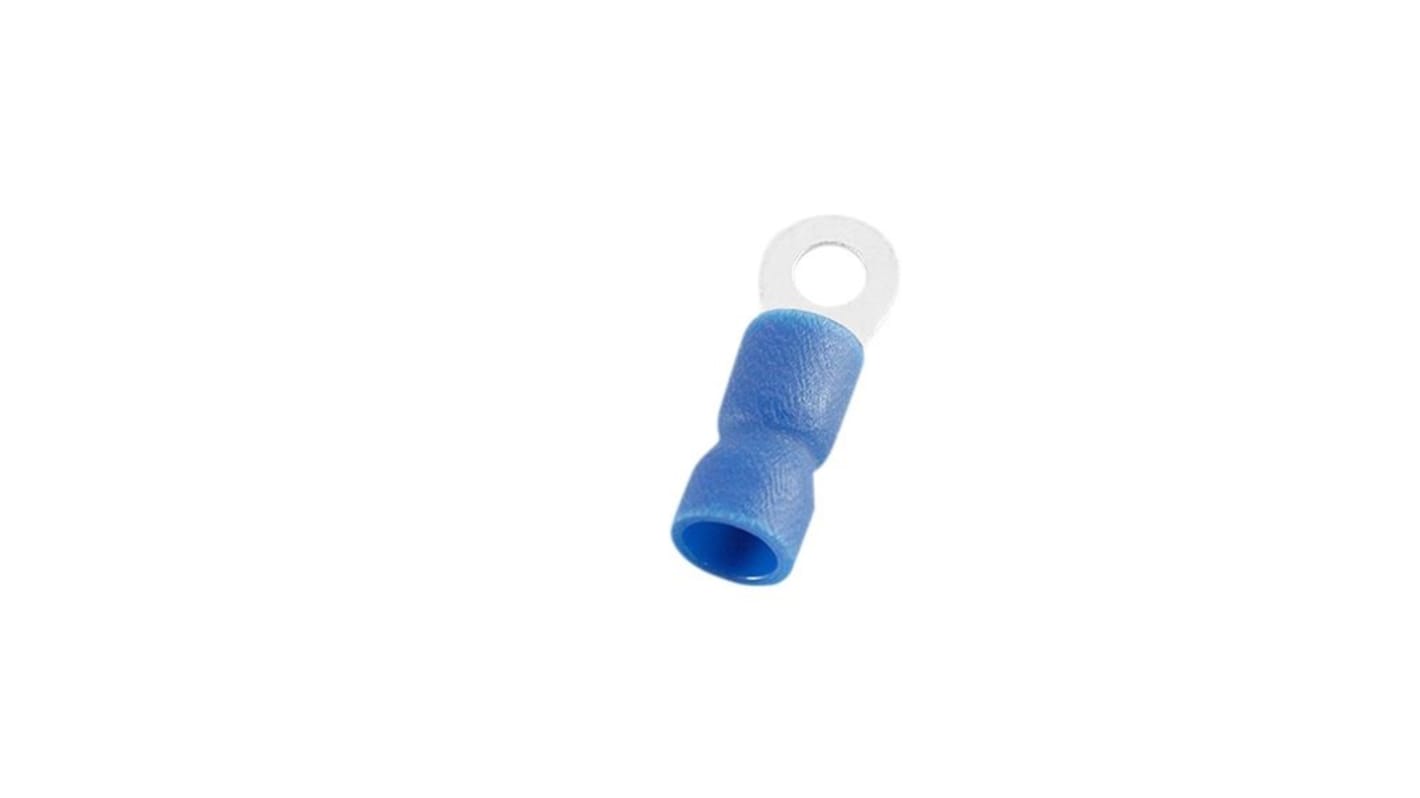

RND, RND 465 Insulated Ring Terminal, 5/16 in Stud Size 14 AWG 16 AWG Wire Size, Blue
- RS Stock No.:
- 283-3138
- Distrelec Article No.:
- 301-10-411
- Mfr. Part No.:
- RND 465-00633
- Brand:
- RND
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Bag of 100)
£0.095
(exc. VAT)
£0.114
(inc. VAT)
- RS Stock No.:
- 283-3138
- Distrelec Article No.:
- 301-10-411
- Mfr. Part No.:
- RND 465-00633
- Brand:
- RND
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RND | |
| Series | RND 465 | |
| Product Type | Ring Terminal | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Inner Ring Diameter | 8.4mm | |
| Outer Ring Diameter | 12mm | |
| Maximum Wire Size AWG | 16 AWG | |
| Minimum Wire Size AWG | 14 AWG | |
| Overall Length | 28.6mm | |
| Stud Size | 5/16 in | |
| Colour | Blue | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 0.8mm | |
| Standards/Approvals | REACH, RoHS | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand RND | ||
Series RND 465 | ||
Product Type Ring Terminal | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Inner Ring Diameter 8.4mm | ||
Outer Ring Diameter 12mm | ||
Maximum Wire Size AWG 16 AWG | ||
Minimum Wire Size AWG 14 AWG | ||
Overall Length 28.6mm | ||
Stud Size 5/16 in | ||
Colour Blue | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Thickness 0.8mm | ||
Standards/Approvals REACH, RoHS | ||
Maximum Operating Temperature 105°C | ||
- COO (Country of Origin):
- CN
The Ring Terminal made of copper with a tin plated surface. With a maximum temperature of plus 105 dexampleree Celsius and a maximum voltage of 600V. This terminal ring suitable for professional or industrial use.
Insulated
Superior quality ring terminal
UL certified according to E502427
