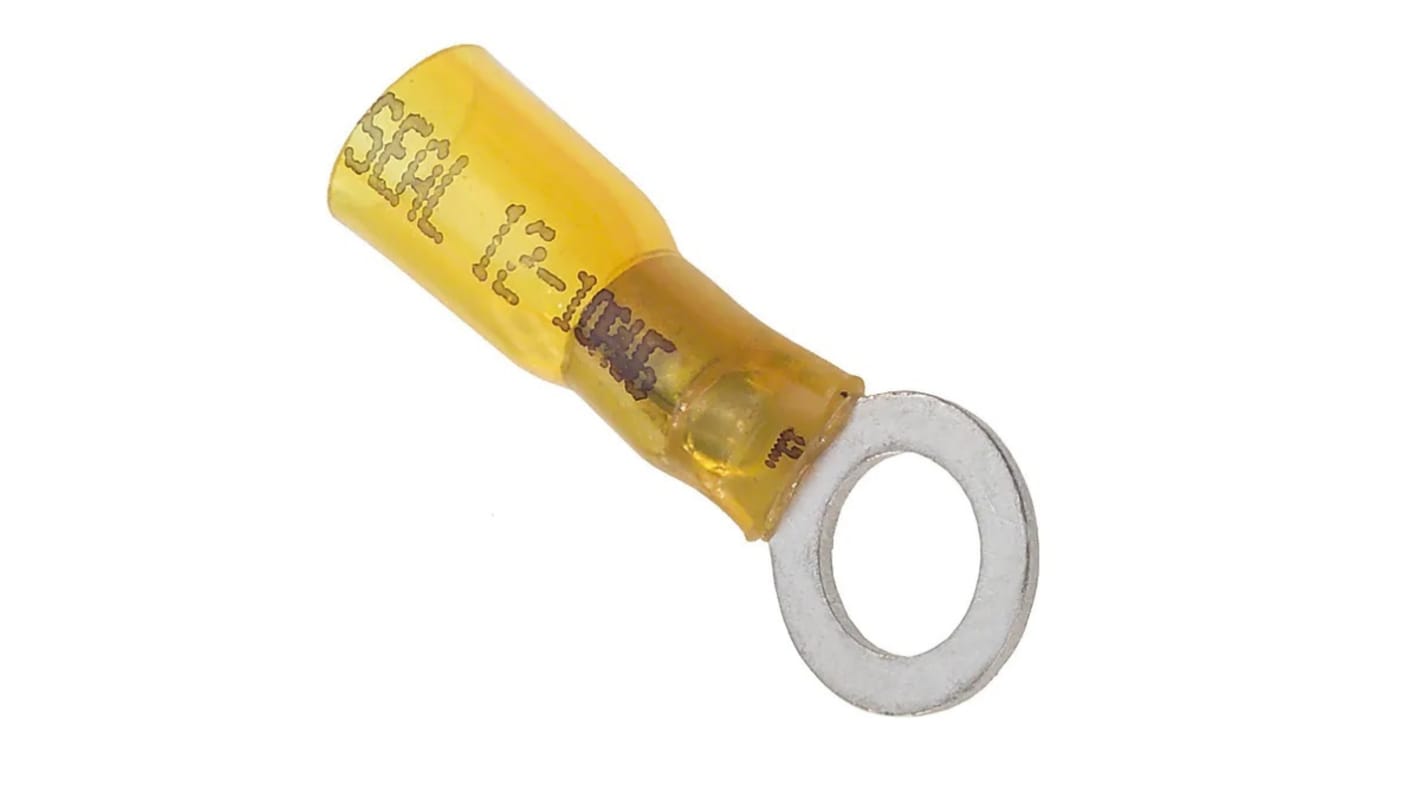

Molex, Perma-Seal Insulated Ring Terminal, M8 Stud Size 12 AWG 10 AWG Wire Size, Copper
- RS Stock No.:
- 259-2470
- Mfr. Part No.:
- 19164-0067
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 5 units)*
£3.15
(exc. VAT)
£3.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 45 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.63 | £3.15 |
| 50 - 120 | £0.554 | £2.77 |
| 125 - 245 | £0.51 | £2.55 |
| 250 + | £0.498 | £2.49 |
*price indicative
- RS Stock No.:
- 259-2470
- Mfr. Part No.:
- 19164-0067
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | Ring Terminal | |
| Series | Perma-Seal | |
| Insulation | Insulated | |
| Insulation Material | Nickel Activated Carbon | |
| Outer Ring Diameter | 13.7mm | |
| Inner Ring Diameter | 8.33mm | |
| Minimum Wire Size AWG | 12 AWG | |
| Maximum Wire Size AWG | 10 AWG | |
| Overall Length | 39.4mm | |
| Stud Size | M8 | |
| Colour | Copper | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Thickness | 0.79mm | |
| Standards/Approvals | UL E32244, CSA LR18689 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type Ring Terminal | ||
Series Perma-Seal | ||
Insulation Insulated | ||
Insulation Material Nickel Activated Carbon | ||
Outer Ring Diameter 13.7mm | ||
Inner Ring Diameter 8.33mm | ||
Minimum Wire Size AWG 12 AWG | ||
Maximum Wire Size AWG 10 AWG | ||
Overall Length 39.4mm | ||
Stud Size M8 | ||
Colour Copper | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Thickness 0.79mm | ||
Standards/Approvals UL E32244, CSA LR18689 | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
The Molex perma-real ring tongue terminal for 10-12 AWG wire. It has stud size 5/16" (m8).
Barrel type closed
Insulation NiAc
Material - plating mating tin
Net weight 2.286/g
Packaging type Bag
Stud size 5/16" (M8)
Wire insulation diameter 7.87mm
Wire size AWG 10, 12
Wire size 3.09 mm² to 5.01 mm²
