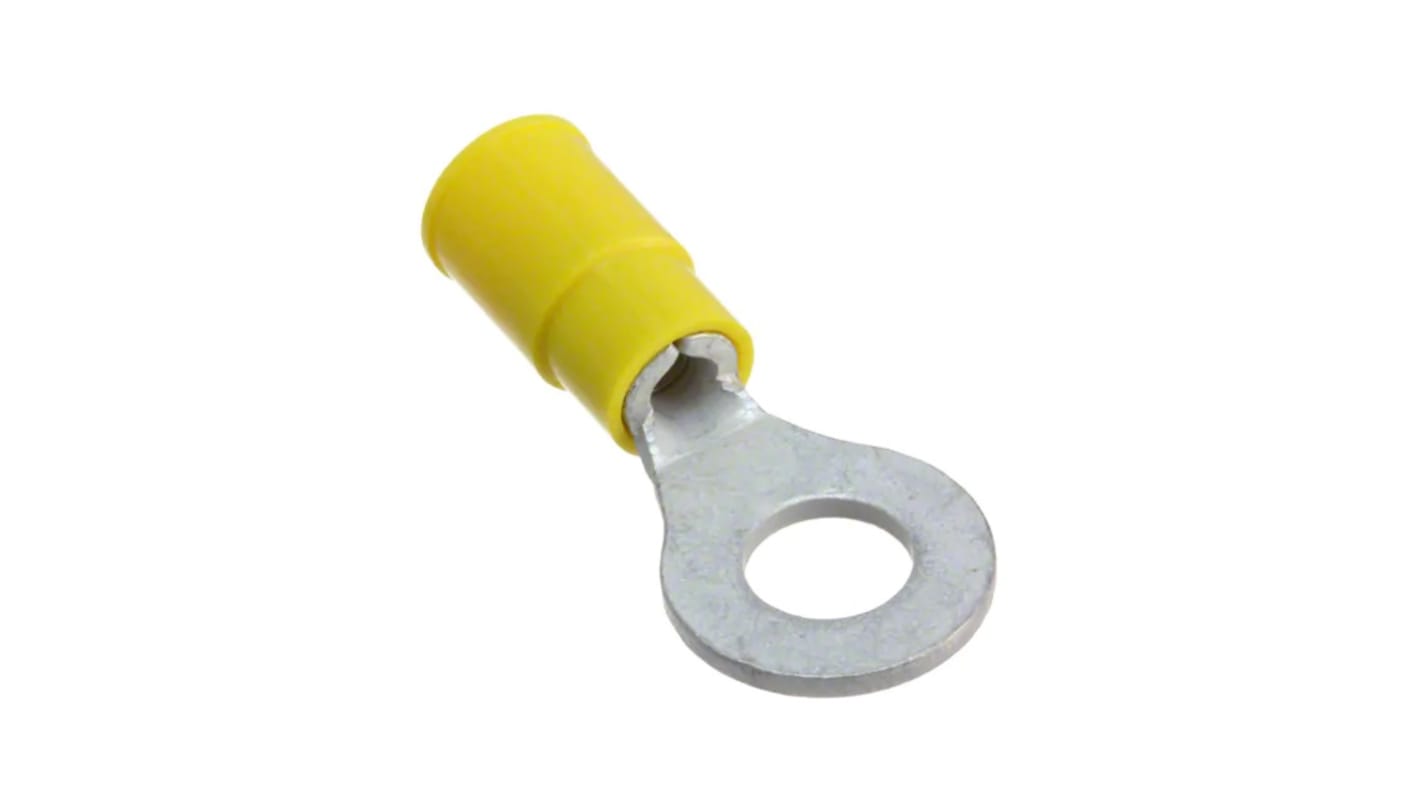

Molex, 19054 Insulated Crimp Ring Terminal, 1/4 (M6) Stud Size, Yellow

RS Stock No.:: 213-5404
Mfr. Part No.:: 190540097
Brand:: Molex

Molex, 19054 Insulated Crimp Ring Terminal, 1/4 (M6) Stud Size, Yellow

Available to back order for despatch 30/08/2024

Price Each (In a Bag of 500)

£0.212

(exc. VAT)

£0.254

(inc. VAT)

Units	Per unit	Per Bag*
500 +	£0.212	£106.00

*price indicative

RS Stock No.:: 213-5404
Mfr. Part No.:: 190540097
Brand:: Molex

Technical Reference

Datasheet - 190540097

Legislation and Compliance

COO (Country of Origin):: US

Product Details

Molex Series 19054 Crimp Ring Terminal, 6.73mm Inner Ring Diameter, PVC Insulation - 190540097

This crimp ring terminal by Molex is a versatile and reliable solution for your electrical connections. With insulated PVC material and a sturdy 1/4 (M6) stud size, it ensures a secure and durable connection every time.

Features & Benefits

• Inner Ring Diameter of 6.73 mm for precise fitting
• Outer Ring Diameter of 13.72 mm for comprehensive coverage
• Yellow colour for easy identification
• High-quality PVC insulation for safety and reliability
• Compatible with 14-16 Heavy Duty AWG Wire for versatility
• Stud Size of 1/4" (M6) for standard applications

Applications

• Ideal for heavy-duty electrical wiring applications
• Suitable for use in automation and mechanical systems
• Can be used for connecting ring terminals in high-traffic environments

Can it be used with other wire sizes?

Yes, the crimp ring terminal is compatible with 14-16 Heavy Duty AWG Wire.

Will it fit different stud sizes?

The terminal comes with a 1/4" (M6) stud size for standard applications.

Is the insulation durable against wear and tear?

The PVC insulation ensures long-lasting protection for your connections.

Specifications

Attribute	Value
Series	19054
Series Number	19054
Insulation	Insulated
Insulation Material	PVC
Outer Ring Diameter	13.72mm
Inner Ring Diameter	6.73mm
Stud Size	1/4 (M6)
Colour	Yellow
