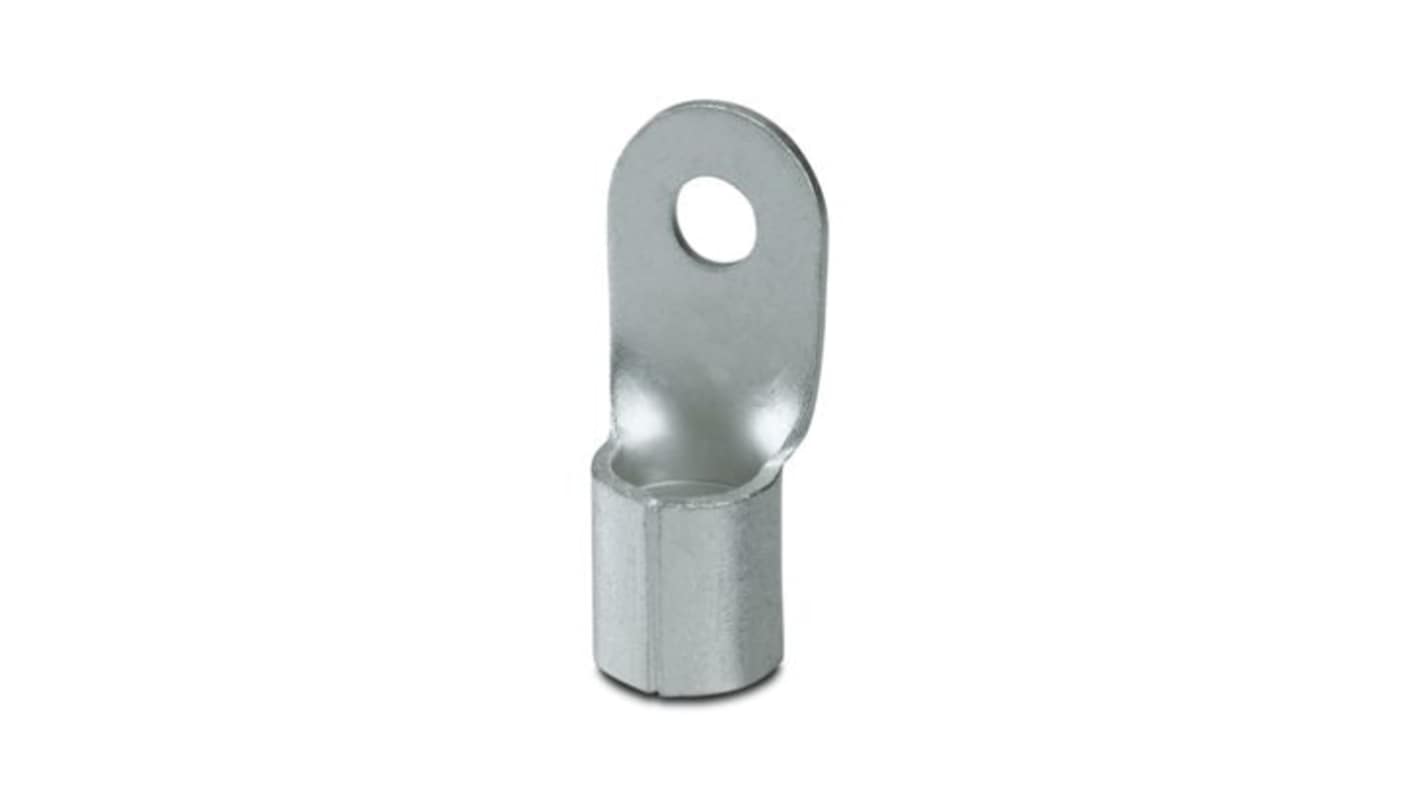

Phoenix Contact, C-RC Uninsulated Ring Terminal, M8 Stud Size 2/0 AWG 2/0 AWG Wire Size, Silver
- RS Stock No.:
- 609-238
- Mfr. Part No.:
- 3240116
- Brand:
- Phoenix Contact
Subtotal (1 pack of 100 units)*
£183.81
(exc. VAT)
£220.57
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £183.81 | £1.838 |
*price indicative
- RS Stock No.:
- 609-238
- Mfr. Part No.:
- 3240116
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ring Terminal | |
| Series | C-RC | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 8.4mm | |
| Minimum Wire Size AWG | 2/0 AWG | |
| Maximum Wire Size AWG | 2/0 AWG | |
| Stud Size | M8 | |
| Colour | Silver | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper | |
| Thickness | 2mm | |
| Standards/Approvals | DIN 46234 | |
| Maximum Operating Temperature | 110°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ring Terminal | ||
Series C-RC | ||
Insulation Uninsulated | ||
Inner Ring Diameter 8.4mm | ||
Minimum Wire Size AWG 2/0 AWG | ||
Maximum Wire Size AWG 2/0 AWG | ||
Stud Size M8 | ||
Colour Silver | ||
Contact Plating Tin Plated | ||
Contact Material Copper | ||
Thickness 2mm | ||
Standards/Approvals DIN 46234 | ||
Maximum Operating Temperature 110°C | ||
- COO (Country of Origin):
- CN
The Phoenix Contact Ring cable lug is designed to ensure a secure and reliable connection for a wide range of applications. The non-insulated design allows for maximum versatility when paired with various cables, making it an ideal choice for professionals in industries such as automation and electrical engineering. Engineered according to DIN 46234 standards, the product features high-quality tin-plated electrolytic copper, ensuring excellent conductivity and protection against corrosion. The compact size and robust construction not only facilitate easy handling but also guarantee durability in demanding environments. With a maximum operation temperature of 110°C, it is well-equipped to perform efficiently even under extreme conditions. Whether you're involved in machine building, device manufacturing, or infrastructure projects, this ring cable lug offers reliability and performance where it's needed most.
Compact design aids in easy installation and use in tight spaces
Maximum ambient temperature rating of 110°C, suitable for high-performance tasks
Compliant with EU RoHS regulations, ensuring environmental safety
