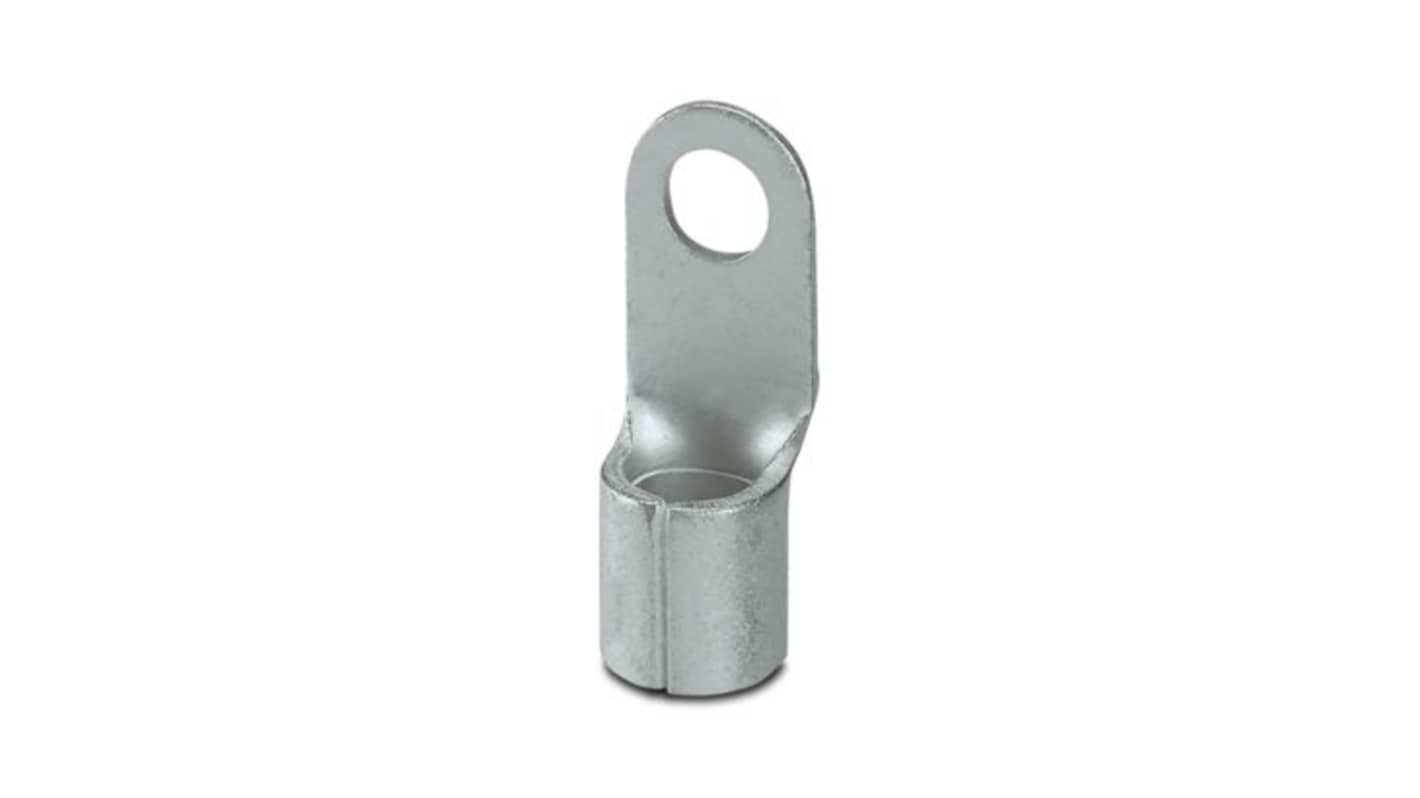

Phoenix Contact, C-RC 25/M6 Uninsulated Ring Terminal, M6 Stud Size 4 AWG 4 AWG Wire Size, Silver

View all Ring Terminals

Subtotal (1 pack of 100 units)*

£79.74

(exc. VAT)

£95.69

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£79.74£0.797

*price indicative

RS Stock No.:
609-236
Mfr. Part No.:
3240100
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

C-RC 25/M6

Product Type

Ring Terminal

Insulation

Uninsulated

Inner Ring Diameter

6.5mm

Minimum Wire Size AWG

4 AWG

Maximum Wire Size AWG

4 AWG

Stud Size

M6

Colour

Silver

Contact Material

Copper

Contact Plating

Tin Plated

Thickness

1.5mm

Standards/Approvals

DIN 46234

Maximum Operating Temperature

110°C

COO (Country of Origin):
CN
The Phoenix Contact Ring cable lug offers a robust connection solution designed with precision engineering for optimal performance. Ideal for various applications, this non-insulated ring cable lug accommodates a conductor size of 25 mm² and features an M6 connection for versatility. Its construction utilises high-quality tin-plated electrolytic copper, ensuring exceptional corrosion resistance and durability. Furthermore, this product is compatible with the CRIMPFOX-RC pliers, guaranteeing maximum conductor pull-out values thanks to its hard-soldered press zone. Rather than merely meeting standards, it significantly enhances the reliability of electrical installations across multiple sectors.

Fulfils EU RoHS substance requirements, ensuring environmental safety

Complies with DIN 46234 standards for added reliability

Ideal for both industrial and domestic applications

Features precise dimensions for optimal compatibility
