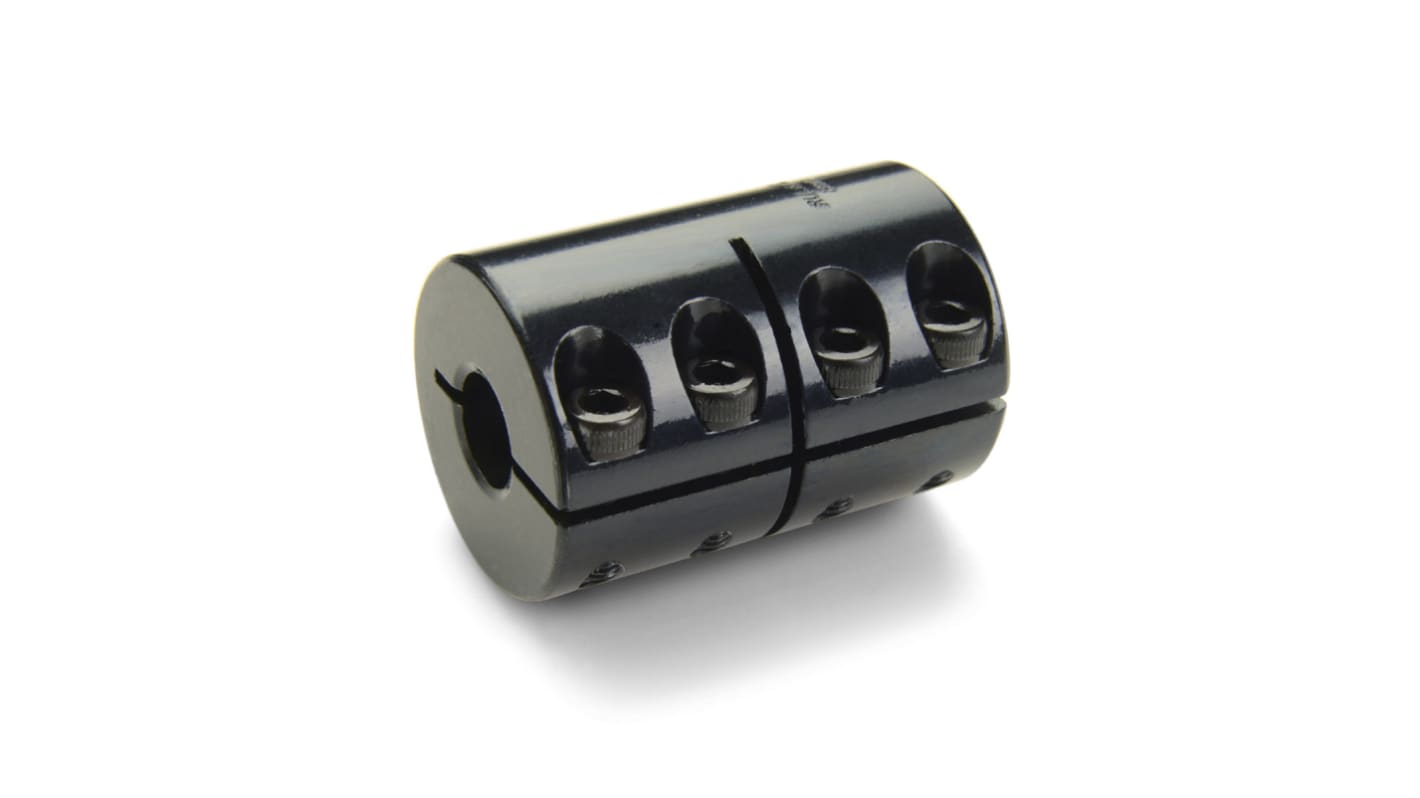

Ruland MCLX-15-15-F Rigid Shaft Coupling, 34 mm OD, Black Oxide Steel, 200 Nm
- RS Stock No.:
- 296-9894
- Mfr. Part No.:
- MCLX-15-15-F
- Brand:
- Ruland
Bulk discount available
Subtotal (1 unit)*
£26.89
(exc. VAT)
£32.27
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 34 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £26.89 |
| 5 - 9 | £25.81 |
| 10 - 24 | £25.27 |
| 25 + | £24.68 |
*price indicative
- RS Stock No.:
- 296-9894
- Mfr. Part No.:
- MCLX-15-15-F
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Rigid Shaft Coupling | |
| One/Two Piece | One Piece | |
| Outside Diameter | 34 mm | |
| Bore Size A | 15mm | |
| Length | 50mm | |
| Bore Size B | 15mm | |
| Maximum Speed | 4000rpm | |
| Material | Black Oxide Steel | |
| Style | Clamp | |
| Keyway | No | |
| Torque Rating | 200Nm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 176°C | |
| Standards/Approvals | REACH, RoHS | |
| Bore Type | Finished with No Keyway | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Rigid Shaft Coupling | ||
One/Two Piece One Piece | ||
Outside Diameter 34 mm | ||
Bore Size A 15mm | ||
Length 50mm | ||
Bore Size B 15mm | ||
Maximum Speed 4000rpm | ||
Material Black Oxide Steel | ||
Style Clamp | ||
Keyway No | ||
Torque Rating 200Nm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 176°C | ||
Standards/Approvals REACH, RoHS | ||
Bore Type Finished with No Keyway | ||
- COO (Country of Origin):
- US
Mild Steel
Does not score the shaft
Precision honed bore
Easy installation and adjustment
Manufactured with corrosion resistant black finish
Note
Only the MCLC series have a keyway.
