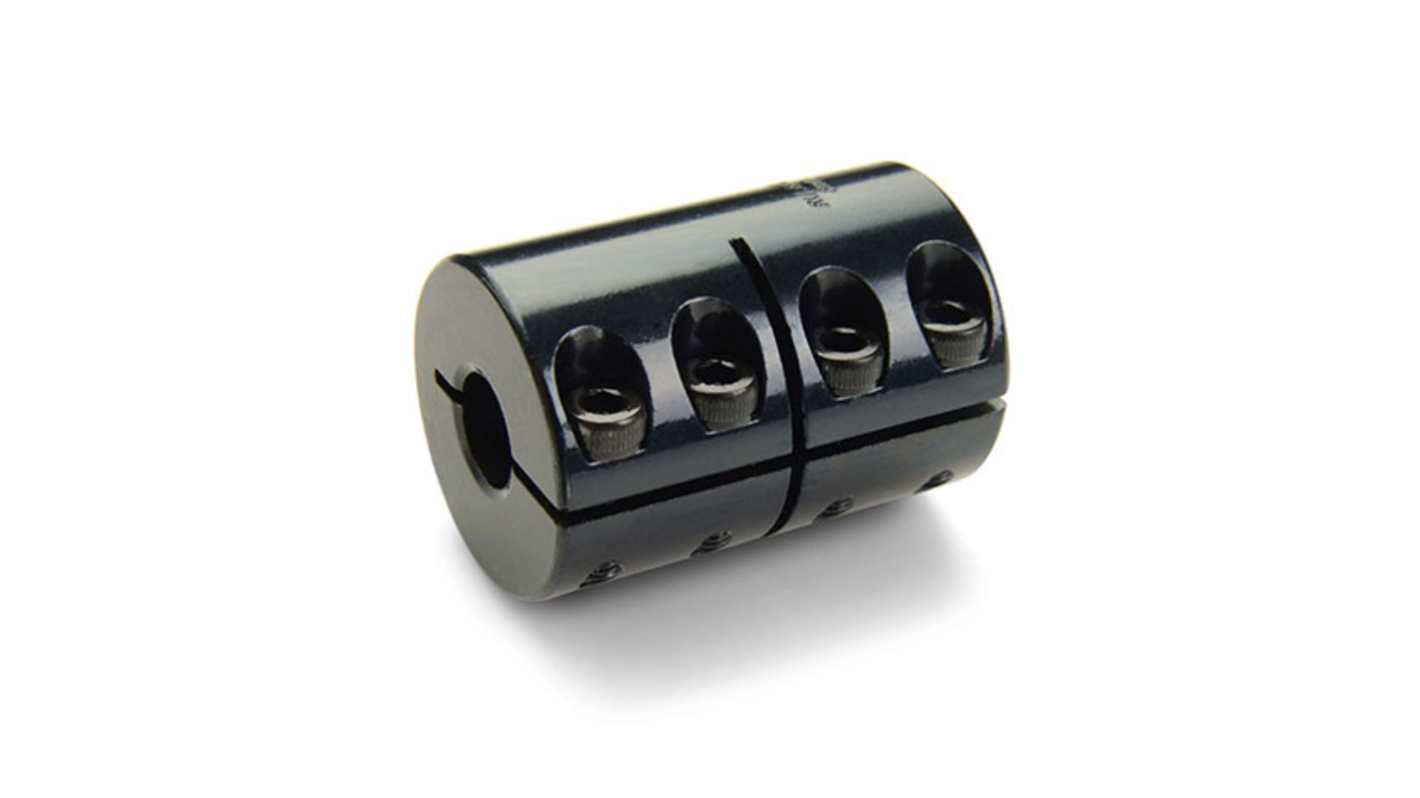

Ruland MCLX-4-4-F Rigid Shaft Coupling, 15 mm OD, 1215 Carbon Steel, 2.51 Nm
- RS Stock No.:
- 593-516
- Mfr. Part No.:
- MCLX-4-4-F
- Brand:
- Ruland
Subtotal (1 unit)*
£32.99
(exc. VAT)
£39.59
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £32.99 |
*price indicative
- RS Stock No.:
- 593-516
- Mfr. Part No.:
- MCLX-4-4-F
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Rigid Shaft Coupling | |
| One/Two Piece | One Piece | |
| Outside Diameter | 15 mm | |
| Bore Size A | 4mm | |
| Length | 22mm | |
| Maximum Speed | 4000rpm | |
| Bore Size B | 4mm | |
| Material | 1215 Carbon Steel | |
| Style | Clamp | |
| Torque Rating | 2.51Nm | |
| Minimum Operating Temperature | -40°F | |
| Maximum Operating Temperature | 350°F | |
| Standards/Approvals | REACH, DIN 91 1.9, RoHS | |
| Bore Type | Precision Honed | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Rigid Shaft Coupling | ||
One/Two Piece One Piece | ||
Outside Diameter 15 mm | ||
Bore Size A 4mm | ||
Length 22mm | ||
Maximum Speed 4000rpm | ||
Bore Size B 4mm | ||
Material 1215 Carbon Steel | ||
Style Clamp | ||
Torque Rating 2.51Nm | ||
Minimum Operating Temperature -40°F | ||
Maximum Operating Temperature 350°F | ||
Standards/Approvals REACH, DIN 91 1.9, RoHS | ||
Bore Type Precision Honed | ||
- COO (Country of Origin):
- US
The Ruland One-piece rigid coupling is expertly designed to provide exceptional precision in aligning shafts. It features dual bores of equal dimensions, ensuring a perfect fit for 4mm shafts. Crafted from lead-free steel with a black oxide finish, this coupling not only enhances aesthetic appeal but also offers outstanding resistance to wear and corrosion. The innovative Nypatch anti-vibration coating on the screws facilitates easy and secure seating, which is crucial for maintaining system stability. The coupling is manufactured in the USA under stringent quality controls, making it ideal for high precision applications in servo mechanisms. It guarantees a reliable performance across a wide temperature range while being compliant with RoHS3 and REACH standards. Elevate your mechanical setup with a product that balances functionality and robust construction seamlessly.
Precision honed bores ensure optimal alignment
Manufactured from durable lead-free carbon steel
Black oxide finish prevents corrosion and enhances longevity
Four screw locations facilitate maximum holding power
Produced in a facility that upholds strict manufacturing standards
