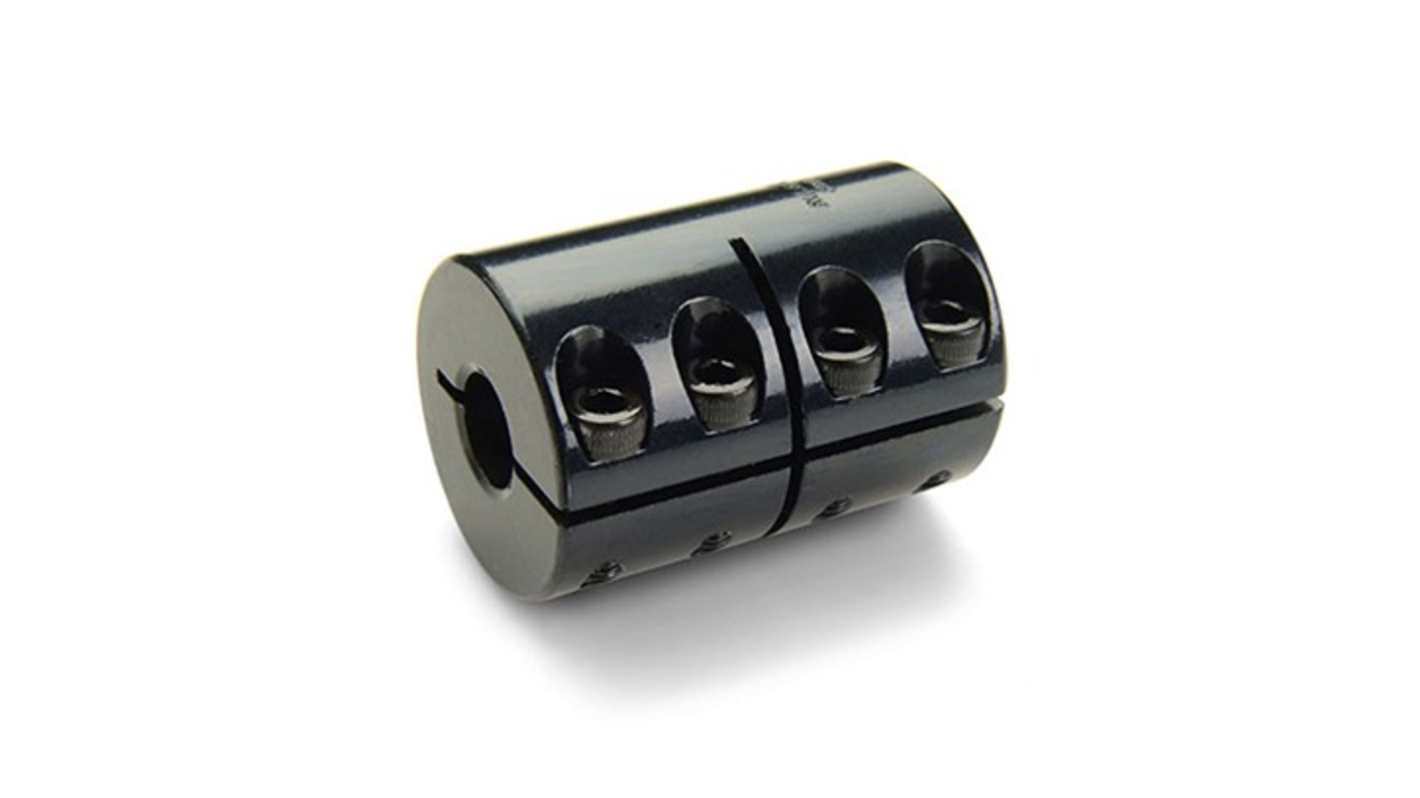

Ruland MCLX-12-8-F Rigid Shaft Coupling, 29 mm OD, 1215 Carbon Steel, 105 Nm
- RS Stock No.:
- 605-317
- Mfr. Part No.:
- MCLX-12-8-F
- Brand:
- Ruland
Subtotal (1 unit)*
£64.22
(exc. VAT)
£77.06
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £64.22 |
*price indicative
- RS Stock No.:
- 605-317
- Mfr. Part No.:
- MCLX-12-8-F
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Rigid Shaft Coupling | |
| Outside Diameter | 29 mm | |
| One/Two Piece | One Piece | |
| Bore Size A | 12mm | |
| Length | 45mm | |
| Maximum Speed | 4000rpm | |
| Bore Size B | 8mm | |
| Material | 1215 Carbon Steel | |
| Style | Clamp | |
| Torque Rating | 105Nm | |
| Minimum Operating Temperature | -40°F | |
| Maximum Operating Temperature | 350°F | |
| Standards/Approvals | RoHs and Reach | |
| Bore Type | Precision Honed | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Rigid Shaft Coupling | ||
Outside Diameter 29 mm | ||
One/Two Piece One Piece | ||
Bore Size A 12mm | ||
Length 45mm | ||
Maximum Speed 4000rpm | ||
Bore Size B 8mm | ||
Material 1215 Carbon Steel | ||
Style Clamp | ||
Torque Rating 105Nm | ||
Minimum Operating Temperature -40°F | ||
Maximum Operating Temperature 350°F | ||
Standards/Approvals RoHs and Reach | ||
Bore Type Precision Honed | ||
The Ruland One piece rigid coupling eliminates the need to treat screws upon receipt greatly reducing installation time. Proprietary Nypatch® anti-vibration coating on hardware allows for even seating of the screw, repeated screw installations, prevents galling, and maintains high holding power.
RoHS3 and REACH compliant
Forged screws test beyond DIN 912 12.9 standards
Machined from solid bar stock that is sourced exclusively from North American mills
made from 1215 lead free steel with a proprietary black oxide finish
