3M 3756 Series Ribbon Cable, Flat, 0.64 mm Pitch, 26, 31 m Length
- RS Stock No.:
- 815-8122
- Mfr. Part No.:
- 3756/26-100'SF
- Brand:
- 3M

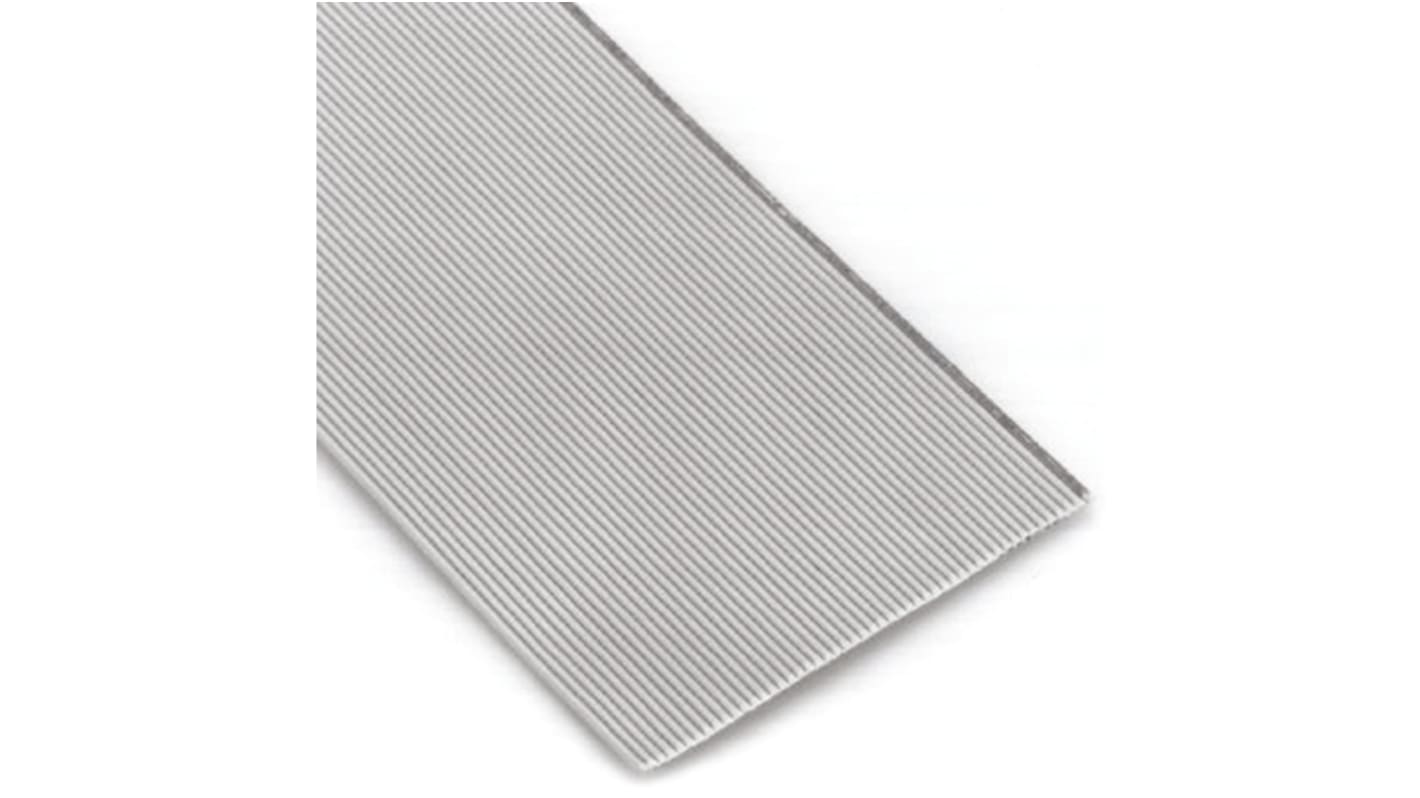

Image representative of range
Subtotal (1 reel of 30 metres)*
£143.00
(exc. VAT)
£171.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £143.00 | £4.767 |
*price indicative
- RS Stock No.:
- 815-8122
- Mfr. Part No.:
- 3756/26-100'SF
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Cable Type | Flat | |
| Product Type | Ribbon Cable | |
| Pitch | 0.64mm | |
| Voltage | 150V | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 30AWG | |
| Number of Conductors | 26 | |
| Jacket Material | Thermoplastic Elastomer | |
| Series | 3756 | |
| Conductor Type | Stranded | |
| Cable Length | 31m | |
| Standards/Approvals | UL | |
| Hi-Flex | No | |
| Jacket Colour | Grey | |
| Fire Behaviour | USA: UL Horizontal, Canada: FT2 | |
| Conductor Material | Tin Plated Copper | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Core Strands | 7 | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Cable Type Flat | ||
Product Type Ribbon Cable | ||
Pitch 0.64mm | ||
Voltage 150V | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 30AWG | ||
Number of Conductors 26 | ||
Jacket Material Thermoplastic Elastomer | ||
Series 3756 | ||
Conductor Type Stranded | ||
Cable Length 31m | ||
Standards/Approvals UL | ||
Hi-Flex No | ||
Jacket Colour Grey | ||
Fire Behaviour USA: UL Horizontal, Canada: FT2 | ||
Conductor Material Tin Plated Copper | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Core Strands 7 | ||
- COO (Country of Origin):
- US
3M TPE 0.635mm Ribbon Cable
From 3M, this ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances. Designed for mass termination and flexibility the TPE ribbon cable uses 30AWG stranded conductors on 0.25 in. wire spacing.
Features and Benefits
• Signal density incresed by 0.25in. wire spacing
• TPE Insulation
• TPE (Thermoplastic Elastomer) Material
Applications
Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;
• Test and Measure
• Computing
• Robotics
Why Choose 3M?
3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.
Ribbon Cable Information
Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.
Standards
UL, RoHS
