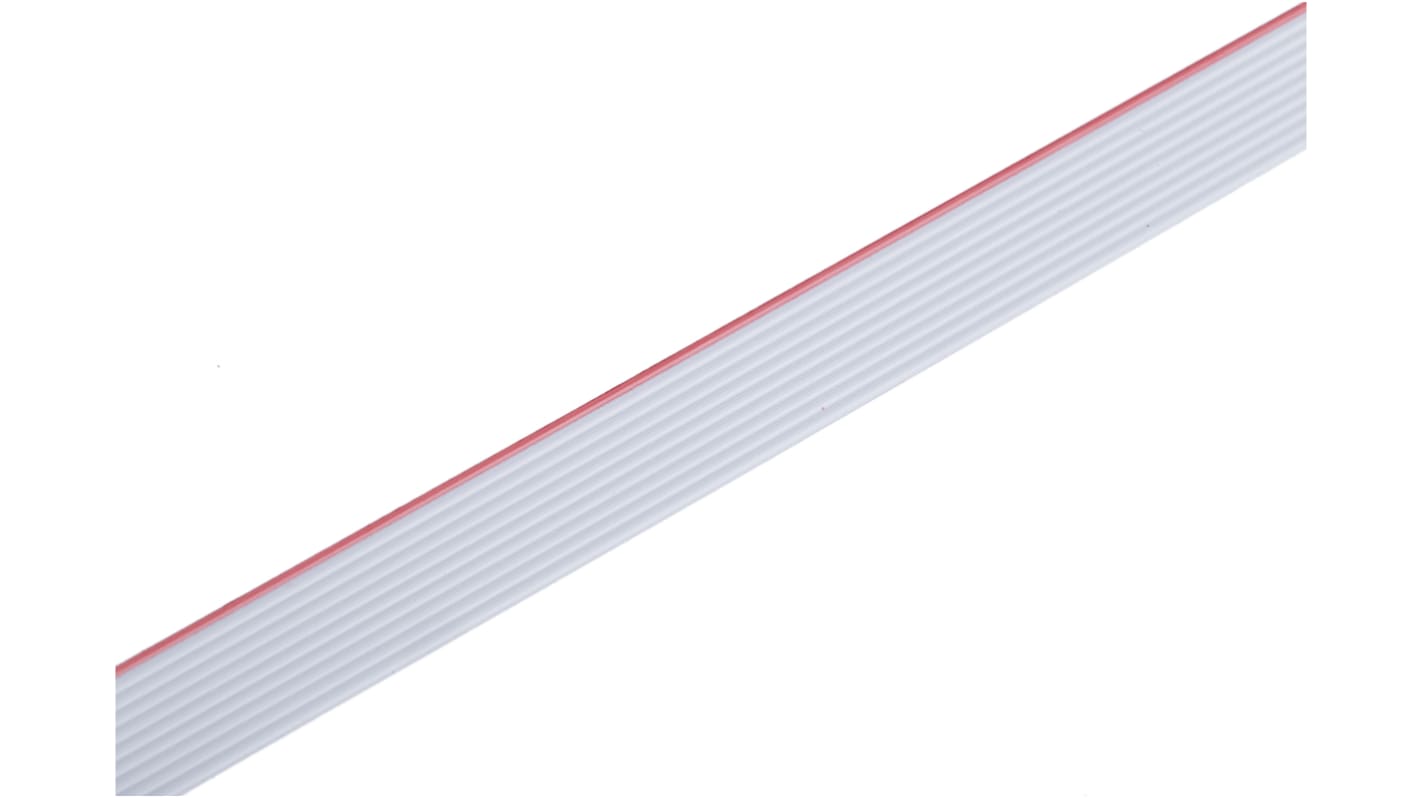

3M 3625 Series Flat Ribbon Cable, 10-Way, 1mm Pitch, 30m Length

View all Ribbon Cable

Subtotal (1 reel of 30 metres)*

£37.04

(exc. VAT)

£44.45

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£37.04£1.235

*price indicative

RS Stock No.:
815-8090
Distrelec Article No.:
304-22-922
Mfr. Part No.:
3625/10-30M
Brand:
3M
Find similar products by selecting one or more attributes.
Select all

Brand

3M

Ribbon Cable Type

Flat

Pitch

1mm

Terminated/Unterminated

Unterminated

Number of Ways

10

Screened/Unscreened

Unscreened

American Wire Gauge

28 AWG

Series

3625

Length

30m

Width

10 mm

Voltage Rating

300 V

Conductor Strand Type

Stranded

Minimum Operating Temperature

-20°C

Number of Strands

7

Sheath Colour

Grey

Maximum Operating Temperature

+105°C

Size of Strands

36 AWG

Operating Temperature Range

-20 → +105 °C

Shielded/Unshielded

Unshielded

Capacitance

54.5pF/m

Standards Met

RoHS Compliant, UL

Core Strands

7/36

Characteristic Impedance

89 Ω

COO (Country of Origin):
US

3M 1 mm pitch ribbon cables - 3625 type


From 3M, this 3625 flat ribbon cables has a stranded round conductor with 1 mm wire spacing. The stranded wire of the conductor provides flexibility and extended product life. This ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Features and Benefits


• Flexible
• Space saving
• Robust

Applications


Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?


3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Approvals

  UL and CSA

3M Ribbon Cable, 10mm Width, Stranded Conductor Type - 3625 Series - 3625/10-30M


When flexibility is a top priority, roll out this ribbon cable from 3M. Designed for mass termination to metric connectors, it provides a solid cabling solution for electronic devices. A robust PVC jacket shrugs off scrapes and cuts to ensure an extended service life. The cable's ultra-thin, flat shape and 1mm pitch between wires make it a compact choice for use where space is limited. As the strands are zippable, you can conveniently branch the cable or use it for discrete termination.

Features & Benefits


• Halogen-free construction means it won't give off toxic fumes when heated
• 30m length gives enough cable for lots of jobs
• 10 conductors for connection to multiple electronic components

Applications


• Small appliance manufacturing
• Computer hard drives
• Digital audio equipment

What type of temperatures can I use this ribbon cable in?


It does its job reliably in environments with a broad operating temperature range between -20°C and +105°C.


Ribbon Cable Information


Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment.
