Molex 15039 Series FFC Ribbon Cable, 18-Way, 1mm Pitch, 152mm Length
- RS Stock No.:
- 219-3504
- Mfr. Part No.:
- 150390343
- Brand:
- Molex
Bulk discount available
Subtotal (1 box of 250 units)*
£436.00
(exc. VAT)
£523.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
| Units | Per unit | Per Box* |
|---|---|---|
| 250 - 750 | £1.744 | £436.00 |
| 1000 + | £1.657 | £414.25 |
*price indicative
- RS Stock No.:
- 219-3504
- Mfr. Part No.:
- 150390343
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
| Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Ribbon Cable Type | FFC | |
| Pitch | 1mm | |
| Terminated/Unterminated | Unterminated | |
| Number of Ways | 18 | |
| Series | 15039 | |
| Length | 152mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Voltage Rating | 60 V ac | |
| Current Rating | 1.2 A | |
| Standards Met | IEC 61249-2-21 | |
| Operating Temperature Range | -40 → +105 °C | |
| Select all | ||
|---|---|---|
| Brand Molex | ||
| Ribbon Cable Type FFC | ||
| Pitch 1mm | ||
| Terminated/Unterminated Unterminated | ||
| Number of Ways 18 | ||
| Series 15039 | ||
| Length 152mm | ||
| Maximum Operating Temperature +105°C | ||
| Minimum Operating Temperature -40°C | ||
| Voltage Rating 60 V ac | ||
| Current Rating 1.2 A | ||
| Standards Met IEC 61249-2-21 | ||
| Operating Temperature Range -40 → +105 °C | ||
- COO (Country of Origin):
- CN

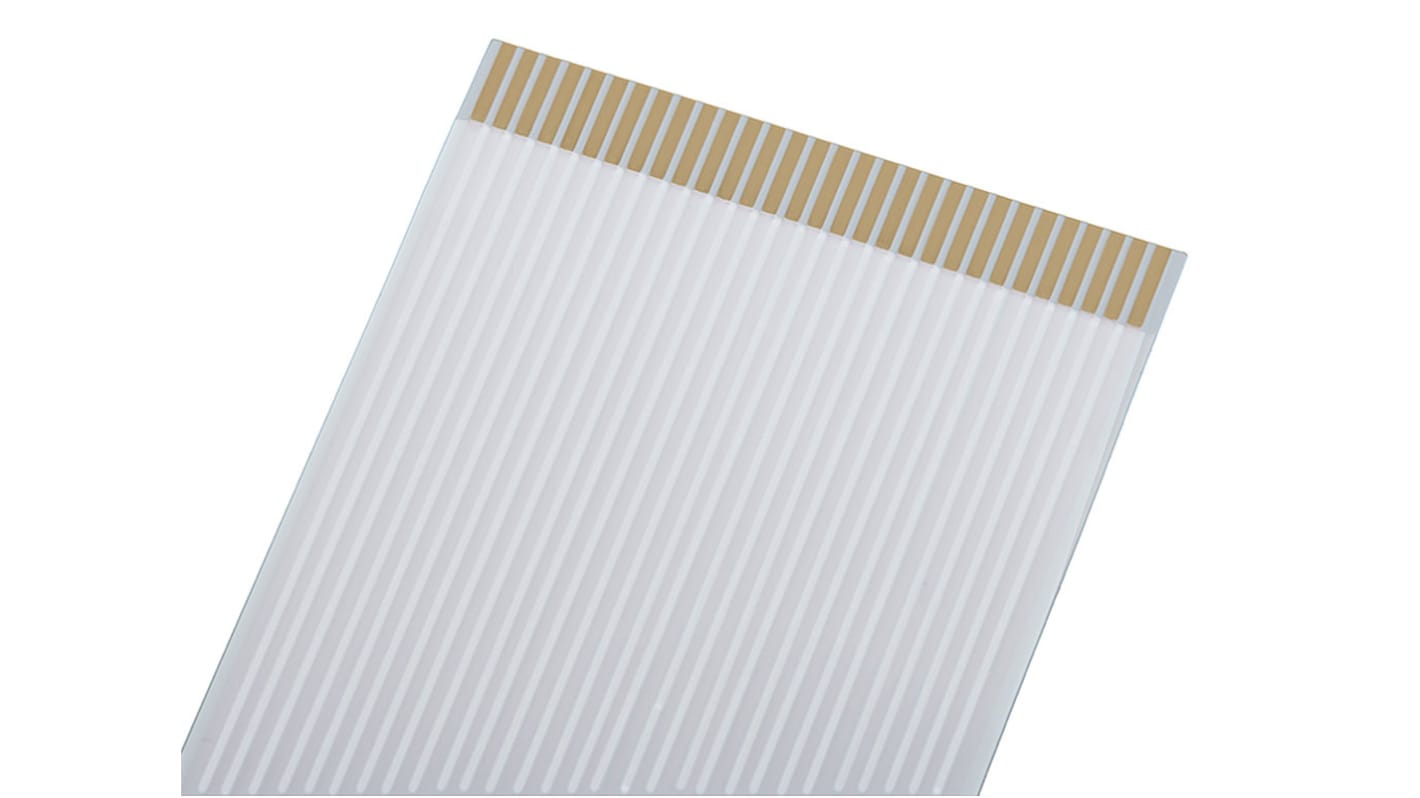

Molex Ribbon Cable, Same-Side Contact Configuration, 152mm Length - 15039 Series - 150390343
Add extra peripherals to your PCB with this ribbon cable from Molex. It's a flat type with 18 side-by-side copper cores that reliably transfer signals from A to B. As the jacket is highly flexible, slotting it into compact or complex arrangements are no problem. All of the contacts are arranged on the same side to make connections hassle-free. The cable handles 60V AC voltage rating and each contact has a 1.2A rating, making this a handy choice for lower-power systems.
Features & Benefits
• 152mm length for easy short-range connections without clutter
• Insulating polyester sheath ensures safe handling
• Gold-plated contacts resist corrosion to deliver long-term performance in demanding settings
• Insulating polyester sheath ensures safe handling
• Gold-plated contacts resist corrosion to deliver long-term performance in demanding settings
Applications
• Automotive industry
• Consumer electronics
• Process control
• Data centres
• Consumer electronics
• Process control
• Data centres
Why should I connect my components with a ribbon cable?
A ribbon cable like this closes many circuits in one go, helping you whizz through fiddly wiring tasks.
