Molex 15039 Series FFC Ribbon Cable, 4-Way, 1mm Pitch, 152mm Length
- RS Stock No.:
- 219-3534
- Mfr. Part No.:
- 150390711
- Brand:
- Molex
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 219-3534
- Mfr. Part No.:
- 150390711
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Ribbon Cable Type | FFC | |
| Pitch | 1mm | |
| Terminated/Unterminated | Unterminated | |
| Number of Ways | 4 | |
| Series | 15039 | |
| Length | 152mm | |
| Voltage Rating | 60 V ac | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Operating Temperature Range | -40 → +105 °C | |
| Standards Met | IEC 61249-2-21 | |
| Current Rating | 1.2 A | |
Select all | ||
|---|---|---|
Brand Molex | ||
Ribbon Cable Type FFC | ||
Pitch 1mm | ||
Terminated/Unterminated Unterminated | ||
Number of Ways 4 | ||
Series 15039 | ||
Length 152mm | ||
Voltage Rating 60 V ac | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Operating Temperature Range -40 → +105 °C | ||
Standards Met IEC 61249-2-21 | ||
Current Rating 1.2 A | ||
- COO (Country of Origin):
- CN

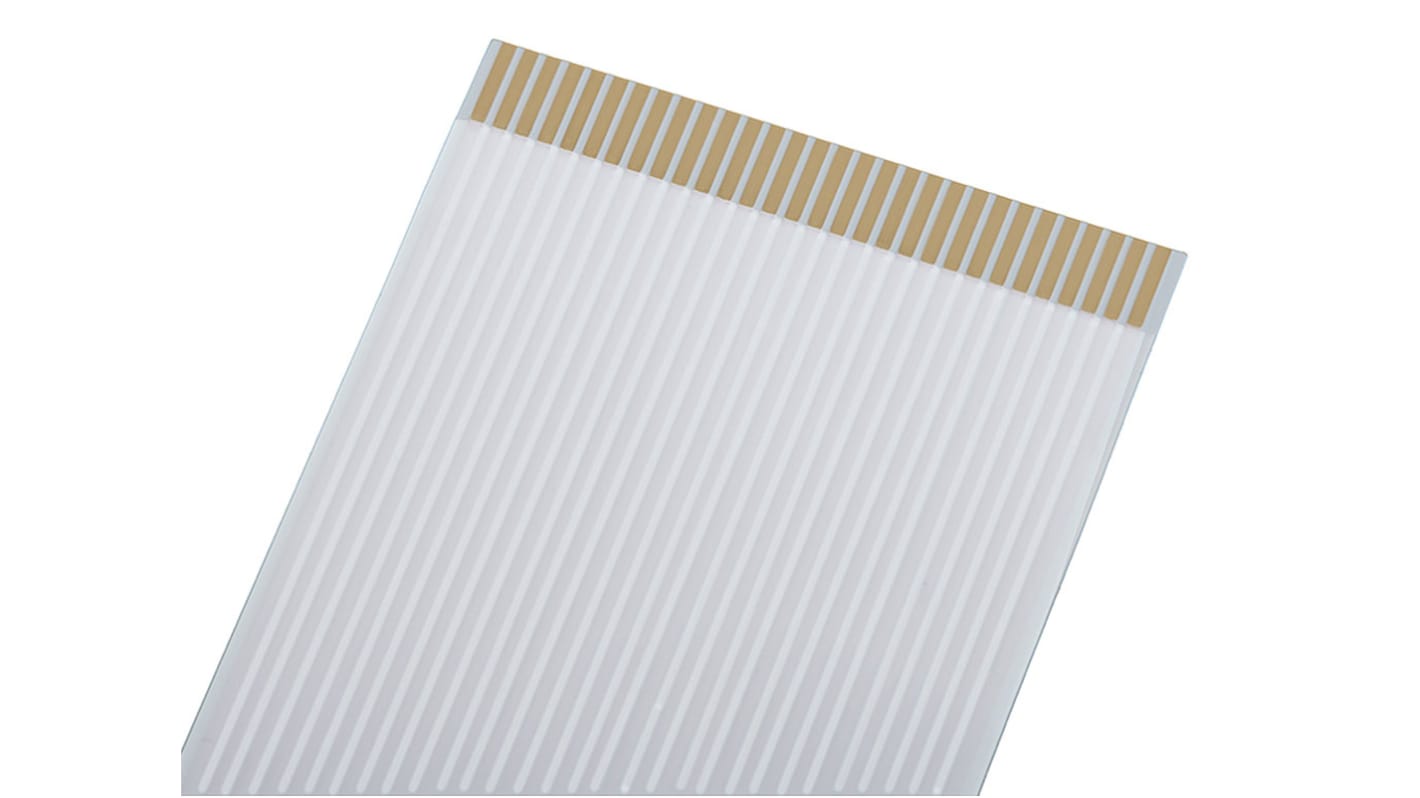

The Molex premo-flex cable jumper offers flexibility and performance for reliable board to board connection. It has 152 mm length and 04 circuits. Premo-flex flat-flexible cable (FFC) jumpers offer an extensive range of custom and off-the-shelf options these options enable designers to maximize PCB space, reduce component costs.
Polyester insulation
Simple assembly process
Meets industry standard requirements
Simple assembly process
Meets industry standard requirements
