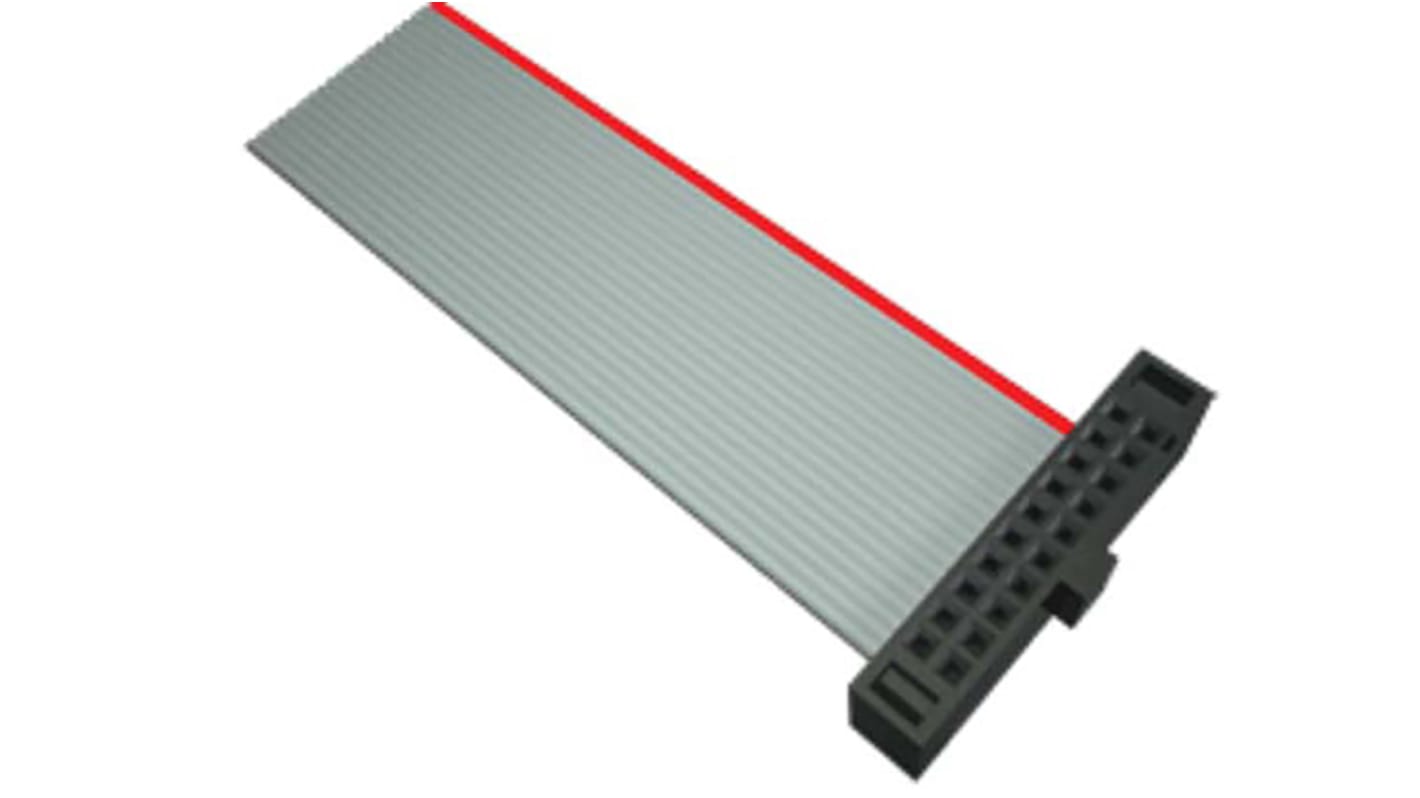

Samtec FFSD Series Ribbon Cable, Flat IDC Wire, 1.27 mm Pitch, 24, 152.4 mm Length
- RS Stock No.:
- 197-6639
- Mfr. Part No.:
- FFSD-12-D-06.00-01-N
- Brand:
- Samtec
Get a bulk buy discount
Add 5 more to save £2.60
View bulk pricing optionsSubtotal (1 unit)*
£11.88
(exc. VAT)
£14.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 23 November 2026
- Plus 34 unit(s) shipping from 01 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Saving |
|---|---|---|
| 1 - 4 | £11.88 | - |
| 5 - 24 | £11.36 | £2.60 |
| 25 - 49 | £11.03 | £21.25 |
| 50 + | £10.72 | £58.00 |
*price indicative
- RS Stock No.:
- 197-6639
- Mfr. Part No.:
- FFSD-12-D-06.00-01-N
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Cable Type | Flat IDC Wire | |
| Product Type | Ribbon Cable | |
| Pitch | 1.27mm | |
| Number of Conductors | 24 | |
| American Wire Gauge | 30AWG | |
| Jacket Material | Polybutylene Terephthalate | |
| Series | FFSD | |
| Cable Length | 152.4mm | |
| Standards/Approvals | RoHS | |
| Jacket Colour | Red | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Cable Type Flat IDC Wire | ||
Product Type Ribbon Cable | ||
Pitch 1.27mm | ||
Number of Conductors 24 | ||
American Wire Gauge 30AWG | ||
Jacket Material Polybutylene Terephthalate | ||
Series FFSD | ||
Cable Length 152.4mm | ||
Standards/Approvals RoHS | ||
Jacket Colour Red | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
The Samtec FFSD series tiger eye IDC ribbon cable assembly with double end. It has BeCu as contact material and PBT as insulator material.
Current rating 2.3A per pin
Operating Temperature Range -40°C to +105°C
RoHS compliant
Lead free solderable
