Samtec FJH Series Ribbon Cable, Flat Flex Cable, 0.5 mm Pitch, 20
- RS Stock No.:
- 196-9974
- Mfr. Part No.:
- FJH-20-D-12.00-4
- Brand:
- Samtec
Subtotal (1 unit)*
£5.23
(exc. VAT)
£6.28
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
- Plus 10 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.23 |
*price indicative
- RS Stock No.:
- 196-9974
- Mfr. Part No.:
- FJH-20-D-12.00-4
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Cable Type | Flat Flex Cable | |
| Product Type | Ribbon Cable | |
| Pitch | 0.5mm | |
| Voltage | 60V | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 30AWG | |
| Number of Conductors | 20 | |
| Series | FJH | |
| Conductor Type | Stranded | |
| Standards/Approvals | RoHS | |
| Hi-Flex | Yes | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Tin Plated Copper | |
| Minimum Operating Temperature | 30°C | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Cable Type Flat Flex Cable | ||
Product Type Ribbon Cable | ||
Pitch 0.5mm | ||
Voltage 60V | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 30AWG | ||
Number of Conductors 20 | ||
Series FJH | ||
Conductor Type Stranded | ||
Standards/Approvals RoHS | ||
Hi-Flex Yes | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Tin Plated Copper | ||
Minimum Operating Temperature 30°C | ||

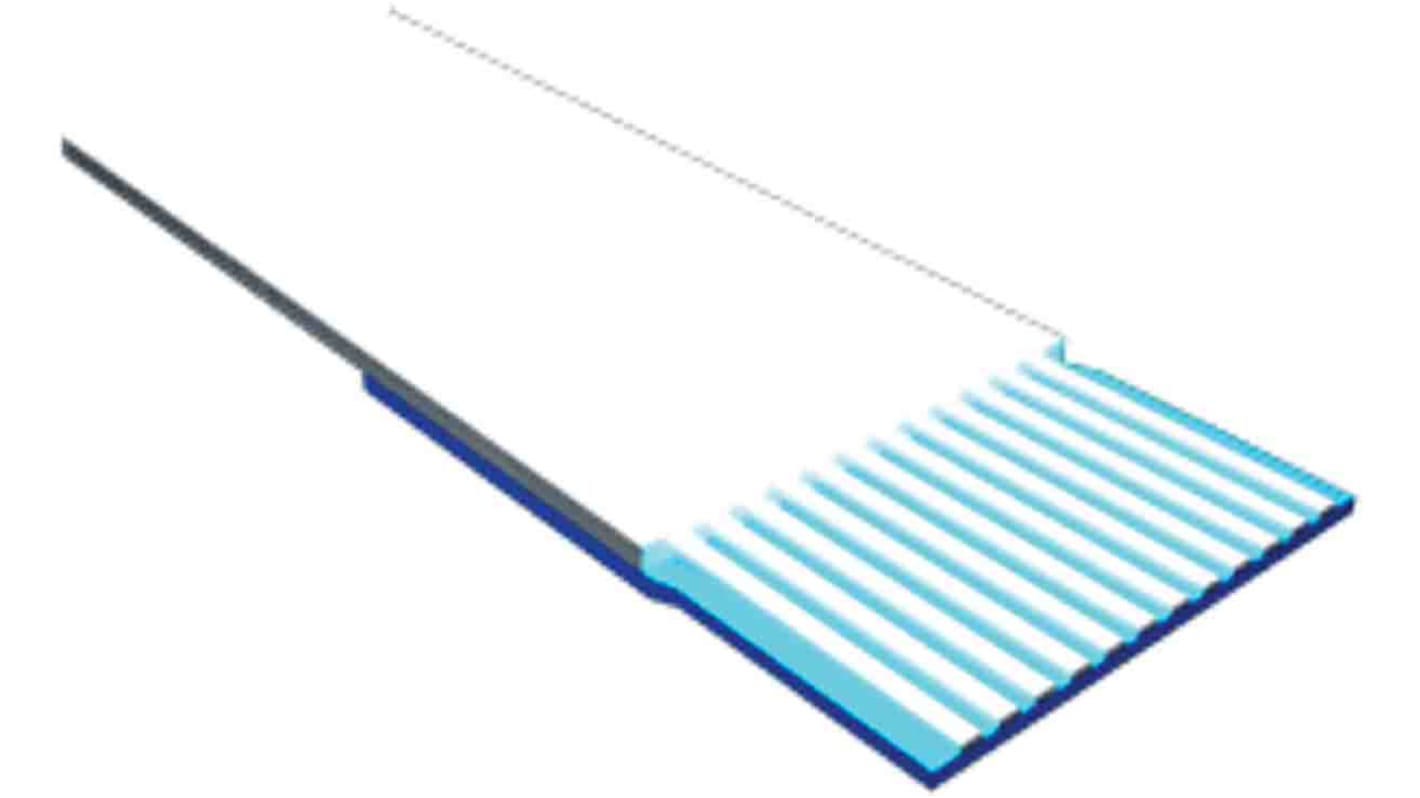

The Samtec FJH-20-D-12.00-4 is a FJH series flay flexible cable jumper. It can be easily modified for custom pin counts and lengths. Also it has mating standard and ZIF connectors.
Conductor is tin plated copper
Conductor resistance is 1000W/km max
Temperature rating is -30°C to +80°C
