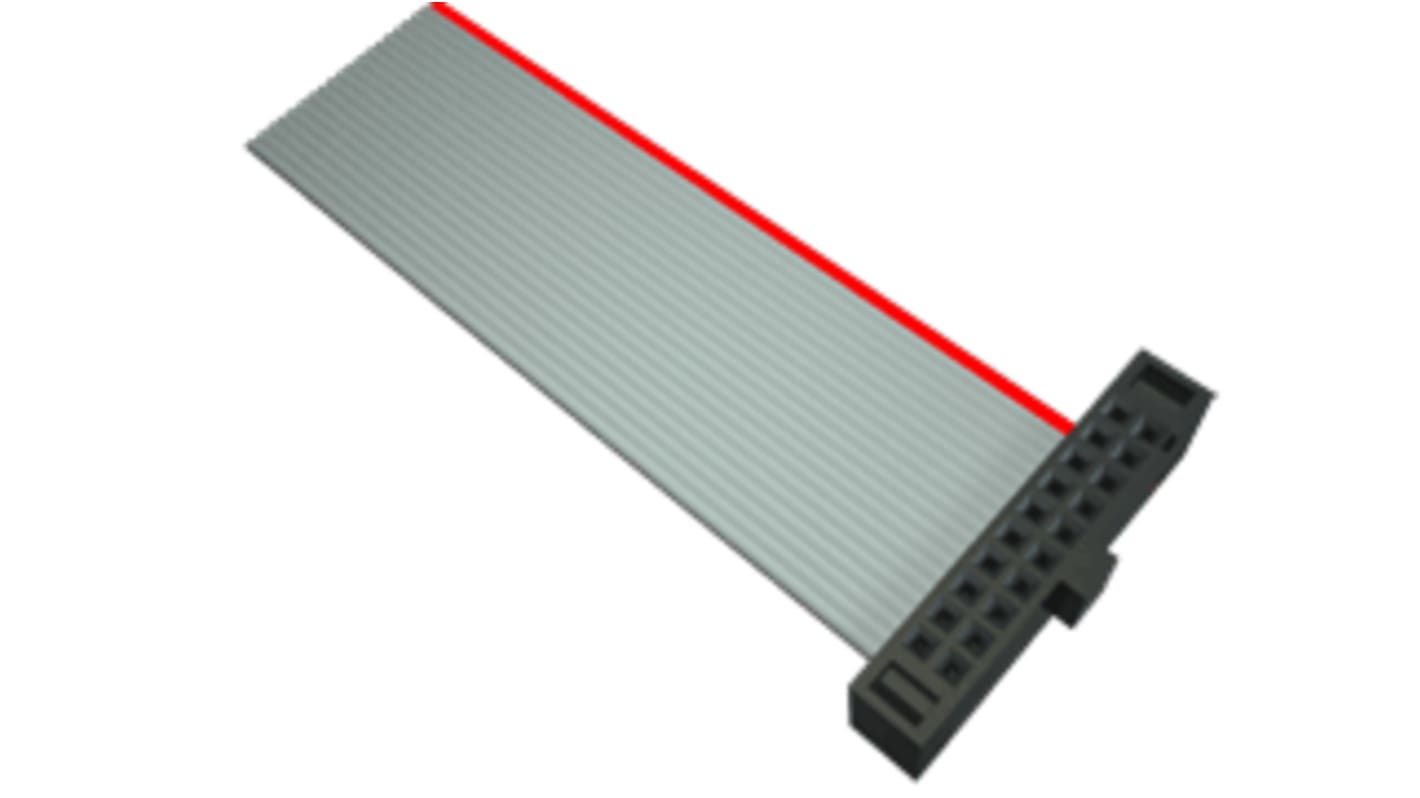

Samtec FFSD Series Flat Ribbon Cable, 10-Way, 18in Length, Tiger Eye IDC to Tiger Eye IDC
- RS Stock No.:
- 196-6750
- Mfr. Part No.:
- FFSD-05-D-18.00-01-N
- Brand:
- Samtec
5 In stock - FREE next working day delivery available
Price Each
£10.25
(exc. VAT)
£12.30
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 9 | £10.25 |
| 10 - 24 | £9.65 |
| 25 - 49 | £9.37 |
| 50 - 99 | £8.74 |
| 100 + | £8.44 |
- RS Stock No.:
- 196-6750
- Mfr. Part No.:
- FFSD-05-D-18.00-01-N
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
The Samtec FFSD series cable features an exceptionally low profile design with a multi-finger, BeCu contact system for high reliability and high cycle applications.
Insulator material made up of PBT
Wire support of 30 AWG
Current Rating of 2.3A per pin
Operating Temperature Range -40°C to +105°C
Wire support of 30 AWG
Current Rating of 2.3A per pin
Operating Temperature Range -40°C to +105°C
Specifications
Attribute | Value |
|---|---|
| Connector 1 | Tiger Eye IDC |
| Ribbon Cable Type | Flat |
| Connector 2 | Tiger Eye IDC |
| Number of Ways | 10 |
| Series | FFSD |
| Length | 18in |
| Sheath Colour | Grey |
