3M 1.27 mm pitch ribbon cable - 3319 type

From 3M, this 3319 ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances. The ribbon cable with 1.27 mm pitch, designed for use with HE10 connections (2.54 mm pitch).

Features and Benefits

• 28 AWG multi-strand conductors
• Zippable
• Flexible

Applications

Ribbon cabling is frequently used in computing and in communication applications. They are often used internally in electronic appliances, and are often used in hard drive wiring. Although they are limited to straight-run installations, they have advantages in that they can provide space efficient solutions to high data transmission. Ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Approvals

UL VW-1

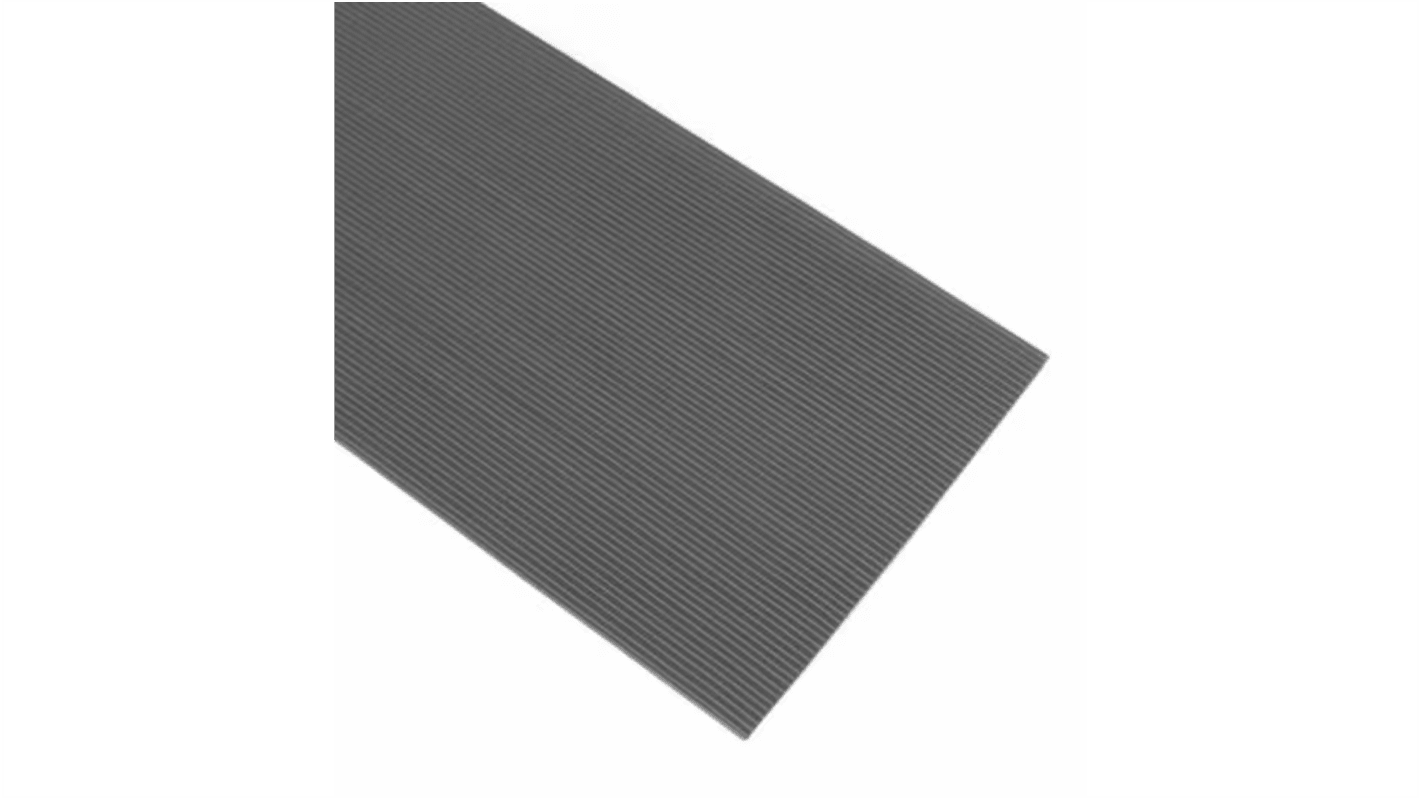

3M 3319 Series Ribbon Cable, 30m Length, 40 Ways - 3319/40

This ribbon cable is a flat, unscreened type, featuring 40 ways and a pitch of 1.27 mm. It comprises stranded conductors with a core configuration of 19 strands, each measuring 0.79 mm. With a length of 30m and a width of 50.8mm, this high-temperature ribbon cable operates efficiently across a temperature range of -20°C to +105°C.

Features & Benefits

• Suitable for various electronic connections with a 300V rating
• Unterminated design allows for flexible usage in custom applications
• Stranded construction enhances flexibility and ease of installation
• Designed for high temperatures, accommodating a broad operating range
• Low capacitance values promote signal integrity in unbalanced and balanced configurations
• Compliant with China ROHS, ensuring safety and environmental accountability

Applications

• Ideal for connecting electronic components in automation setups
• Utilised in wiring for mechanical systems requiring flexibility
• Appropriate for use in custom electrical configurations and prototypes
• Well-suited for internal connections within electronic devices

How does the temperature rating affect its performance in different environments?

The operating temperature range of -20°C to +105°C allows it to function efficiently in various conditions, making it suitable for both indoor and outdoor applications. This versatility means it can handle heat generated by machinery or cool environments without compromising signal integrity.

What is the significance of the cable's stranded design?

The stranded design contributes to increased flexibility, allowing for easy routing in tight spaces and minimising the risk of breakage. This is particularly useful in applications where movement or vibration is present.

Can this cable be used for high-frequency applications?

Yes, the low capacitance values of 44.62 pF/m for unbalanced and 25.91 pF/m for balanced configurations enable effective performance in high-frequency applications, maintaining signal integrity over longer distances.

High Flex

Approvals

UL recognised

Select all	Attribute	Value
	Brand	3M
	Ribbon Cable Type	Flat
	Pitch	1.27mm
	Terminated/Unterminated	Unterminated
	Number of Ways	40
	Screened/Unscreened	Unscreened
	American Wire Gauge	28 AWG
	Series	3319
	Length	30m
	Width	50.8 mm
	Voltage Rating	300 V
	Maximum Operating Temperature	+105°C
	Sheath Colour	Black
	Conductor Strand Type	Stranded
	Number of Strands	19
	Minimum Operating Temperature	-20°C
	Capacitance	44.608pF/m
	Standards Met	China ROHS
	Characteristic Impedance	103 O (Unbalanced), 171 O(Balanced)
	Core Strands	19/0.079 mm
	Operating Temperature Range	-20 → +105 °C
	Size of Strands	0.79 mm

	Select all
	Brand 3M
	Ribbon Cable Type Flat
	Pitch 1.27mm
	Terminated/Unterminated Unterminated
	Number of Ways 40
	Screened/Unscreened Unscreened
	American Wire Gauge 28 AWG
	Series 3319
	Length 30m
	Width 50.8 mm
	Voltage Rating 300 V
	Maximum Operating Temperature +105°C
	Sheath Colour Black
	Conductor Strand Type Stranded
	Number of Strands 19
	Minimum Operating Temperature -20°C
	Capacitance 44.608pF/m
	Standards Met China ROHS
	Characteristic Impedance 103 O (Unbalanced), 171 O(Balanced)
	Core Strands 19/0.079 mm
	Operating Temperature Range -20 → +105 °C
	Size of Strands 0.79 mm

3M 3319 Series Flat Ribbon Cable, 40-Way, 1.27mm Pitch, 30m Length

3M 1.27 mm pitch ribbon cable - 3319 type

Features and Benefits

Applications

Why Choose 3M?

Approvals

3M 3319 Series Ribbon Cable, 30m Length, 40 Ways - 3319/40

Features & Benefits

Applications

How does the temperature rating affect its performance in different environments?

What is the significance of the cable's stranded design?

Can this cable be used for high-frequency applications?

Approvals
