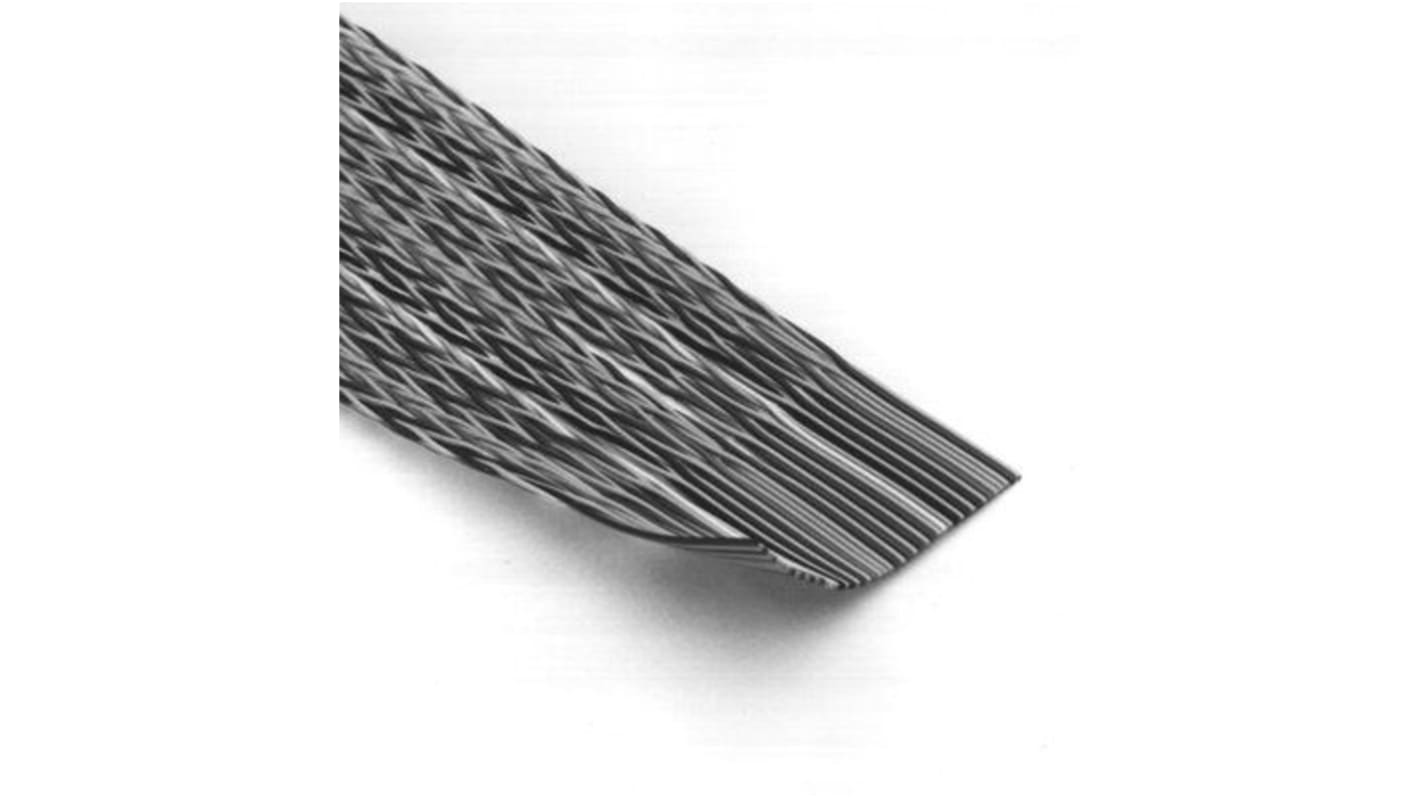

3M Twisted Ribbon Cable, 14-Way, 1.27mm Pitch, 30m Length
- RS Stock No.:
- 190-2048
- Mfr. Part No.:
- 1700-14
- Brand:
- 3M
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 190-2048
- Mfr. Part No.:
- 1700-14
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | 3M | |
Ribbon Cable Type | Twisted | |
Pitch | 1.27mm | |
Terminated/Unterminated | Unterminated | |
Number of Ways | 14 | |
Screened/Unscreened | Unscreened | |
American Wire Gauge | 28 AWG | |
Length | 30m | |
Width | 17.8 mm | |
Conductor Strand Type | Stranded | |
Voltage Rating | 300 V | |
Number of Strands | 7 | |
Sheath Colour | Multicoloured | |
Characteristic Impedance | 122 Ω | |
Core Strands | 7/36 | |
Size of Strands | 36 AWG | |
Capacitance | 52.2pF/m | |
Select all | ||
---|---|---|
Brand 3M | ||
Ribbon Cable Type Twisted | ||
Pitch 1.27mm | ||
Terminated/Unterminated Unterminated | ||
Number of Ways 14 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28 AWG | ||
Length 30m | ||
Width 17.8 mm | ||
Conductor Strand Type Stranded | ||
Voltage Rating 300 V | ||
Number of Strands 7 | ||
Sheath Colour Multicoloured | ||
Characteristic Impedance 122 Ω | ||
Core Strands 7/36 | ||
Size of Strands 36 AWG | ||
Capacitance 52.2pF/m | ||
3M Twisted pair welded 1.27 mm pitch cables - 1700 type
From 3M, this 1700 ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.
Features and Benefits
Multi-strand twisted pair welded flat cables with flat sections
Flexible
Robust
Flexible
Robust
Applications
Ribbon cabling is frequently used in computing and in communication applications. They are often used for external wiring in electronic appliances. Round ribbon cabling is often used in;
Test and Measure
Computing
Robotics
Test and Measure
Computing
Robotics
Why Choose 3M?
3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.
Approvals
UL 20462
Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment. Colour coded ribbon cable with alternate twisted pair and parallel conductor sections. Twisting of adjacent conductors reduces crosstalk whilst the flat sections at regular intervals still facilitate easy termination.
