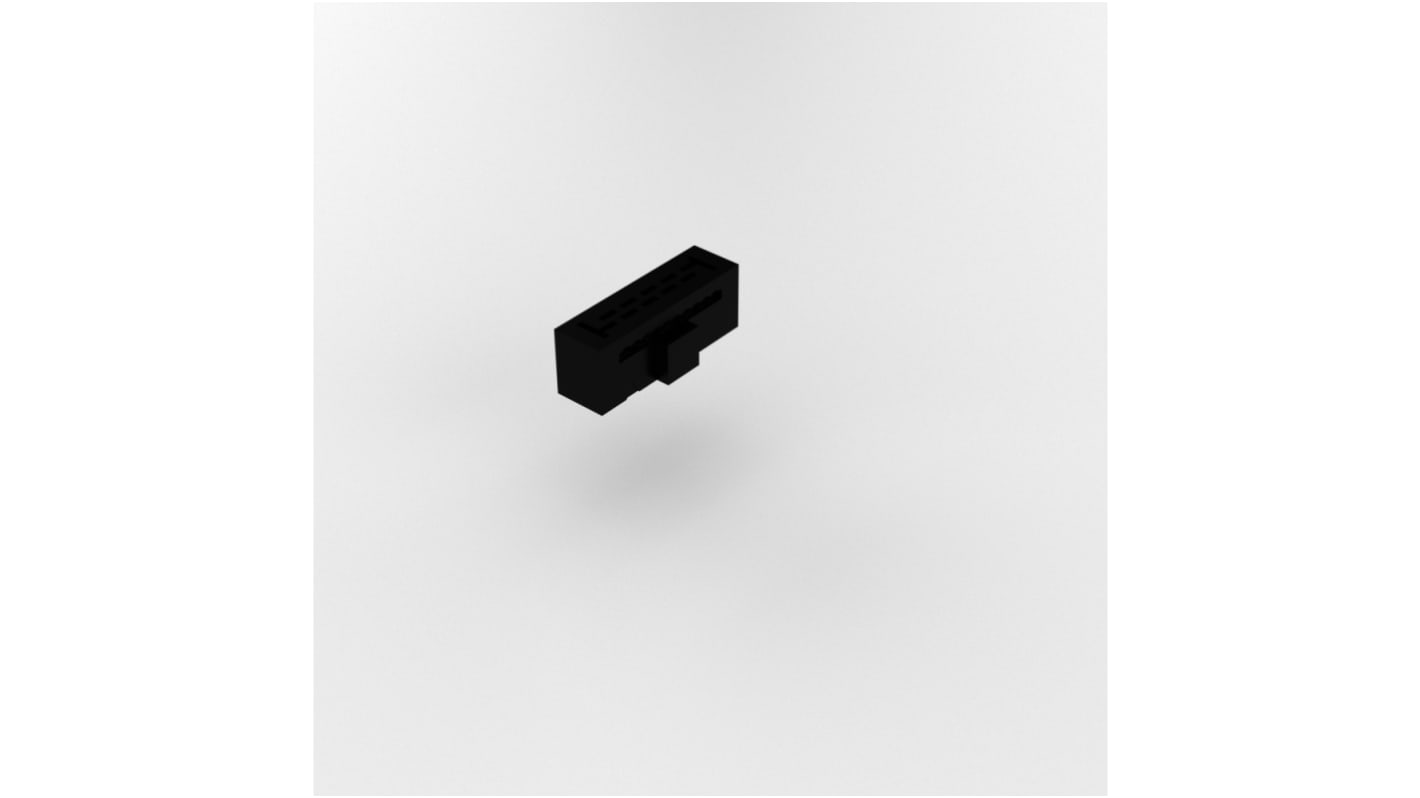

Samtec TCSD Series Flat IDC Socket, 2mm Pitch, Tiger Eye IDC to Tiger Eye IDC
- RS Stock No.:
- 180-4595
- Mfr. Part No.:
- TCSD-05-01-N
- Brand:
- Samtec
Subtotal (1 tube of 41 units)*
£188.928
(exc. VAT)
£226.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 82 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
41 + | £4.608 | £188.93 |
*price indicative
- RS Stock No.:
- 180-4595
- Mfr. Part No.:
- TCSD-05-01-N
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Samtec | |
Ribbon Cable Type | Flat | |
Connector 1 | Tiger Eye IDC | |
Pitch | 2mm | |
Connector 2 | Tiger Eye IDC | |
Connector 1 Gender | Female | |
Terminated/Unterminated | Terminated | |
Connector 2 Gender | Female | |
American Wire Gauge | 28 AWG | |
Series | TCSD | |
Operating Temperature Range | -40 → +105 °C | |
Standards Met | RoHS Compliant | |
Size of Strands | 28 AWG | |
Current Rating | 2.8 A | |
Select all | ||
---|---|---|
Brand Samtec | ||
Ribbon Cable Type Flat | ||
Connector 1 Tiger Eye IDC | ||
Pitch 2mm | ||
Connector 2 Tiger Eye IDC | ||
Connector 1 Gender Female | ||
Terminated/Unterminated Terminated | ||
Connector 2 Gender Female | ||
American Wire Gauge 28 AWG | ||
Series TCSD | ||
Operating Temperature Range -40 → +105 °C | ||
Standards Met RoHS Compliant | ||
Size of Strands 28 AWG | ||
Current Rating 2.8 A | ||
2.00 mm (.0787") pitch
High-reliability Tiger Eye™ contacts
All common pin counts from 3 to 25
Optional strain relief
Wide variety of wiring options including reverses, daisy chains, etc.
Mating shrouded terminal strips and ejector header
High-reliability Tiger Eye™ contacts
All common pin counts from 3 to 25
Optional strain relief
Wide variety of wiring options including reverses, daisy chains, etc.
Mating shrouded terminal strips and ejector header
