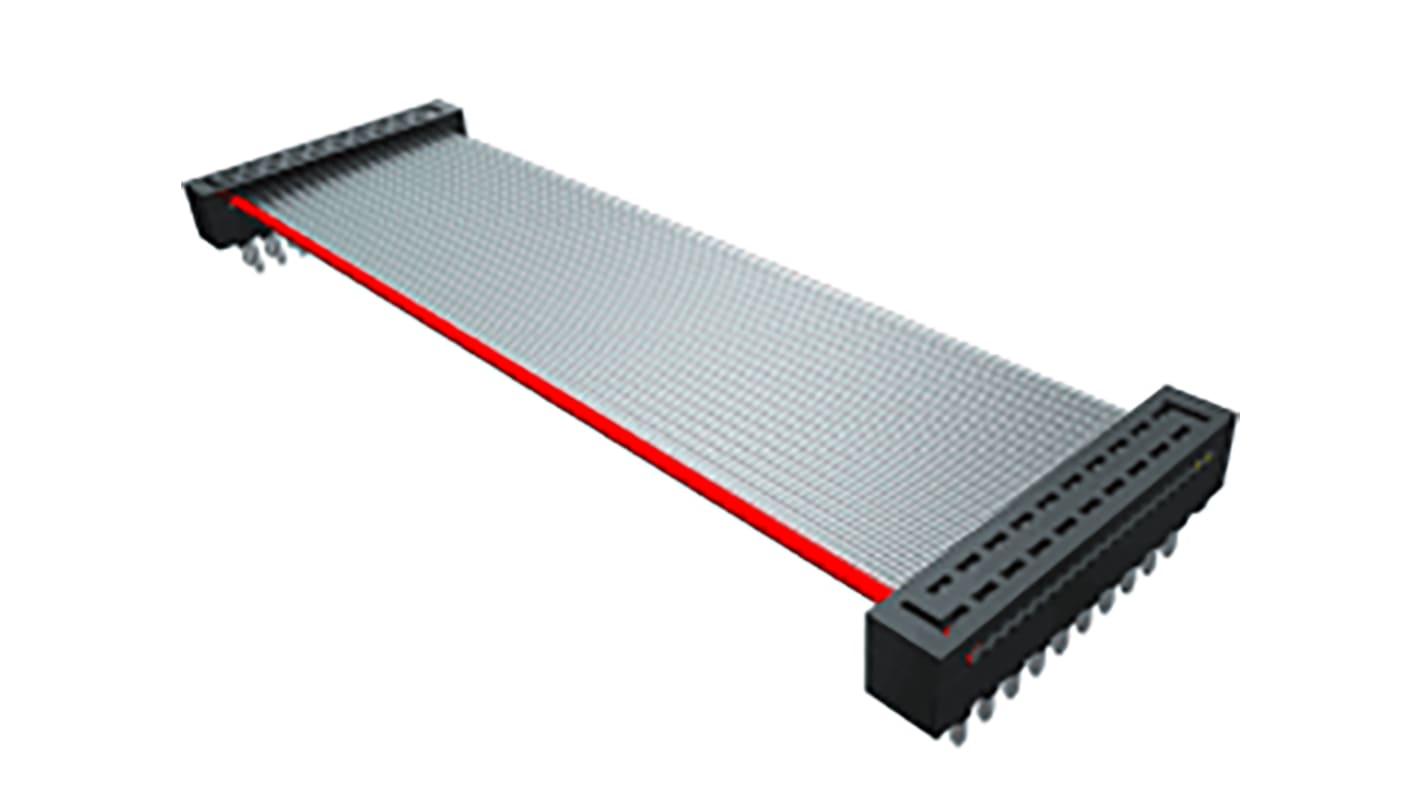

Samtec TCMD Series Ribbon Cable, IDC Socket, 2 mm Pitch, 5, 50.8 mm Length
- RS Stock No.:
- 180-0100
- Mfr. Part No.:
- TCMD-05-T-12.00-01-N
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£8.55
(exc. VAT)
£10.26
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 3 unit(s) shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £8.55 |
| 25 - 99 | £8.03 |
| 100 - 249 | £7.56 |
| 250 - 499 | £7.15 |
| 500 + | £6.78 |
*price indicative
- RS Stock No.:
- 180-0100
- Mfr. Part No.:
- TCMD-05-T-12.00-01-N
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | Ribbon Cable | |
| Cable Type | IDC Socket | |
| Pitch | 2mm | |
| Number of Conductors | 5 | |
| American Wire Gauge | 28AWG | |
| Series | TCMD | |
| Jacket Material | Polyvinyl Chloride | |
| Conductor Type | Stranded | |
| Cable Length | 50.8mm | |
| Standards/Approvals | RoHS Compliant | |
| Jacket Colour | Grey | |
| Conductor Material | Copper | |
| Core Strands | 7 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type Ribbon Cable | ||
Cable Type IDC Socket | ||
Pitch 2mm | ||
Number of Conductors 5 | ||
American Wire Gauge 28AWG | ||
Series TCMD | ||
Jacket Material Polyvinyl Chloride | ||
Conductor Type Stranded | ||
Cable Length 50.8mm | ||
Standards/Approvals RoHS Compliant | ||
Jacket Colour Grey | ||
Conductor Material Copper | ||
Core Strands 7 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
2.00 mm (.0787") pitch
All common pin counts from 4 to 25
Optional strain relief
Wide variety of wiring options including reverses, daisy chains, etc.
Double ended with termination to socket strip available
