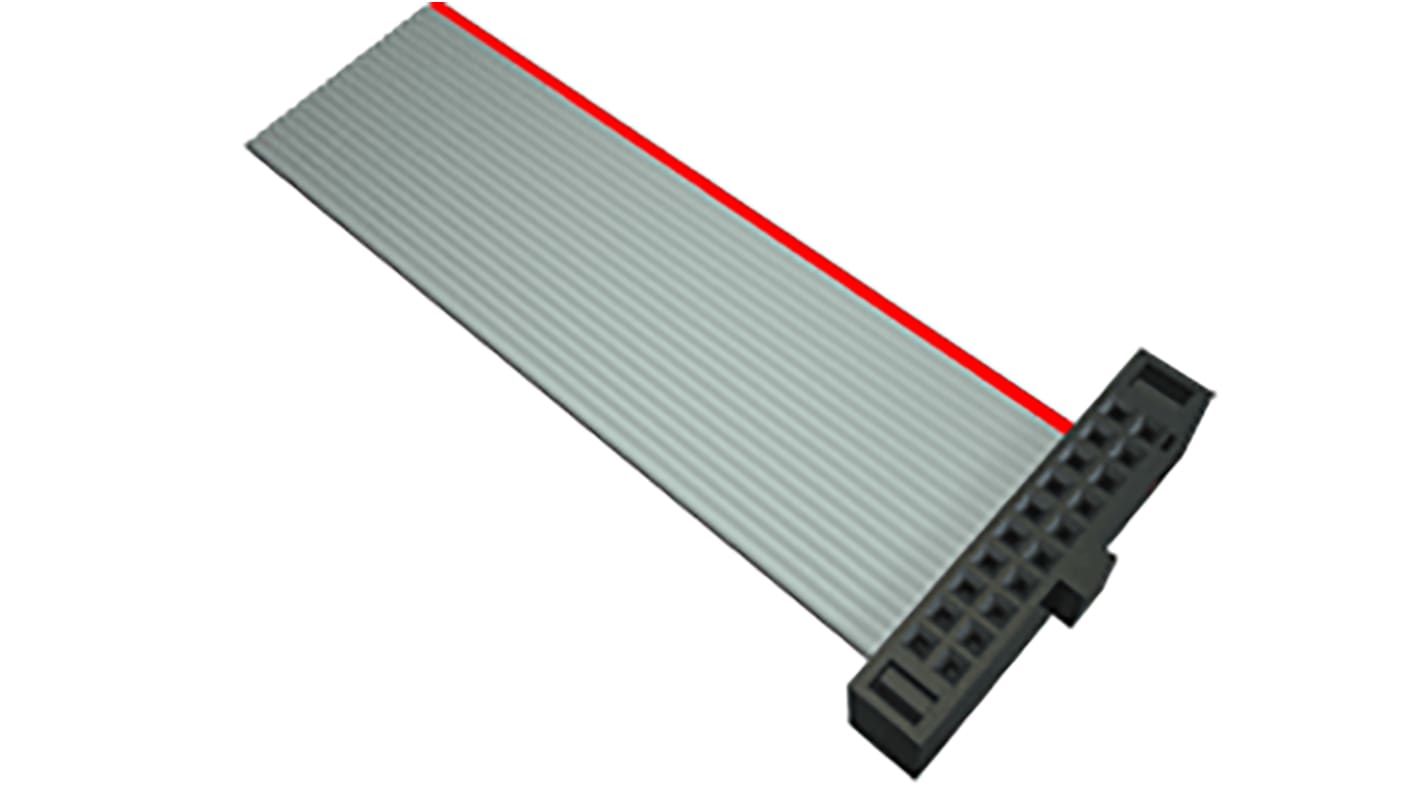

Samtec FFSD Series Flat Ribbon Cable, 20-Way, 1.27mm Pitch, 762mm Length, Tiger Eye IDC to Tiger Eye IDC

View all Ribbon Cable
Bulk discount available

Subtotal (1 unit)*

£21.04

(exc. VAT)

£25.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 16 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£21.04
10 - 49£20.14
50 - 99£19.36
100 - 249£18.52
250 +£17.85

*price indicative

RS Stock No.:
180-0060
Mfr. Part No.:
FFSD-10-D-30.00-01-N-D15-O
Brand:
Samtec
Find similar products by selecting one or more attributes.
Select all

Brand

Samtec

Ribbon Cable Type

Flat

Connector 1

Tiger Eye IDC

Connector 2

Tiger Eye IDC

Pitch

1.27mm

Connector 1 Gender

Female

Terminated/Unterminated

Terminated

Number of Ways

20

Connector 2 Gender

Female

American Wire Gauge

30 AWG

Series

FFSD

Length

762mm

Current Rating

2.3 A

Standards Met

RoHS Compliant

Operating Temperature Range

-40 → +105 °C

This flat Tiger Eye™ IDC socket cable system features an exceptionally low profile design with a multi-finger, BeCu contact system for high reliability and high cycle applications. Optional rugged strain relief is available for a more robust connection in harsh environments, as well as a variety of ejector and shrouded headers for mating.

.050" (1.27 mm) pitch
All common pin counts from 3 to 25
High-reliability Tiger Eye™ contacts
Mating shrouded terminal strips and ejector headers
Optional strain relief
Polarization key
Wide variety of wiring options including reverses, daisy chains, etc.
