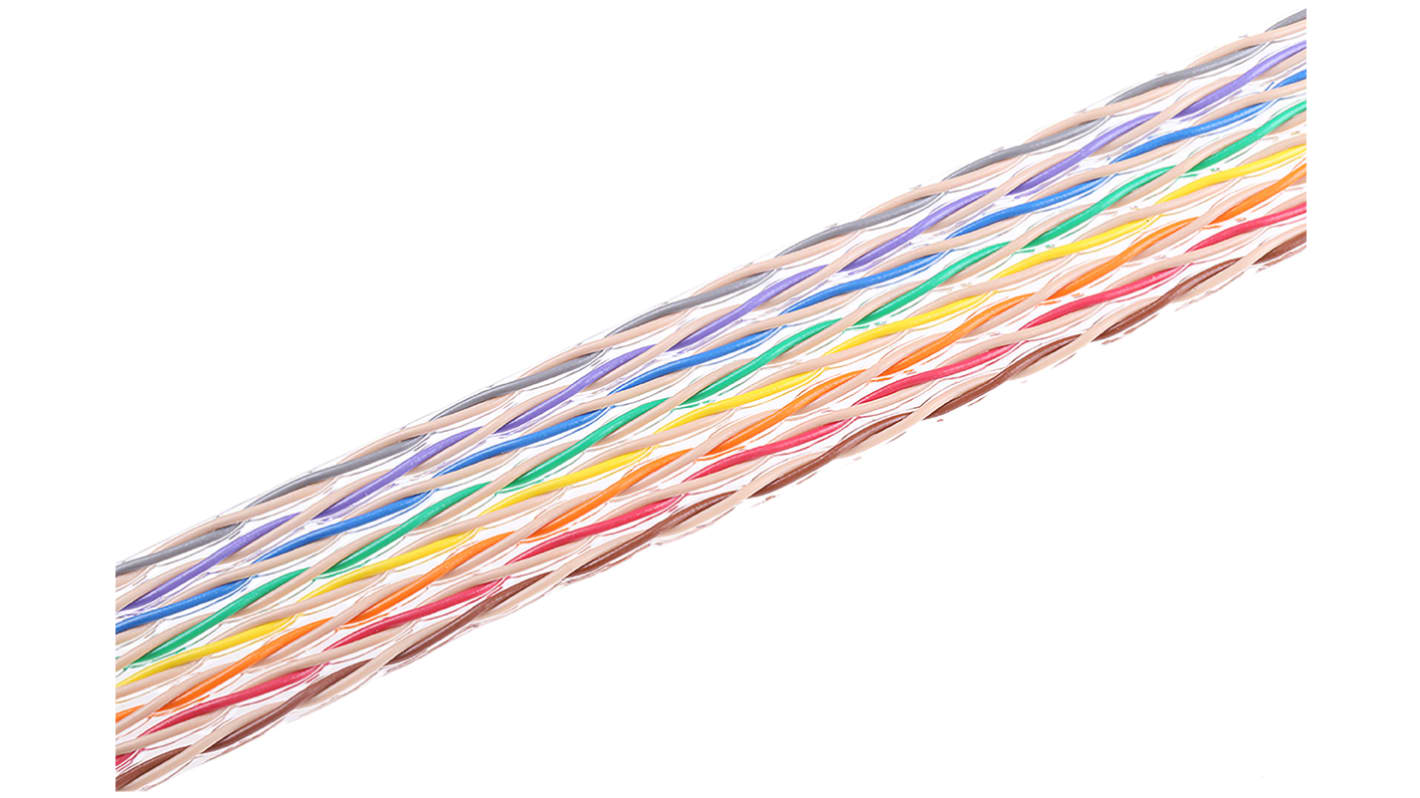

3M Twisted Ribbon Cable, 16-Way, 1.27mm Pitch, 30m Length

View all Ribbon Cable

Subtotal (1 reel of 30 metres)*

£153.00

(exc. VAT)

£183.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 19 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£153.00£5.10

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
HARTING Twisted Ribbon Cable, 16-Way, 1.27mm Pitch, 30m Length
RS Stock No.
693-7719

1 Reel of 30 Metre(s)

£762.75

(exc. VAT)

£915.30

(inc. VAT)

RS Stock No.:
126-4918
Mfr. Part No.:
1700-16
Brand:
3M
Find similar products by selecting one or more attributes.
Select all

Brand

3M

Ribbon Cable Type

Twisted

Pitch

1.27mm

Terminated/Unterminated

Unterminated

Number of Ways

16

Screened/Unscreened

Unscreened

American Wire Gauge

28 AWG

Length

30m

Width

20.3 mm

Voltage Rating

300 V

Maximum Operating Temperature

+80°C

Sheath Colour

Multicoloured

Conductor Strand Type

Stranded

Number of Strands

7

Minimum Operating Temperature

-20°C

Characteristic Impedance

122 Ω

Capacitance

52.2pF/m

Size of Strands

36 AWG

Operating Temperature Range

-20 → +80 °C

Core Strands

7/36

COO (Country of Origin):
US

3M Twist & Flat 1.27m Pitch Ribbon Cable - Type 1700


From 3M, this 1700 round ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Features and Benefits


• Wire gauge 28awg, 1.27mm pitch between conductors
• Reduced crosstalk in balanced drive applications
• Wires are colour coded for easy identification
• UL recognised style 50462

Applications


Ribbon cabling is frequently used in computing and in communication applications, and can be used for internal and external wiring in electronic appliances. Twisted ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?


3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies

Approvals

UL Recognised

Approvals

UL 20462


Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment. Colour coded ribbon cable with alternate twisted pair and parallel conductor sections. Twisting of adjacent conductors reduces crosstalk whilst the flat sections at regular intervals still facilitate easy termination.
