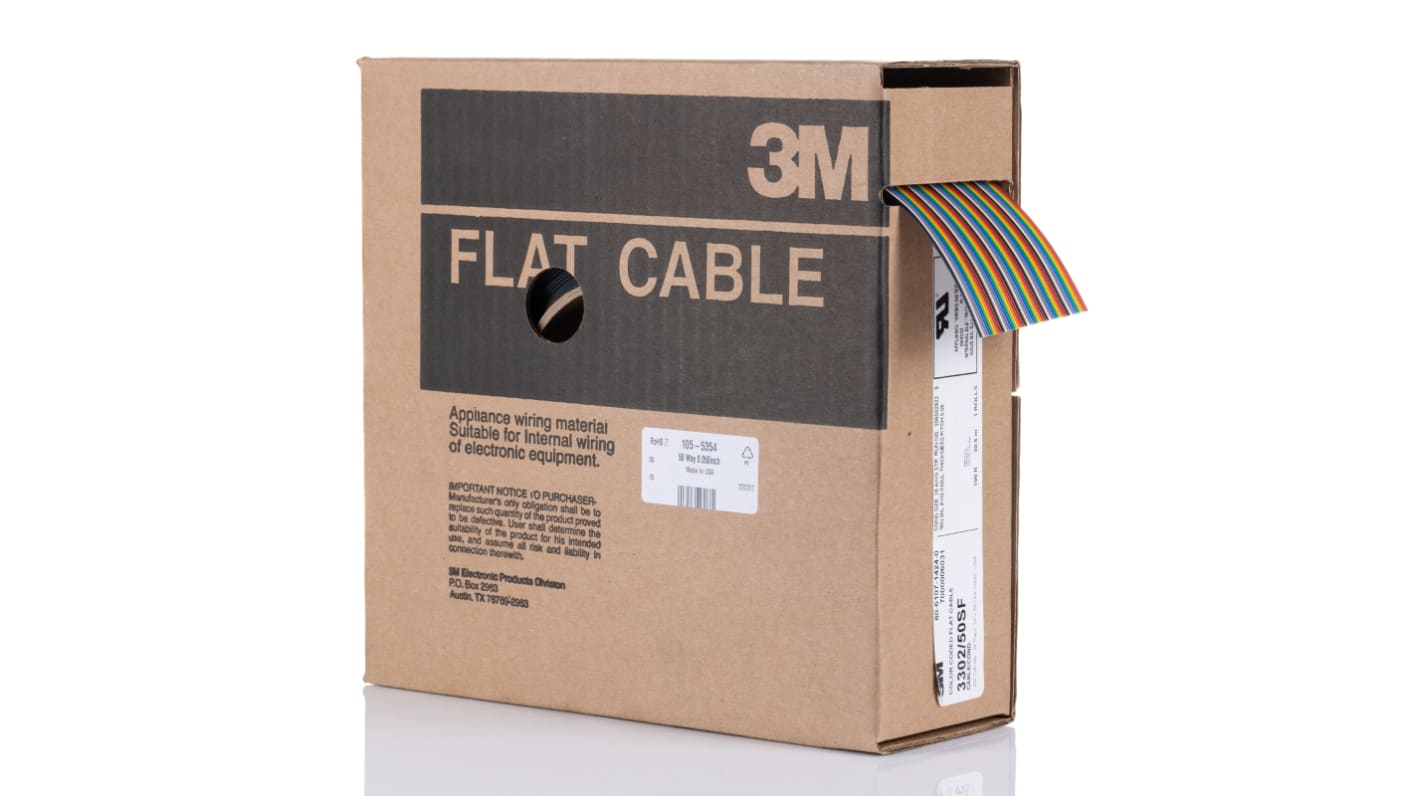

3M 3302 Series Flat Ribbon Cable, 50-Way, 1.27mm Pitch, 30m Length
- RS Stock No.:
- 105-5354
- Mfr. Part No.:
- 3302-50 100FT
- Brand:
- 3M
Subtotal (1 reel of 30 metres)*
£232.23
(exc. VAT)
£278.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 18 unit(s) shipping from 19 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £232.23 | £7.741 |
*price indicative
- RS Stock No.:
- 105-5354
- Mfr. Part No.:
- 3302-50 100FT
- Brand:
- 3M
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Ribbon Cable Type | Flat | |
| Pitch | 1.27mm | |
| Terminated/Unterminated | Unterminated | |
| Number of Ways | 50 | |
| Screened/Unscreened | Unscreened | |
| American Wire Gauge | 28 AWG | |
| Series | 3302 | |
| Length | 30m | |
| Width | 63.5 mm | |
| Maximum Operating Temperature | +105°C | |
| Voltage Rating | 300 V | |
| Conductor Strand Type | Stranded | |
| Minimum Operating Temperature | -20°C | |
| Number of Strands | 7 | |
| Sheath Colour | Multicoloured | |
| Operating Temperature Range | -20 → +105 °C | |
| Characteristic Impedance | 105 Ω | |
| Capacitance | 46.248pF/m | |
| Core Strands | 7/0.127 mm | |
| Size of Strands | 0.127 mm | |
| Jacketed | Yes | |
Select all | ||
|---|---|---|
Brand 3M | ||
Ribbon Cable Type Flat | ||
Pitch 1.27mm | ||
Terminated/Unterminated Unterminated | ||
Number of Ways 50 | ||
Screened/Unscreened Unscreened | ||
American Wire Gauge 28 AWG | ||
Series 3302 | ||
Length 30m | ||
Width 63.5 mm | ||
Maximum Operating Temperature +105°C | ||
Voltage Rating 300 V | ||
Conductor Strand Type Stranded | ||
Minimum Operating Temperature -20°C | ||
Number of Strands 7 | ||
Sheath Colour Multicoloured | ||
Operating Temperature Range -20 → +105 °C | ||
Characteristic Impedance 105 Ω | ||
Capacitance 46.248pF/m | ||
Core Strands 7/0.127 mm | ||
Size of Strands 0.127 mm | ||
Jacketed Yes | ||
