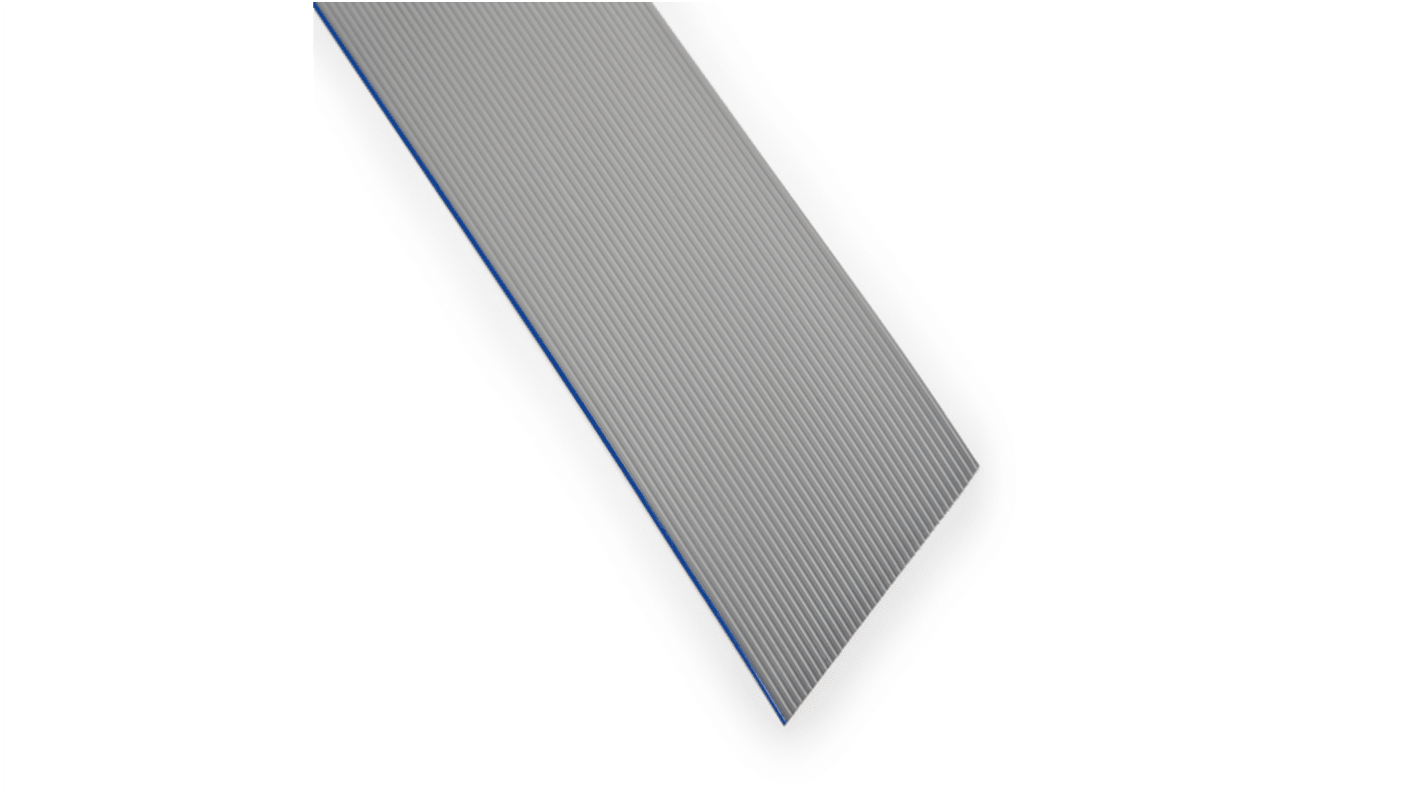

3M HF319 Series Ribbon Cable, Stranded, 1.27 mm Pitch, 40, 30.48 m Length
- RS Stock No.:
- 622-110
- Mfr. Part No.:
- HF319/40
- Brand:
- 3M
Subtotal (1 pack of 3 units)*
£3,285.53
(exc. VAT)
£3,942.64
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 31 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £3,285.53 | £1,095.177 |
*price indicative
- RS Stock No.:
- 622-110
- Mfr. Part No.:
- HF319/40
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Product Type | Ribbon Cable | |
| Cable Type | Stranded | |
| Pitch | 1.27mm | |
| Voltage | 300V | |
| Screened/Unscreened | Unscreened | |
| Number of Conductors | 40 | |
| American Wire Gauge | 28AWG | |
| Conductor Type | Stranded | |
| Jacket Material | Polyolefin | |
| Series | HF319 | |
| Cable Length | 30.48m | |
| Standards/Approvals | China RoHS, RoHS 2011/65/EU | |
| Jacket Colour | Grey | |
| Hi-Flex | Yes | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Silver Plated Copper | |
| Fire Behaviour | Horizontal, Halogen Free | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Product Type Ribbon Cable | ||
Cable Type Stranded | ||
Pitch 1.27mm | ||
Voltage 300V | ||
Screened/Unscreened Unscreened | ||
Number of Conductors 40 | ||
American Wire Gauge 28AWG | ||
Conductor Type Stranded | ||
Jacket Material Polyolefin | ||
Series HF319 | ||
Cable Length 30.48m | ||
Standards/Approvals China RoHS, RoHS 2011/65/EU | ||
Jacket Colour Grey | ||
Hi-Flex Yes | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Silver Plated Copper | ||
Fire Behaviour Horizontal, Halogen Free | ||
Maximum Operating Temperature 105°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
3M HF319 Series Ribbon Cable, 30.48m Cable Length, 40 Conductors - HF319/40
This ribbon cable provides a flexible multi‑conductor interconnection for industrial and electronic assemblies, intended for use where Compact, parallel wiring is required. It is designed for installations that demand continuous movement and elevated temperature tolerance while maintaining a Compact conductor pitch suited to dense connector spacing.
Features and Benefits:
• 28 AWG conductors offering Compact cross‑section and flexibility
• 40 conductors enabling high‑density parallel signalling
• 1.27mm pitch for close‑pitch connector compatibility
• Silver‑plated copper strands improving conductivity and contact life
• Polyolefin grey jacket delivering chemical resistance and abrasion protection
• Rated to 300V for typical control and signal circuits
• 40 conductors enabling high‑density parallel signalling
• 1.27mm pitch for close‑pitch connector compatibility
• Silver‑plated copper strands improving conductivity and contact life
• Polyolefin grey jacket delivering chemical resistance and abrasion protection
• Rated to 300V for typical control and signal circuits
Applications
• Suitable for cable harnesses in automated machinery where movement occurs
• Ideal for internal interconnects in control cabinets with dense connectors
• Used for flat cable routing between sensors and data acquisition units
• Can be used for wiring looms in industrial inspection systems
• Ideal for internal interconnects in control cabinets with dense connectors
• Used for flat cable routing between sensors and data acquisition units
• Can be used for wiring looms in industrial inspection systems
What strand construction supports repeated flexing?
Each conductor comprises 19 fine strands which increase flexibility and reduce metal fatigue in high‑flex applications.
How does temperature range affect placement?
The cable operates from -40°C to 105°C, allowing use near heat sources and in cold‑storage environments without performance degradation.
Is the cable screened for EMI protection?
The construction is unscreened, so external screening or routing strategies should be used where electromagnetic interference mitigation is required.
What standards or restrictions apply to material selection?
The design meets RoHS requirements and uses a halogen‑free configuration for horizontal fire‑behaviour applications.
