3M 3365 Series Ribbon Cable, Stranded, 1.27 mm Pitch, 8, 30 m Length
- RS Stock No.:
- 493-169
- Mfr. Part No.:
- 3365/08-100
- Brand:
- 3M
Subtotal (1 unit)*
£21.88
(exc. VAT)
£26.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.88 |
*price indicative
- RS Stock No.:
- 493-169
- Mfr. Part No.:
- 3365/08-100
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Cable Type | Stranded | |
| Product Type | Ribbon Cable | |
| Pitch | 1.27mm | |
| Voltage | 300 V | |
| American Wire Gauge | 28AWG | |
| Series | 3365 | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Cable Length | 30m | |
| Standards/Approvals | VW-1, CHINA RoHS, RoHS 2011/65/EU, FT1 | |
| Jacket Colour | Black, Grey | |
| Conductor Material | Silver Plated Copper | |
| Fire Behaviour | Usa: VW-1 Canada: FT1 | |
| Number of Conductors | 8 | |
| Maximum Operating Temperature | 105°C | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Cable Type Stranded | ||
Product Type Ribbon Cable | ||
Pitch 1.27mm | ||
Voltage 300 V | ||
American Wire Gauge 28AWG | ||
Series 3365 | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Cable Length 30m | ||
Standards/Approvals VW-1, CHINA RoHS, RoHS 2011/65/EU, FT1 | ||
Jacket Colour Black, Grey | ||
Conductor Material Silver Plated Copper | ||
Fire Behaviour Usa: VW-1 Canada: FT1 | ||
Number of Conductors 8 | ||
Maximum Operating Temperature 105°C | ||
Minimum Operating Temperature -20°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US

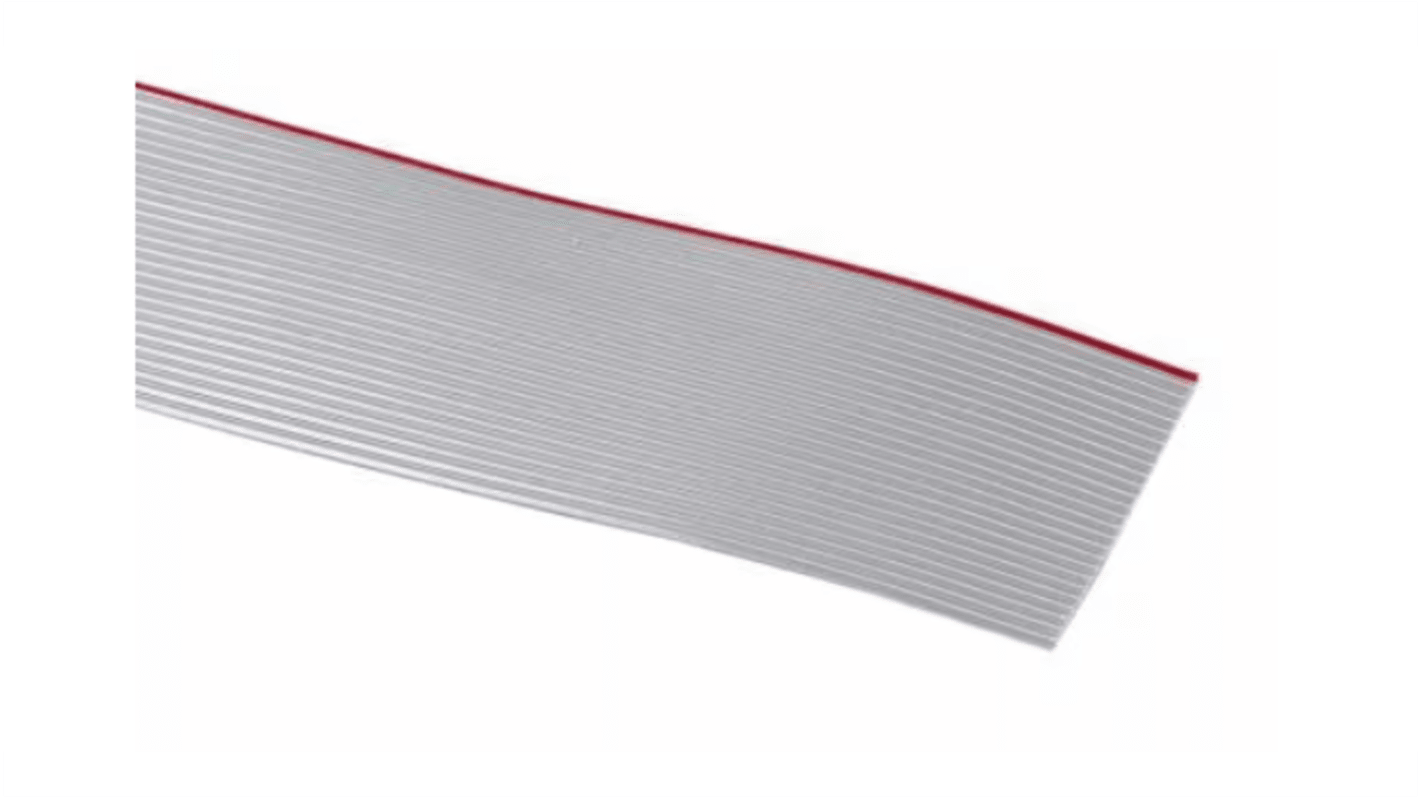

The 3M Flat Ribbon Cable is an 8-way IDC to IDC grey ribbon cable with a 1.27mm pitch and a length of 30.48m. It features 28 AWG wire on 0.05 inch centres, allowing mass termination to a broad range of IDC connectors. The 7x36 tinned stranded copper wire enhances flexibility and extends product life, while the first conductor is easily identifiable by a red leading edge.
Stranded wire provides flexibility and extended product life
Zippable for branching or discrete termination
