RND RND 475 Series Ribbon Cable, Ribbon, 2 mm Pitch, 6, 30 m Length
- RS Stock No.:
- 491-727
- Distrelec Article No.:
- 301-39-988
- Mfr. Part No.:
- RND 475-00810
- Brand:
- RND
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 491-727
- Distrelec Article No.:
- 301-39-988
- Mfr. Part No.:
- RND 475-00810
- Brand:
- RND
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RND | |
| Cable Type | Ribbon | |
| Product Type | Ribbon Cable | |
| Pitch | 2mm | |
| Voltage | 30V | |
| Number of Conductors | 6 | |
| Jacket Material | Polyvinyl Chloride | |
| Series | RND 475 | |
| Cable Length | 30m | |
| Standards/Approvals | RoHS | |
| Conductor Material | Stranded Bare Copper | |
| Maximum Operating Temperature | 80°C | |
| Minimum Operating Temperature | -15°C | |
| Fire Behaviour | UL 94 V-2 | |
| Select all | ||
|---|---|---|
Brand RND | ||
Cable Type Ribbon | ||
Product Type Ribbon Cable | ||
Pitch 2mm | ||
Voltage 30V | ||
Number of Conductors 6 | ||
Jacket Material Polyvinyl Chloride | ||
Series RND 475 | ||
Cable Length 30m | ||
Standards/Approvals RoHS | ||
Conductor Material Stranded Bare Copper | ||
Maximum Operating Temperature 80°C | ||
Minimum Operating Temperature -15°C | ||
Fire Behaviour UL 94 V-2 | ||
- COO (Country of Origin):
- CN

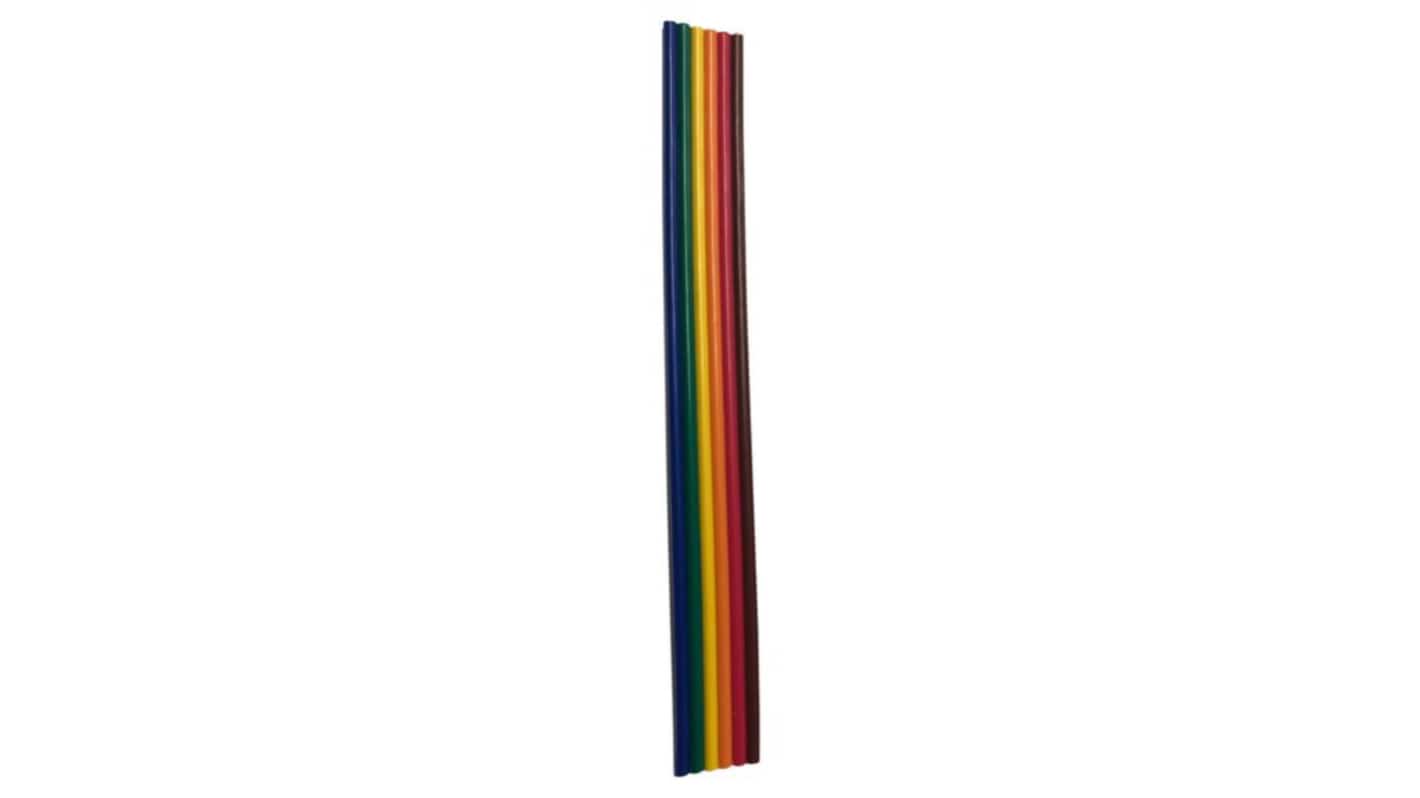

The RND Ribbon Cable exemplifies reliability and versatility, perfect for a variety of electronic applications. Constructed from stranded bare copper, it ensures optimal conductivity while maintaining flexibility. The PVC insulation provides a protective barrier, making it suitable for environments with specific temperature and usage requirements. Tailored for performance, the cable features a meticulously designed pitch and outer diameter that facilitate efficient connections.
Durable construction is ideal for a wide range of applications
Meets rigorous performance standards, providing peace of mind
Long roll length offers convenience for extensive projects
