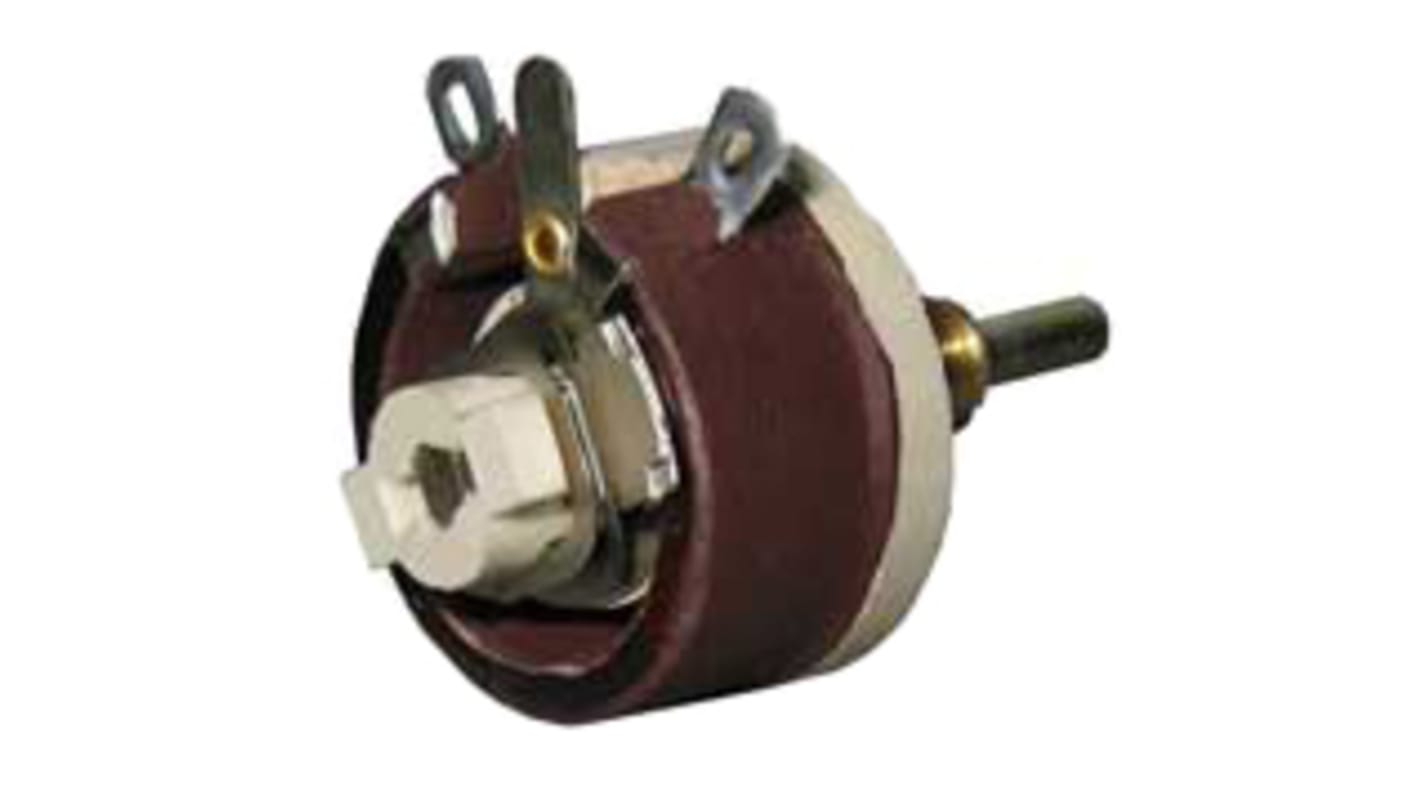

Arcol Ohmite 12.5 W 50 Ω Linear Rheostat 500mA, RES50RE
- RS Stock No.:
- 144-5522
- Mfr. Part No.:
- RES50RE
- Brand:
- Arcol Ohmite
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£142.75
(exc. VAT)
£171.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £142.75 |
| 5 - 9 | £132.76 |
| 10 + | £124.19 |
*price indicative
- RS Stock No.:
- 144-5522
- Mfr. Part No.:
- RES50RE
- Brand:
- Arcol Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol Ohmite | |
| Product Type | Linear Rheostat | |
| Maximum Resistance | 50Ω | |
| Tolerance ± | 10% | |
| Power Rating | 12.5W | |
| Number of Turns | 1 | |
| Packaging | Bulk | |
| Mount Type | Panel Mount | |
| Shaft Diameter | 3.18mm | |
| Mounting Hole Diameter | 6.35 mm | |
| Termination Style | Solder | |
| Maximum Voltage | 305Vrms | |
| Series | RES | |
| Diameter | 22.23mm | |
| Standards/Approvals | RoHS | |
| Length | 17.46mm | |
| Depth | 22.23mm | |
| Height | 17.46mm | |
| Current Rating | 500mA | |
| Actuator Type | Linear Shaft | |
| Electrical Taper | Angular | |
| Core Type | Open | |
| Shaft Length | 9.53mm | |
| Select all | ||
|---|---|---|
Brand Arcol Ohmite | ||
Product Type Linear Rheostat | ||
Maximum Resistance 50Ω | ||
Tolerance ± 10% | ||
Power Rating 12.5W | ||
Number of Turns 1 | ||
Packaging Bulk | ||
Mount Type Panel Mount | ||
Shaft Diameter 3.18mm | ||
Mounting Hole Diameter 6.35 mm | ||
Termination Style Solder | ||
Maximum Voltage 305Vrms | ||
Series RES | ||
Diameter 22.23mm | ||
Standards/Approvals RoHS | ||
Length 17.46mm | ||
Depth 22.23mm | ||
Height 17.46mm | ||
Current Rating 500mA | ||
Actuator Type Linear Shaft | ||
Electrical Taper Angular | ||
Core Type Open | ||
Shaft Length 9.53mm | ||
The Arcol Ohmite RE series 12. 5W wirewound potentiometers is a linear rheostat. The RE series has a ceramic body, high-grade resistance alloy linear taper windings, vitreous enamel coating, metal spring contact arm, metal graphite composition and solder coated terminals. Typical applications for the RE series are motor speed controls, light dimmers and for equipment requiring convenient variable resistance settings.
Tolerance: ±10%
