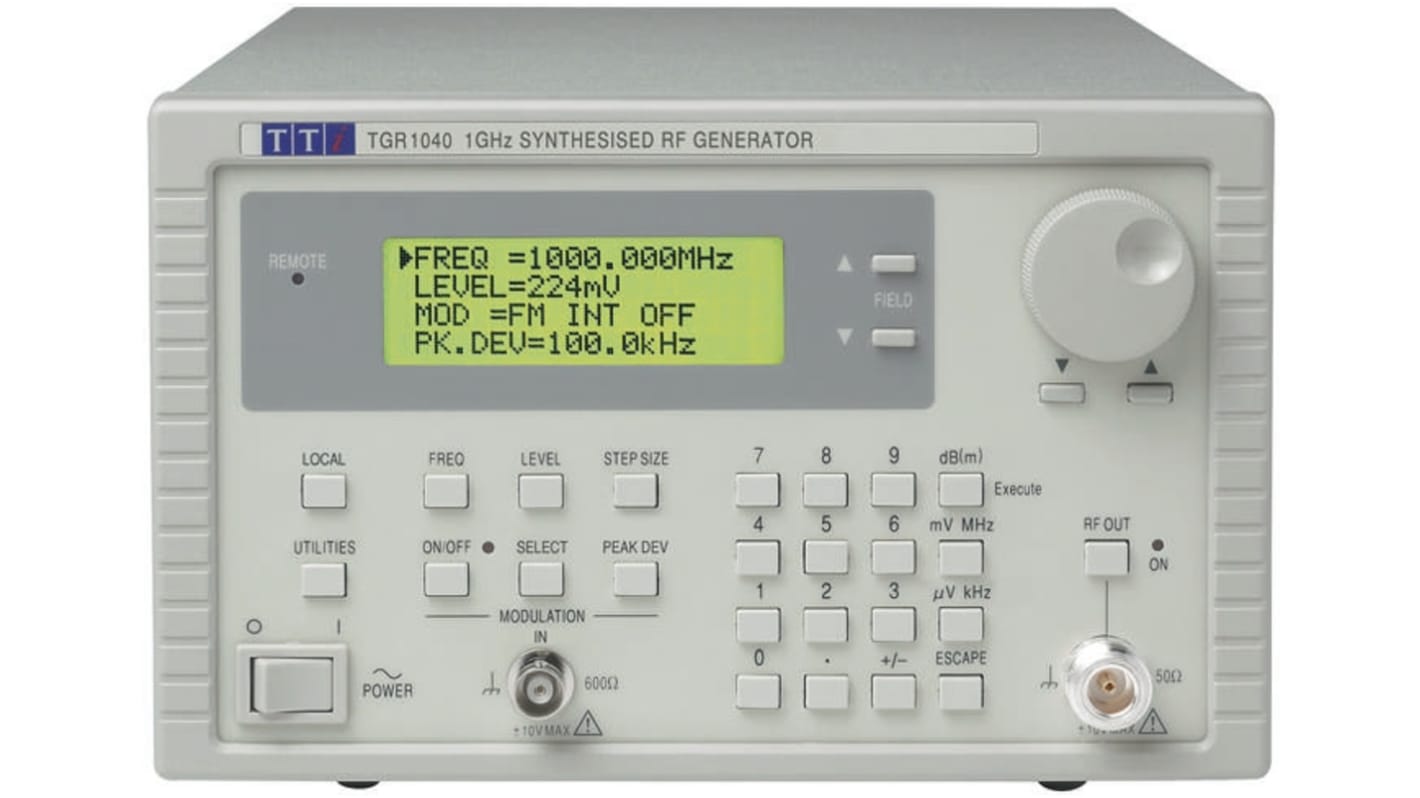

Aim-TTi RF Signal Generator, 10mHz min, 1000MHz max, With RS Calibration
- RS Stock No.:
- 341-6408
- Mfr. Part No.:
- TGR1040
- Brand:
- Aim-TTi
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 341-6408
- Mfr. Part No.:
- TGR1040
- Brand:
- Aim-TTi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aim-TTi | |
| Maximum Frequency Range Sinewave | 1000MHz | |
| Minimum Frequency Range Sinewave | 10mHz | |
| FM Modulation | Yes | |
| Time Base Accuracy | ±2ppm | |
| Output Impedance | 50Ω | |
| Input Impedance | 100 kΩ | |
| Interface Type | GPIB, RS232 | |
| Calibrated | RSCAL | |
Select all | ||
|---|---|---|
Brand Aim-TTi | ||
Maximum Frequency Range Sinewave 1000MHz | ||
Minimum Frequency Range Sinewave 10mHz | ||
FM Modulation Yes | ||
Time Base Accuracy ±2ppm | ||
Output Impedance 50Ω | ||
Input Impedance 100 kΩ | ||
Interface Type GPIB, RS232 | ||
Calibrated RSCAL | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
TTi TGR1040 1GHz Fully Synthesised
1kHz setablity at any frequency
FM modulation, internal or external
Keyboard and rotary encoder control
Non-volatile storage for 9 user set-ups
Full remote control via integral RS-232 interface
FM modulation, internal or external
Keyboard and rotary encoder control
Non-volatile storage for 9 user set-ups
Full remote control via integral RS-232 interface
Aim-TTi Digital Function Generator
The Aim-TTi digital function generator is a high-tech device with a more restricted frequency range of 10MHz to 1GHz. It incorporates FM modulation only (internal and external). It retains the high stability and wide amplitude range of the previous generation generators making it suitable for many task including FM radio receiver sensitivity measurements, system gain measurements, receiver tuning and alignment, oscillator substitutions, EMC/antenna/field strength measurements, and also as a signal source for many other RF circuit and system development tasks. The function generator can be operated using either numeric or rotary controls and can be remotely controlled via either an RS-232 interface or GPIB interface.
Features and Benefits
1kHz setting at any frequency
FM modulation, internal or external
Keyboard and rotary encoder control
Non-volatile storage for 9 user set-ups
Nine memories are provided for user set-ups
Low phase noise and low leakage
Non-volatile storage for 9 generator set-ups
Accuracy better than 1ppm over 15°C to 30°C
Amplitude range of -127dBm to +7dBm
Amplitude entry in dBm or μV/mV
Ageing better than 1ppm over one year
FM modulation, internal or external
Keyboard and rotary encoder control
Non-volatile storage for 9 user set-ups
Nine memories are provided for user set-ups
Low phase noise and low leakage
Non-volatile storage for 9 generator set-ups
Accuracy better than 1ppm over 15°C to 30°C
Amplitude range of -127dBm to +7dBm
Amplitude entry in dBm or μV/mV
Ageing better than 1ppm over one year
Applications
Integrated electronic testing
Educational institutes
Embedded systems
Digital circuits
Analogue signal processing
Laboratories
Educational institutes
Embedded systems
Digital circuits
Analogue signal processing
Laboratories
Certifications
EN61326
EN61010-1
EN61010-1
