- RS Stock No.:
- 213-1336
- Mfr. Part No.:
- RockBlock FTDI Kit
- Brand:
- Rock Seven
Available to back order for despatch 14/05/2024
Added
Price Each
£235.00
(exc. VAT)
£282.00
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £235.00 |
| 5 - 9 | £233.92 |
| 10 + | £233.25 |
- RS Stock No.:
- 213-1336
- Mfr. Part No.:
- RockBlock FTDI Kit
- Brand:
- Rock Seven
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

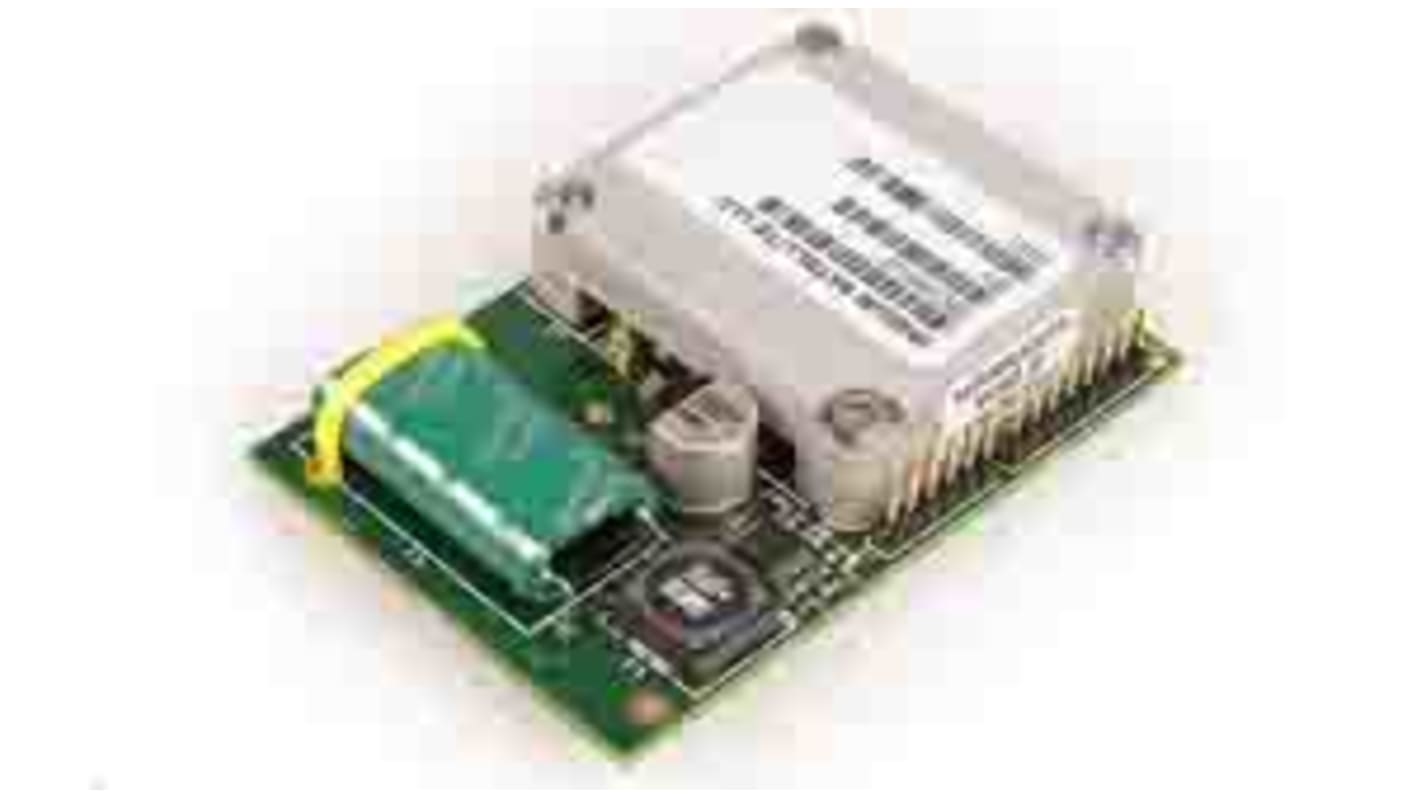

The Rock 7 RockBlock FTDI Kit is a RockBlock 9603 bundle with FTDI cable. RockBLOCK takes its power from a standard 0.1" pitch direct header connector, or alternatively via an FTDI to USB adaptor (to power/control from a USB port). Both 213-1336 and 213-1335 have an SMA connector for an optional external antenna which is ideal if the product is buried. The internal antenna is ideal for most installations.
Transmits Using Iridium
Specifications
Attribute | Value |
|---|---|
| Component Type | Module |
| Module Type | Transmitter |
| Maximum RF Data Rate | 270 → 340bps |
| Supported Bus Interfaces | UART |
| Supply Voltage | 5V |
| Dimensions | 76.0 x 51.5 x 19.0mm |
| Height | 76mm |
| Length | 51.5mm |
| Maximum Operating Temperature | 85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 19mm |
