Eccel Technology Ltd Pepper Wireless C1 EA RS485 RF Module 13.56 MHz 5.5 V
- RS Stock No.:
- 209-8436
- Mfr. Part No.:
- Pepper Wireless C1 EA RS485
- Brand:
- Eccel Technology Ltd
Stock information currently inaccessible
- RS Stock No.:
- 209-8436
- Mfr. Part No.:
- Pepper Wireless C1 EA RS485
- Brand:
- Eccel Technology Ltd
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eccel Technology Ltd | |
| Sub Type | RF Module | |
| Component Type | Reader | |
| Product Type | RF Module | |
| Frequency | 13.56MHz | |
| Maximum Output Power | 100mW | |
| Mount Type | Panel | |
| Interface Type | RS485 | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Series | Pepper C1 | |
| Standards/Approvals | No | |
| Length | 26.8mm | |
| Select all | ||
|---|---|---|
Brand Eccel Technology Ltd | ||
Sub Type RF Module | ||
Component Type Reader | ||
Product Type RF Module | ||
Frequency 13.56MHz | ||
Maximum Output Power 100mW | ||
Mount Type Panel | ||
Interface Type RS485 | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Series Pepper C1 | ||
Standards/Approvals No | ||
Length 26.8mm | ||

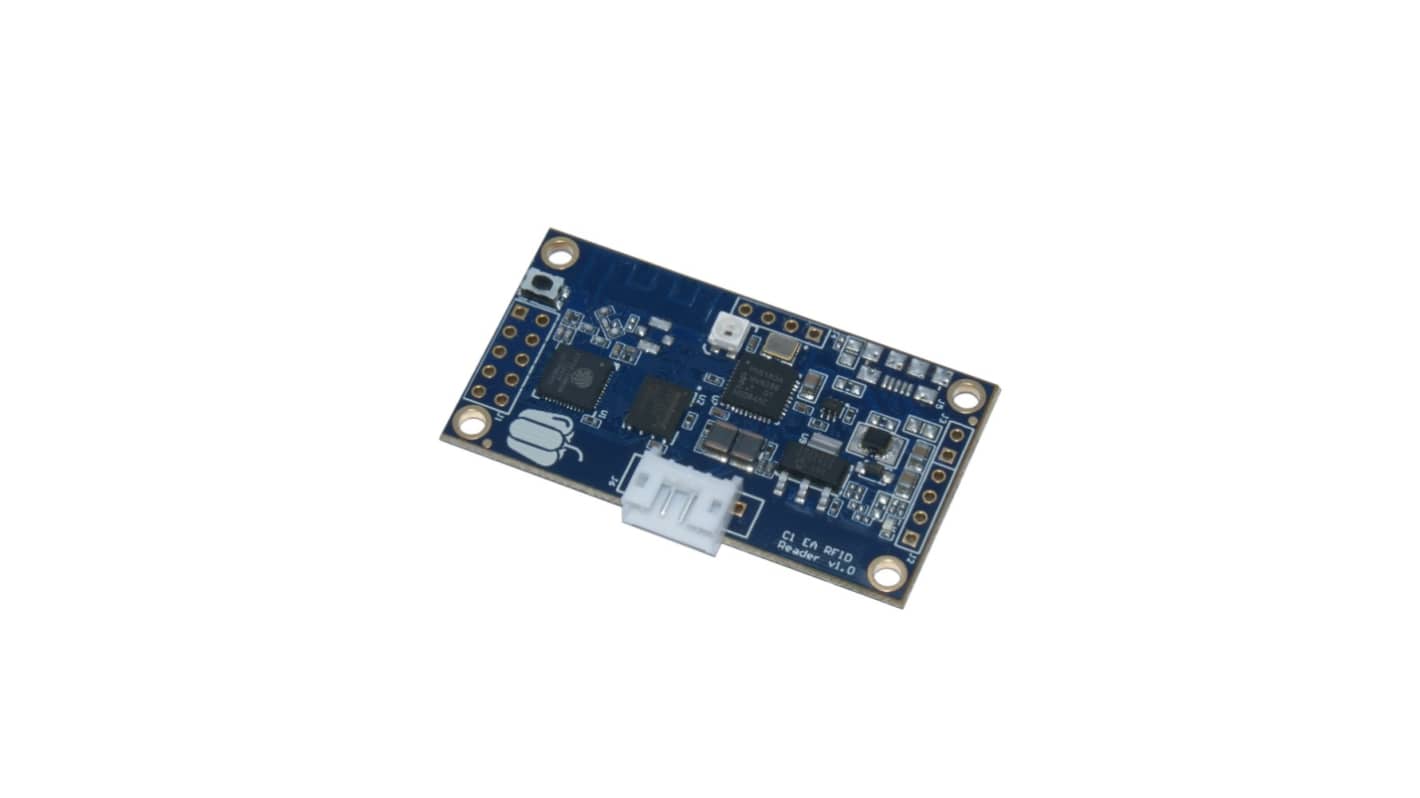

The Eccel Technology RFID reader with wireless connectivity by Wi-Fi 802.11b/g/n. It has a Built in WEB interface and Command interface via UART and TCP sockets.
UART baud rate up to 921600 bps
-25°C to 85°C operating temperature range
Stand-alone mode
6 configurable GPIOs
