Wurth Elektronik 2607046213001 RF RF Module Radio module 169MHz, 3.6V
- RS Stock No.:
- 205-9965
- Distrelec Article No.:
- 303-76-160
- Mfr. Part No.:
- 2607046213001
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£86.53
(exc. VAT)
£103.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £86.53 |
| 5 - 9 | £83.93 |
| 10 - 49 | £79.78 |
| 50 - 99 | £75.03 |
| 100 + | £72.47 |
*price indicative
- RS Stock No.:
- 205-9965
- Distrelec Article No.:
- 303-76-160
- Mfr. Part No.:
- 2607046213001
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Module Type | RF Module | |
| Supported Frequency Bands | 169MHz | |
| Modulation Technique | FM | |
| Maximum RF Data Rate | 4.8kbps | |
| Maximum Output Power | 14dBm | |
| Supply Voltage | 3.6V | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Module Type RF Module | ||
Supported Frequency Bands 169MHz | ||
Modulation Technique FM | ||
Maximum RF Data Rate 4.8kbps | ||
Maximum Output Power 14dBm | ||
Supply Voltage 3.6V | ||
- COO (Country of Origin):
- DE

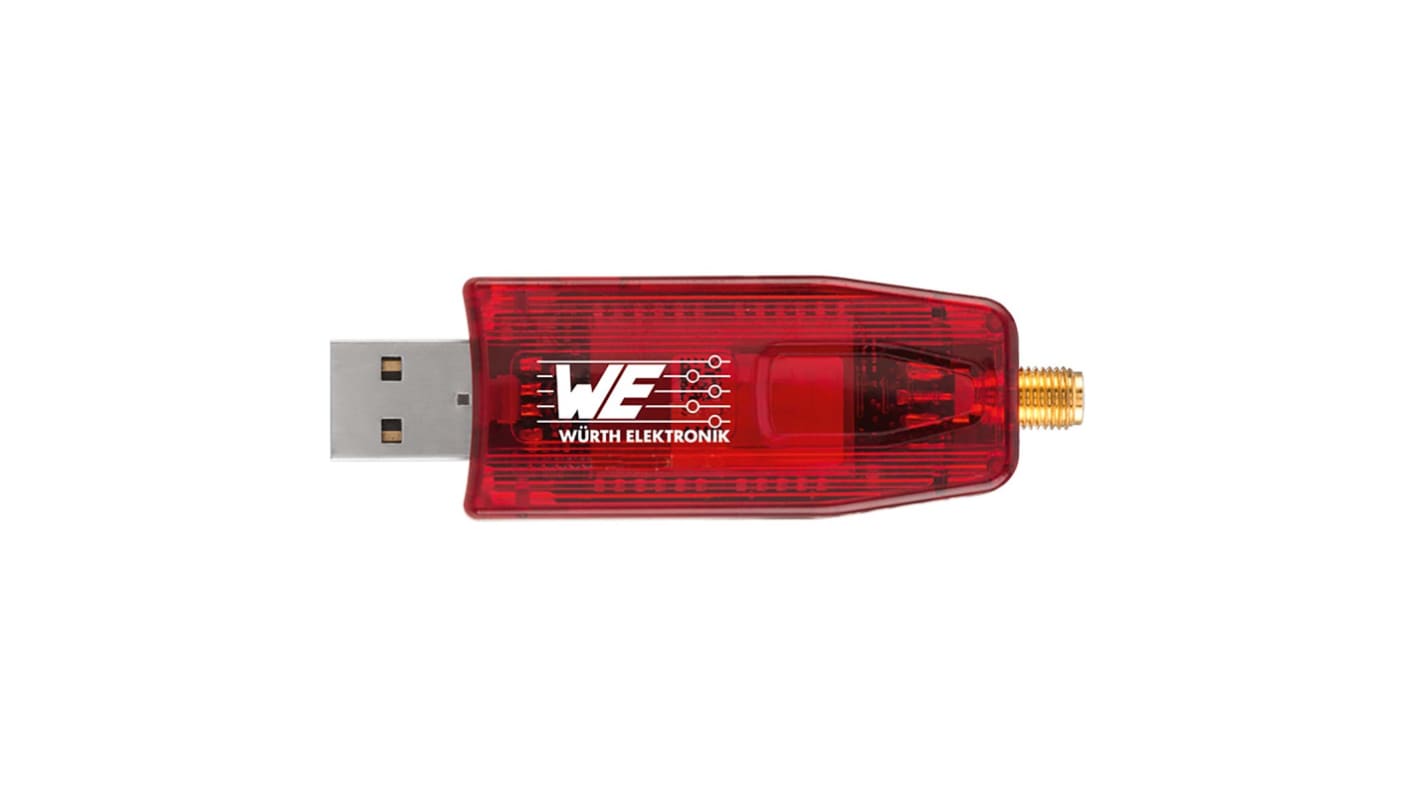

The Wurth Elektronik Mimas-I plug wireless USB stick has a communication range up to 3000m line of sight. It has a RF output power up to 14dBm and small size 17mm x 27mm x 4.0mm.
Low-power functions (Wake-On-Radio)
Adjustable RF data rates
Communication via UARTSPI Interface
Encryption AES-128
Pin-to-pin compatible with Metis-I and Metis-II
Available on tape and reel for SMT mounting
ACC Software - PC tool to configure and evaluat
Adjustable RF data rates
Communication via UARTSPI Interface
Encryption AES-128
Pin-to-pin compatible with Metis-I and Metis-II
Available on tape and reel for SMT mounting
ACC Software - PC tool to configure and evaluat
