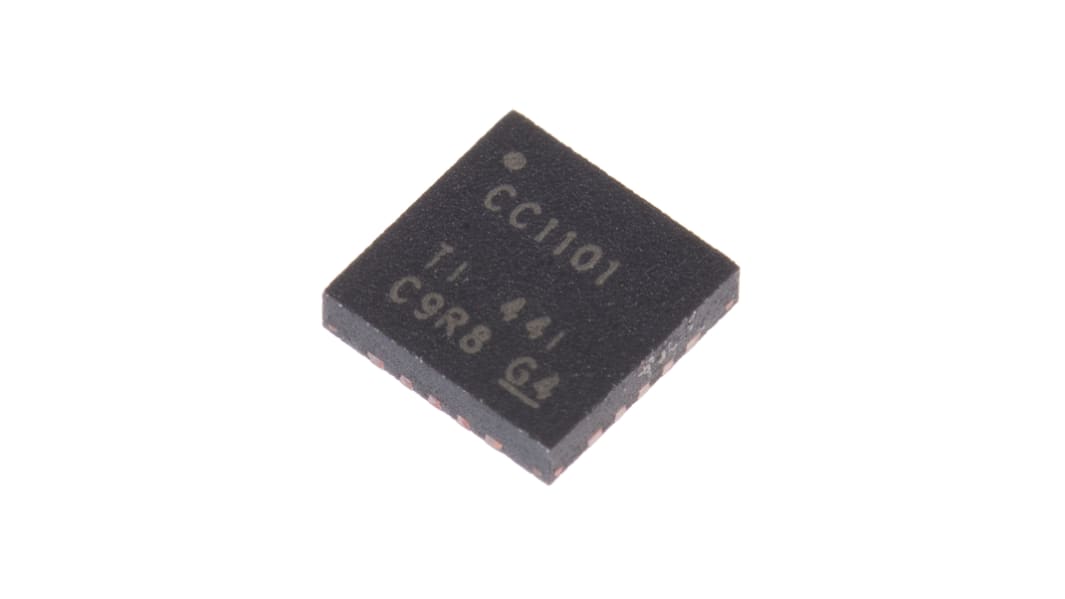

Texas Instruments RF Transceiver IC, 20-Pin QFN
- RS Stock No.:
- 921-2971
- Mfr. Part No.:
- CC1101RGP
- Brand:
- Texas Instruments
Subtotal (1 tube of 92 units)*
£259.164
(exc. VAT)
£310.96
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 184 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 92 + | £2.817 | £259.16 |
*price indicative
- RS Stock No.:
- 921-2971
- Mfr. Part No.:
- CC1101RGP
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Technology | Low IF/ISM Transceiver | |
| Product Type | RF Transceiver IC | |
| Modulation Technique | FSK, ASK, MSK, GFSK, OOK | |
| Sub Type | Transceiver | |
| Package Type | QFN | |
| Data Rate | 600kbps | |
| Pin Count | 20 | |
| Mount Type | Surface | |
| Interface Type | SPI | |
| Operating Band 1 Frequency | 464MHz | |
| Operating Band 2 Frequency | 387MHz | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Supply Voltage | 3.6V | |
| Operating Band 3 Frequency | 928MHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 4.15mm | |
| Height | 0.95mm | |
| Standards/Approvals | No | |
| Width | 4.15 mm | |
| Series | CC1101 | |
| Number of Operating Bands | 3 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Technology Low IF/ISM Transceiver | ||
Product Type RF Transceiver IC | ||
Modulation Technique FSK, ASK, MSK, GFSK, OOK | ||
Sub Type Transceiver | ||
Package Type QFN | ||
Data Rate 600kbps | ||
Pin Count 20 | ||
Mount Type Surface | ||
Interface Type SPI | ||
Operating Band 1 Frequency 464MHz | ||
Operating Band 2 Frequency 387MHz | ||
Minimum Supply Voltage 1.8V | ||
Maximum Supply Voltage 3.6V | ||
Operating Band 3 Frequency 928MHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 4.15mm | ||
Height 0.95mm | ||
Standards/Approvals No | ||
Width 4.15 mm | ||
Series CC1101 | ||
Number of Operating Bands 3 | ||
Automotive Standard No | ||
CC1101 series Sub-1GHz RF Transceiver
The CC1101 wireless transceiver is a low-cost, low-power device able to operate in the 315/433/868/915MHz ISM/SRD frequency bands. Compliant with Wireless MBUS (wMBUS) standard EN 13757-4:2005.
RF Frequency Ranges: 300 to 348MHz, 387 to 464MHz and 779 to 928MHz
RF Output Power: up to +12dBm
Receiver Sensitivity: -112dBm @ 1.2kbps with 1% PER
Modulation: OOK, ASK, FSK, QFSK, GFSK or MSK
Support for Frequency Hopping (FHSS) and Multi-Channel operation
OTA Data Rate: 600bps to 600kbps
Separate 64-byte Tx & Rx FIFOs
Support for Packet handling, Link Quality Indication, Preamble Quality Indication
Automatic Clear Channel Assessment (CCA) for Listen-Before-Talk (LBT) systems
AES-128 Security Coprocessor
Wake-On-Radio (WOR) function
Digital RSSI measurement
Host communication: USART
Power supply: +1.8V to +3.6Vdc
Operating temperature range: -40 to +85°C
Applications: Wireless alarm and security systems, Industrial monitoring & control, Wireless sensor networks, Automatic Meter Reading, Home & building automation,Wireless MBUS, Local communication for the Internet of Things (IoT)
RS Product Codes
820-3068 CC1101RGP
921-2971 CC1101RGP (Pack of 92)
Note
Development kits are available under RS Part Nos. 825-7140 (433MHz) and 825-7144 (868/915MHz)
Approvals
ETSI, FCC
