Microchip ZigBee Transceiver, 12-Pin Module

View all RF ICs

Subtotal (1 tray of 54 units)*

£373.788

(exc. VAT)

£448.524

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 270 unit(s) shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
54 +£6.922£373.79

*price indicative

RS Stock No.:
866-8134
Mfr. Part No.:
MRF24J40MA-I/RM
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Technology

IEEE 802.15.4

Product Type

ZigBee Transceiver

Modulation Technique

O-QPSK

Sub Type

Transceiver

Package Type

Module

Data Rate

250kbps

Pin Count

12

Mount Type

Surface

Interface Type

SPI

Operating Band 1 Frequency

2.48GHz

Minimum Supply Voltage

3.6V

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Height

0.89mm

Series

MRF24J40MA

Width

17.78 mm

Standards/Approvals

No

Length

27.94mm

Automotive Standard

No

Number of Operating Bands

1

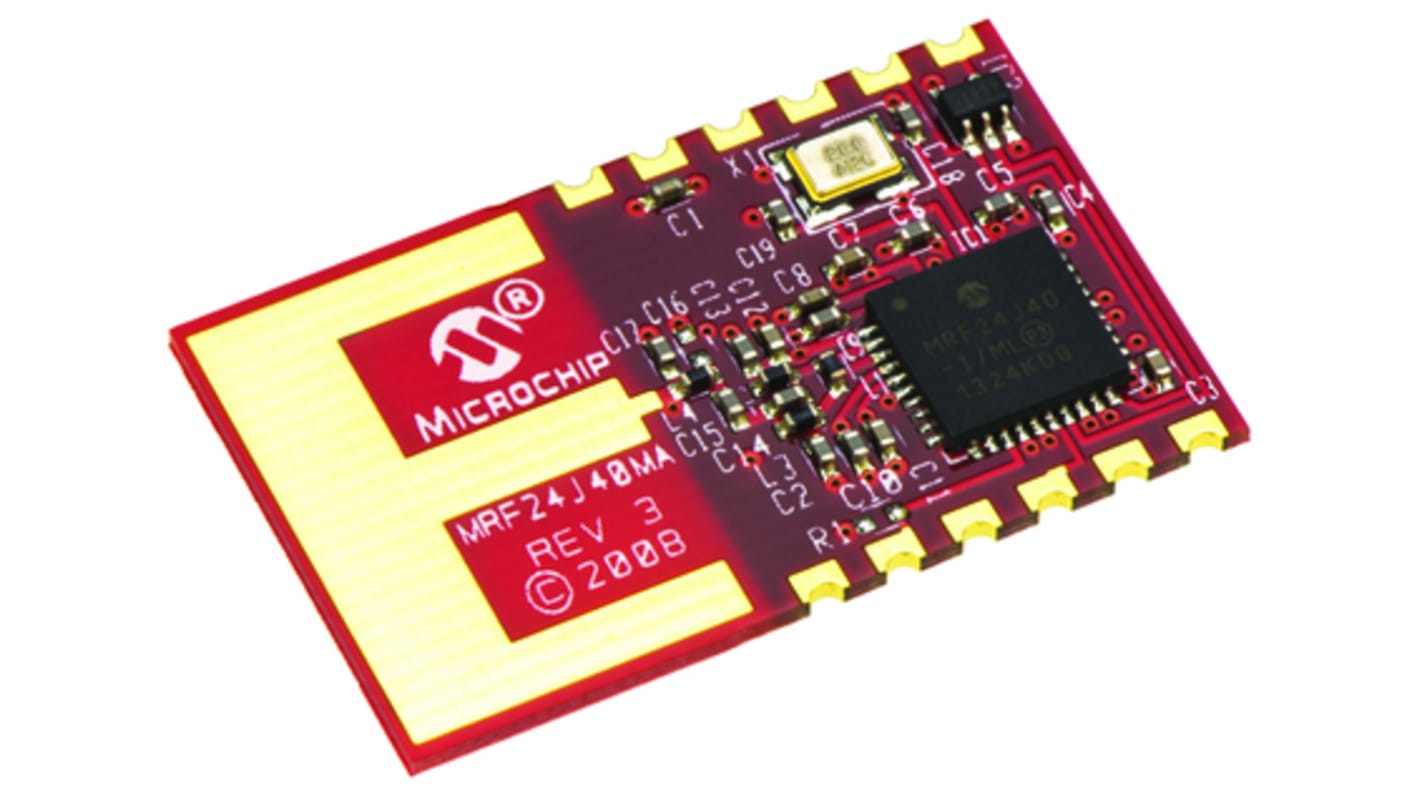

MRF24J40MA ZigBee Module


Microchips MRF24J40MA is a very small, wireless 2.4GHz IEEE 802.15.4 transceiver module. This module is surface mounted and comes with an integrated PCB antenna, internal voltage regulator and integrated crystal oscillator. MRF24J40MA is compatible with a range of software including ZigBee, MiWi and MiWi P2P. Not to mention, this module is compliant with a range of PIC families include PIC16F, PIC18F, PIC24F/H, dsPIC33 and PIC32.

Features and benefits:


  • Tiny, surface mountable module allows you to easily integrate it into your design

  • 2.4GHZ, IEEE 802.15.4 standard with ZigBee, MiWi and MiWi P2P support

  • Strong AES-128 encryption for all your security needs

  • FCC, IC and ETSI certified

  • Brilliant compatibility with Microchips PIC families

  • On-board crystal oscillator, antenna and voltage regulator

  • Four wire SPI-interface with maximum data speeds of 250Kbps

  • Up to an impressive 120m range

  • 3.3V typical voltage but can be used in between 3.0 to 3.6V

    • Applications:


  • Wireless sensor networks,

  • Home automation

  • Building automation

  • Consumer applications

    • AES-128 encryption:


    The on-board encryption is a great tool to help protect your privacy and data. AES-128 is a symmetric key encryption cypher and allows you to have a secure key to encrypt & decrypt your data. Symmetric ciphers are much more efficient for encrypting large amounts of data, easily.

    Software:


    You can find a range of software with the open-source code available at: http://www.microchip.com/wireless

    WPAN (IEEE 802.15.4) - Microchip
