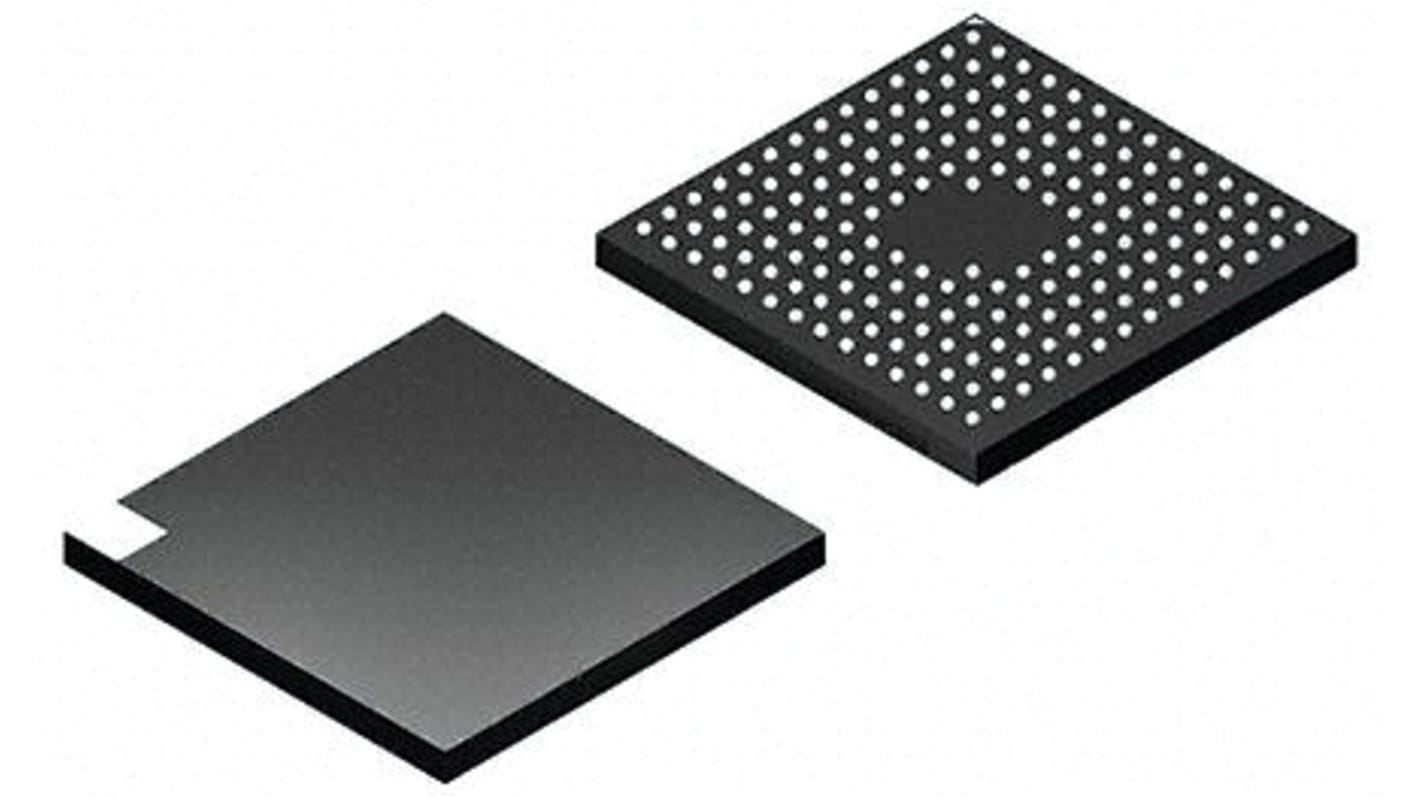

STMicroelectronics STA680 RF Receiver, 168-Pin LFBGA
- RS Stock No.:
- 829-7047
- Mfr. Part No.:
- STA680
- Brand:
- STMicroelectronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 829-7047
- Mfr. Part No.:
- STA680
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Modulation Technique | FM | |
| Package Type | LFBGA | |
| Pin Count | 168 | |
| Mounting Type | Surface Mount | |
| Dimensions | 12.15 x 12.15 x 1.4mm | |
| Length | 12.15mm | |
| Width | 12.15mm | |
| Height | 1.4mm | |
| Maximum Operating Supply Voltage | 1.26 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 1.14 V | |
| Minimum Operating Temperature | -40 °C | |
| Automotive Standard | AEC-Q100 | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Modulation Technique FM | ||
Package Type LFBGA | ||
Pin Count 168 | ||
Mounting Type Surface Mount | ||
Dimensions 12.15 x 12.15 x 1.4mm | ||
Length 12.15mm | ||
Width 12.15mm | ||
Height 1.4mm | ||
Maximum Operating Supply Voltage 1.26 V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 1.14 V | ||
Minimum Operating Temperature -40 °C | ||
Automotive Standard AEC-Q100 | ||
STA680 HD Radio™ Base-Band Receiver
The STA680 is a system-on-chip for demodulating and decoding HD Radio™ signals. The STA680 is an HD-radio base-band processor for car-radio applications.
IBOC (In-Band On-Channel) digital audio broadcast signal decoding for AM/FM hybrid and all-digital modes
Supports both HD 1.0 single-channel and dual-channel HD 1.5 applications
HD codec (HDC) audio decompression
Metadata support for HD Radio reception
MPS (main program service), SPS (supplemental program service) & PAD (program associated data) data decoding
Supports Conditional access (CA), Apple ID3 tag, Multicasting, Electronic program guide (EPG), Real-time traffic, Audio time shifting
I²S serial audio interface
I²C and SPI serial interfaces
Secondary RF base-band interface for dual tuner applications
Core power supply: +1.14 to +1.26Vdc
I/O power supply: +3.14 to +2.46Vdc
Operating temperature range: -40 to +85°C
RS Product Codes
829-7041 STA680Q LQFP144
829-7047 STA680 LFBGA168
Supports both HD 1.0 single-channel and dual-channel HD 1.5 applications
HD codec (HDC) audio decompression
Metadata support for HD Radio reception
MPS (main program service), SPS (supplemental program service) & PAD (program associated data) data decoding
Supports Conditional access (CA), Apple ID3 tag, Multicasting, Electronic program guide (EPG), Real-time traffic, Audio time shifting
I²S serial audio interface
I²C and SPI serial interfaces
Secondary RF base-band interface for dual tuner applications
Core power supply: +1.14 to +1.26Vdc
I/O power supply: +3.14 to +2.46Vdc
Operating temperature range: -40 to +85°C
RS Product Codes
829-7041 STA680Q LQFP144
829-7047 STA680 LFBGA168
Standards
Automotive qualified in accordance with AEC-Q100.
