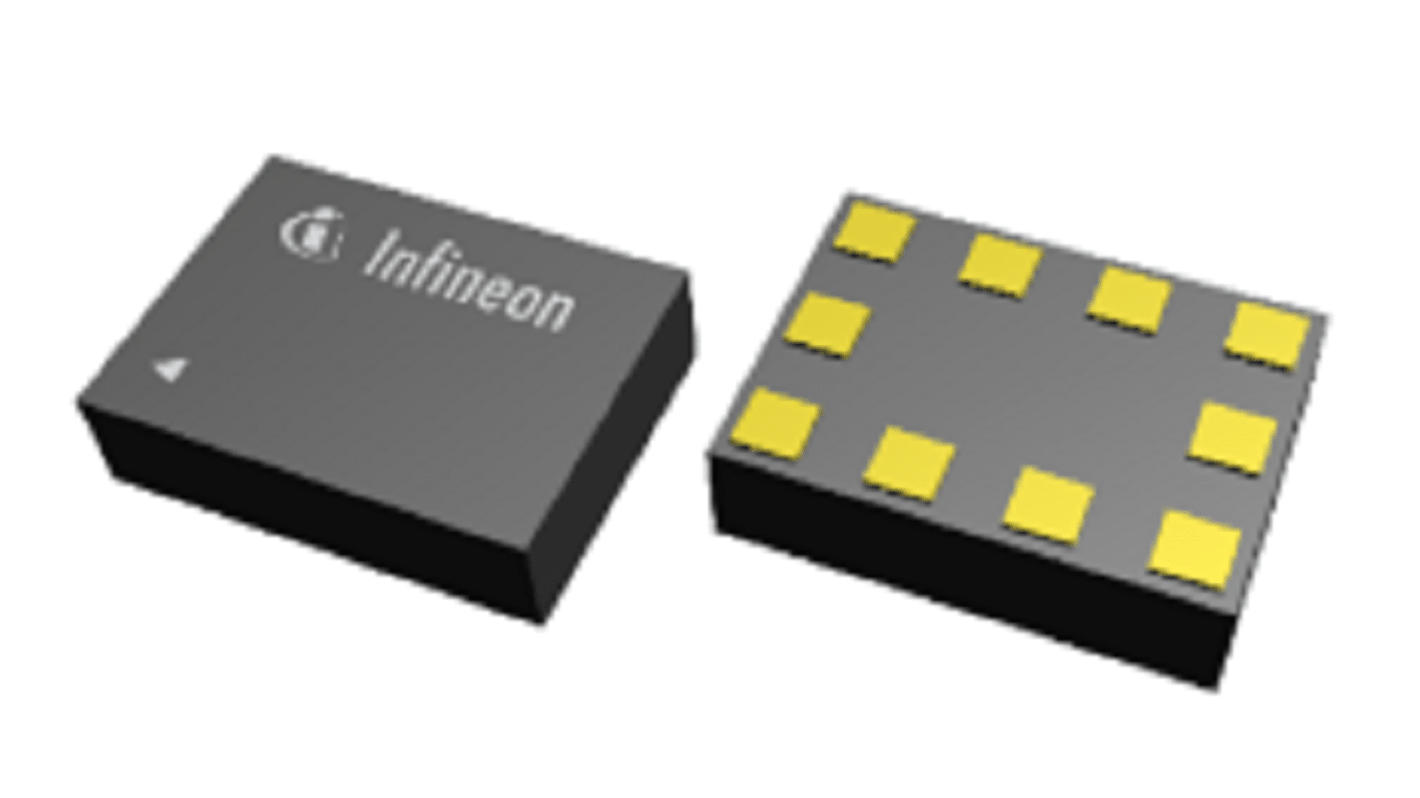

Infineon BGSA400ML10E6327XTSA1 RF Switch, 10-Pin TSLP-10

View all RF ICs
Bulk discount available

Subtotal 10 units (supplied on a continuous strip)*

£4.20

(exc. VAT)

£5.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
10 - 95£0.42
100 - 245£0.378
250 - 495£0.348
500 +£0.34

*price indicative

Packaging Options:
RS Stock No.:
249-8625P
Mfr. Part No.:
BGSA400ML10E6327XTSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Technology

RF Switch

Package Type

TSLP-10

Pin Count

10

Dimensions

1.1 x 1.5mm

Mounting Type

Surface Mount

The Infineon Low resistance antenna is a versatile shunt to ground 4 x single-pole single-throw (4xSPST) RF antenna tuning switch, it is optimized for low Coff as well as low Ron enabling applications up to 7.125 GHz and is ideal for antenna tuning application also this chip integrates on-chip CMOS logic and power supply regulation., its digital control interface is compliant with MIPI2, RFFE specification and each switch throw can be programmed individually or all together in the same RFFE command frame.

Low Ron resistance of 2 ohm at each point in ON state
Low Coff capacitance of 165 fF at each port in OFF state
High RF operating peak voltage handling of 90 V in OFF state
MIPI RFFE 2.1 control interface
Extremely low current consumption of 22 μA
4 default USID addresses via external USID_SEL pin
Small form factor 1.1 mm x 1.5 mm
