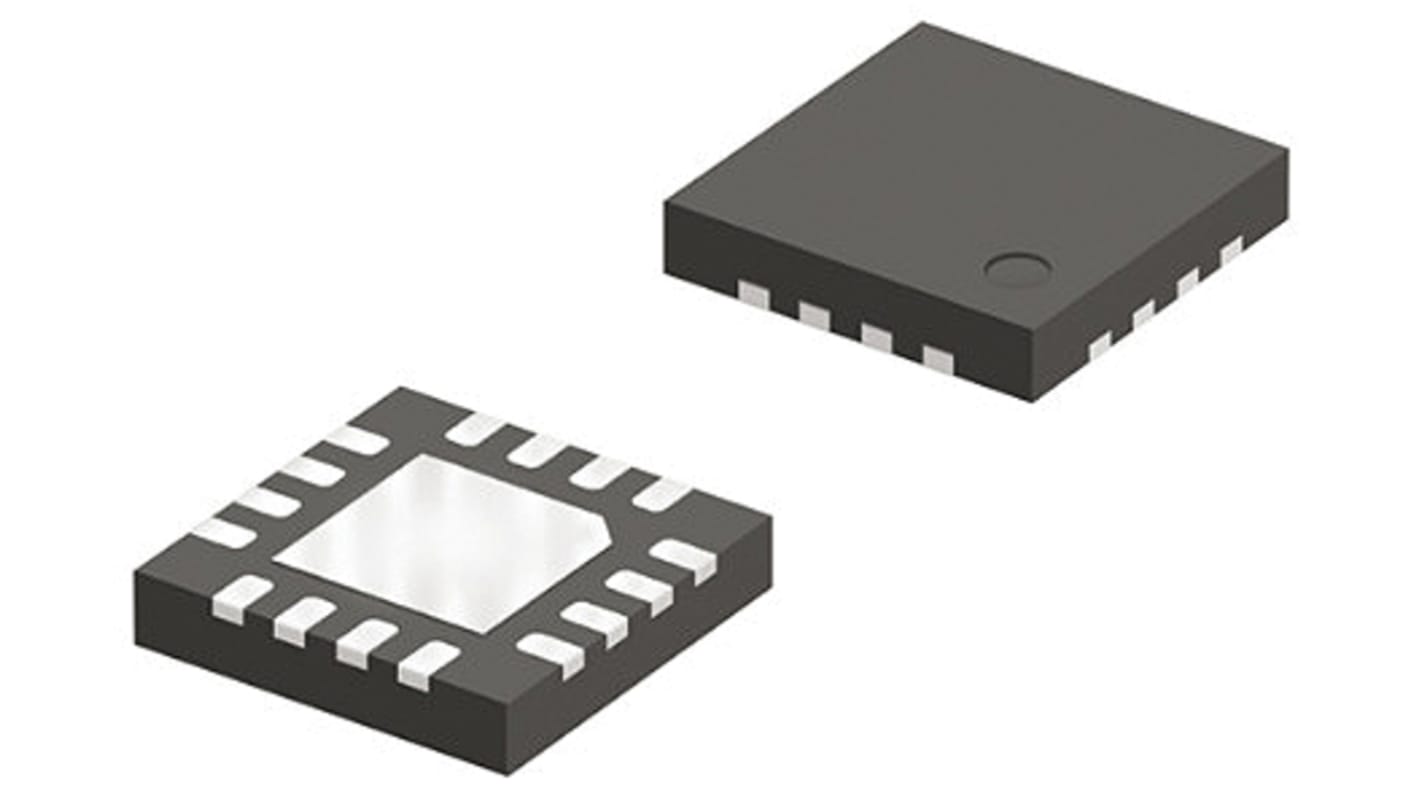

HMC311LP3E Analog Devices, RF Amplifier MMIC, 14.5 dB 6 GHz, 16-Pin SMT
- RS Stock No.:
- 862-6329
- Mfr. Part No.:
- HMC311LP3E
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 862-6329
- Mfr. Part No.:
- HMC311LP3E
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Amplifier Type | MMIC | |
| Typical Power Gain | 14.5 dB | |
| Typical Output Power | 15.5dBm | |
| Typical Noise Figure | 4.5dB | |
| Number of Channels per Chip | 1 | |
| Maximum Operating Frequency | 6 GHz | |
| Mounting Type | Surface Mount | |
| Package Type | SMT | |
| Pin Count | 16 | |
| Dimensions | 3.1 x 3.1 x 1mm | |
| Height | 1mm | |
| Length | 3.1mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Series | Hittite | |
| Maximum Operating Supply Voltage | 5 V | |
| Width | 3.1mm | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Amplifier Type MMIC | ||
Typical Power Gain 14.5 dB | ||
Typical Output Power 15.5dBm | ||
Typical Noise Figure 4.5dB | ||
Number of Channels per Chip 1 | ||
Maximum Operating Frequency 6 GHz | ||
Mounting Type Surface Mount | ||
Package Type SMT | ||
Pin Count 16 | ||
Dimensions 3.1 x 3.1 x 1mm | ||
Height 1mm | ||
Length 3.1mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Series Hittite | ||
Maximum Operating Supply Voltage 5 V | ||
Width 3.1mm | ||
RF Amplifiers, Analog Devices Hittite
Analog Devices Hittite have a series of RF amplifiers that have a range of functions. Some feature low Noise amplifiers, some RF Amplifiers are integrated with resonators, negative resistance devices, varactor diodes, and buffer amplifiers and other offer high efficiency GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC driver amplifiers.
Radio Frequency (RF) Amplifiers, Analog Devices
