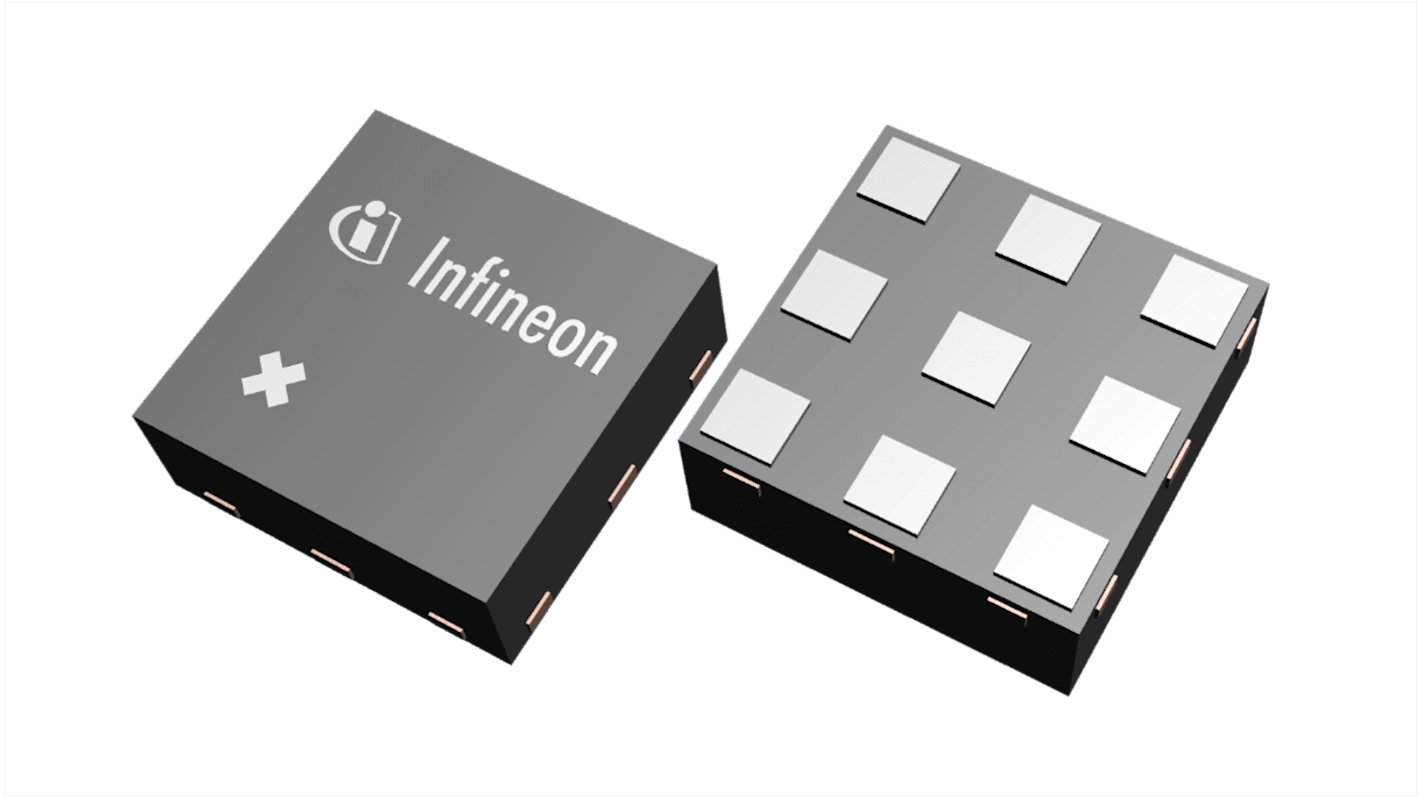

Infineon RF Amplifier Low Noise 19 dB, 9-Pin 5000 MHz TSNP
- RS Stock No.:
- 233-3492
- Mfr. Part No.:
- BGA9C1MN9E6327XTSA1
- Brand:
- Infineon
Subtotal (1 reel of 12000 units)*
£4,104.00
(exc. VAT)
£4,920.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 12000 + | £0.342 | £4,104.00 |
*price indicative
- RS Stock No.:
- 233-3492
- Mfr. Part No.:
- BGA9C1MN9E6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Amplifier Type | Low Noise | |
| Product Type | RF Amplifier | |
| Operating Frequency | 5000 MHz | |
| Technology | SiGe | |
| Mount Type | Surface | |
| Gain | 19dB | |
| Minimum Supply Voltage | 1.1V | |
| Package Type | TSNP | |
| Pin Count | 9 | |
| Maximum Supply Voltage | 2.2V | |
| Minimum Operating Temperature | -30°C | |
| Third Order Intercept OIP3 | -7dBm | |
| Noise Figure | 1dB | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | JEDEC47/20/22 | |
| Series | BGA9C1 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Amplifier Type Low Noise | ||
Product Type RF Amplifier | ||
Operating Frequency 5000 MHz | ||
Technology SiGe | ||
Mount Type Surface | ||
Gain 19dB | ||
Minimum Supply Voltage 1.1V | ||
Package Type TSNP | ||
Pin Count 9 | ||
Maximum Supply Voltage 2.2V | ||
Minimum Operating Temperature -30°C | ||
Third Order Intercept OIP3 -7dBm | ||
Noise Figure 1dB | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals JEDEC47/20/22 | ||
Series BGA9C1 | ||
Automotive Standard No | ||
The Infineon a low noise amplifier for LTE and 5G which covers a wide frequency range from 4.4 GHz to 5.0 GHz. The LNA provides up to 19.0 dB gain and 0.9 dB noise figure at a current consumption of 5.6 mA in the application configuration.
RoHS and WEEE compliant package
High EMI robustness
