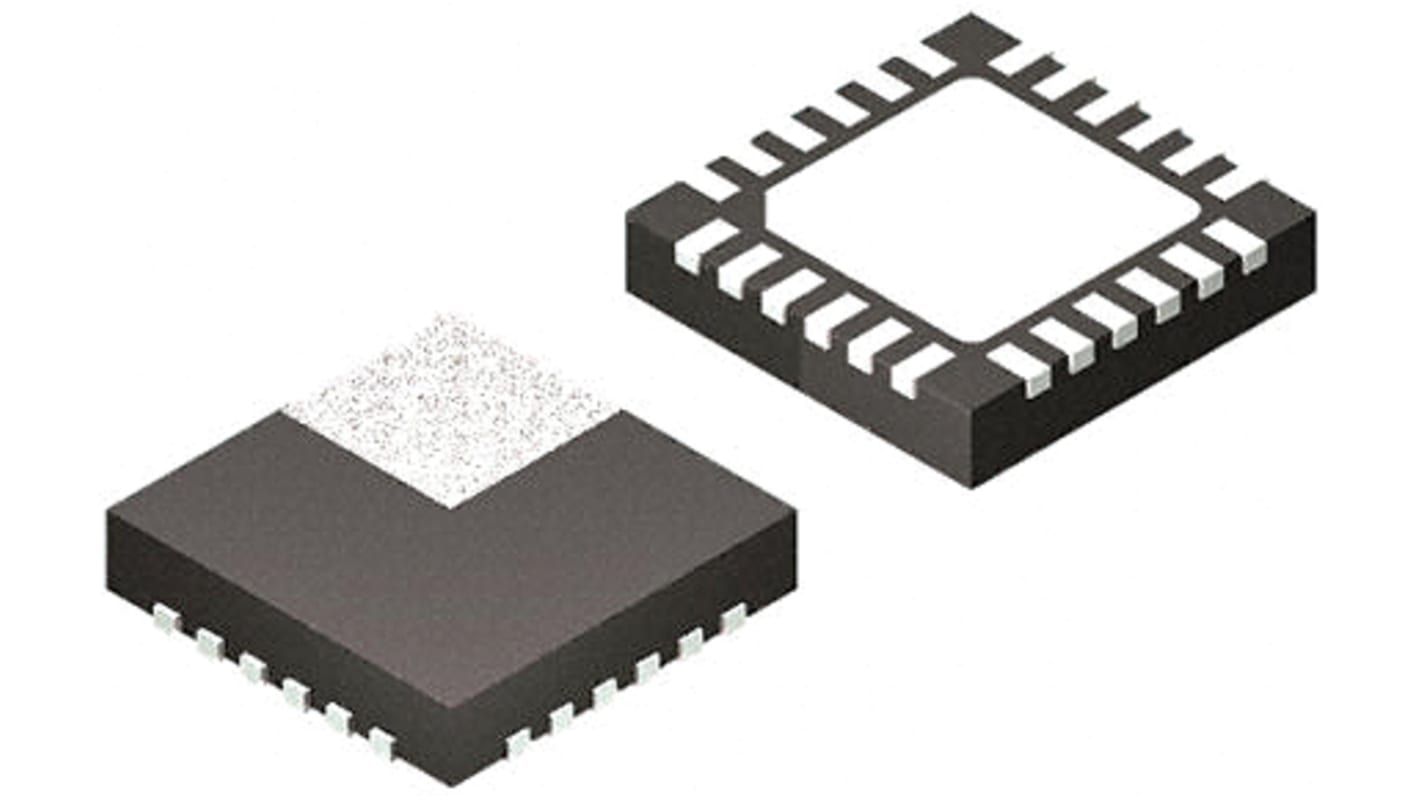

HMC564LC4 Analog Devices, RF Amplifier Low Noise, 17 dB 14 GHz, 24-Pin SMT
- RS Stock No.:
- 160-2700
- Mfr. Part No.:
- HMC564LC4
- Brand:
- Analog Devices
Stock information currently inaccessible
- RS Stock No.:
- 160-2700
- Mfr. Part No.:
- HMC564LC4
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Amplifier Type | Low Noise | |
| Typical Power Gain | 17 dB | |
| Typical Output Power | 13dBm | |
| Typical Noise Figure | 1.8dB | |
| Number of Channels per Chip | 1 | |
| Maximum Operating Frequency | 14 GHz | |
| Mounting Type | Surface Mount | |
| Package Type | SMT | |
| Pin Count | 24 | |
| Dimensions | 4 x 4 x 1.02mm | |
| Height | 1.02mm | |
| Length | 4mm | |
| Width | 4mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Supply Voltage | 3 V | |
| Series | Hittite | |
| Select all | ||
|---|---|---|
Brand Analog Devices | ||
Amplifier Type Low Noise | ||
Typical Power Gain 17 dB | ||
Typical Output Power 13dBm | ||
Typical Noise Figure 1.8dB | ||
Number of Channels per Chip 1 | ||
Maximum Operating Frequency 14 GHz | ||
Mounting Type Surface Mount | ||
Package Type SMT | ||
Pin Count 24 | ||
Dimensions 4 x 4 x 1.02mm | ||
Height 1.02mm | ||
Length 4mm | ||
Width 4mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Supply Voltage 3 V | ||
Series Hittite | ||
- COO (Country of Origin):
- US
