Bourns Resettable Fuse, 28V dc
- RS Stock No.:
- 910-8601
- Mfr. Part No.:
- NR72CB0
- Brand:
- Bourns
Subtotal (1 pack of 5 units)*
£3.99
(exc. VAT)
£4.79
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 20 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.798 | £3.99 |
*price indicative
- RS Stock No.:
- 910-8601
- Mfr. Part No.:
- NR72CB0
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Trip Current | 30A | |
| Voltage Rating | 28V dc | |
| Maximum Current | 12 A | |
| Length | 4.8mm | |
| Height | 0.89mm | |
| Width | 2.8mm | |
| Terminal Material | Copper Alloy | |
| Maximum Resistance | 15mΩ | |
| Series | NR | |
| Dimensions | 4.8 x 2.8 x 0.89mm | |
| Body Material | Lithium Polymer | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Trip Current 30A | ||
Voltage Rating 28V dc | ||
Maximum Current 12 A | ||
Length 4.8mm | ||
Height 0.89mm | ||
Width 2.8mm | ||
Terminal Material Copper Alloy | ||
Maximum Resistance 15mΩ | ||
Series NR | ||
Dimensions 4.8 x 2.8 x 0.89mm | ||
Body Material Lithium Polymer | ||
- COO (Country of Origin):
- JP

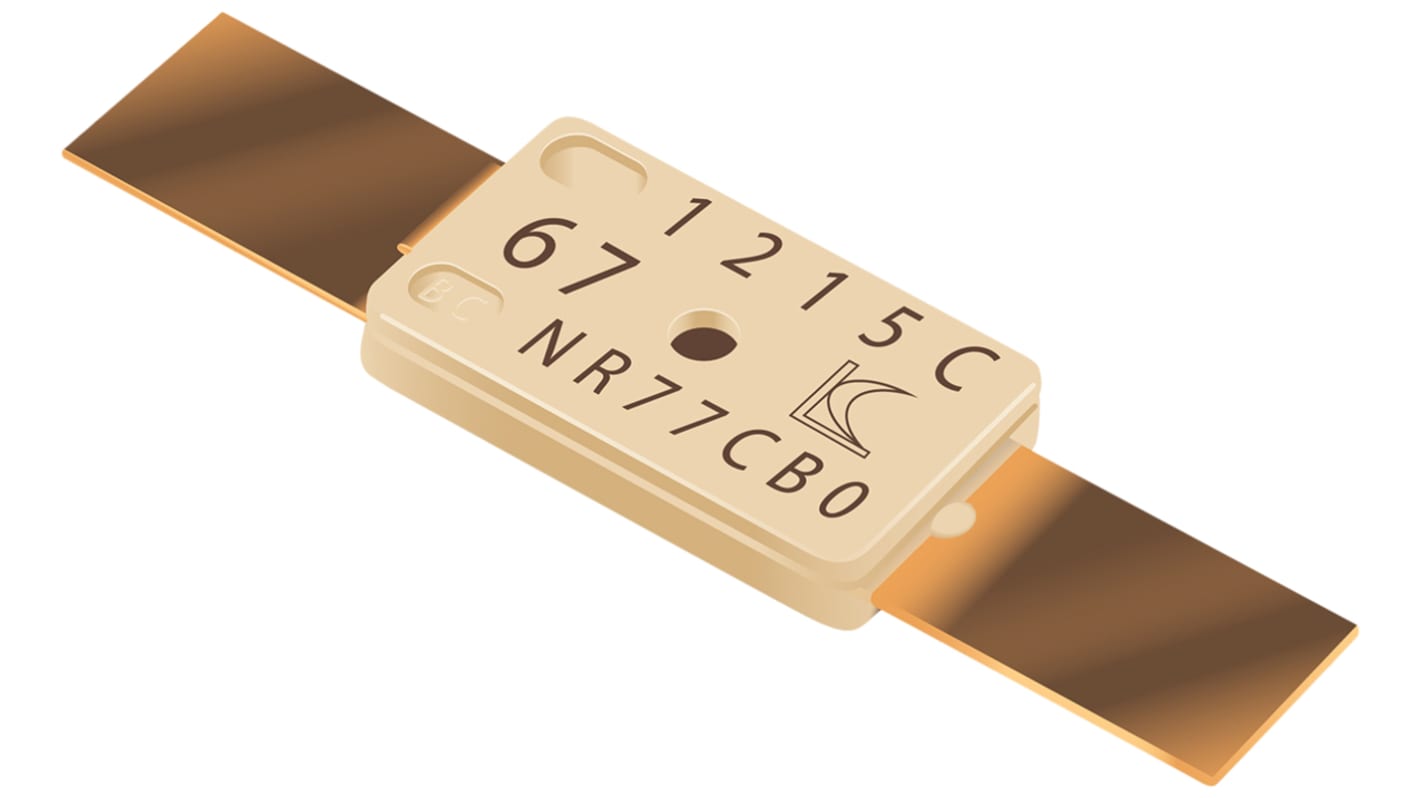

Bourns NR Series Mini-breakers.
Product description:
Bourns NR A-Type and NR C-Type mini breakers offer over temperature and overcurrent protection for lithium polymer and prismatic cells used in consumer appliance products. Mini-breakers have optimal corrosion resistant properties. The NR A and NR C series offers different trip temperatures. The innovative mini breaker enables a long battery life and high current draw and fast charge.
Bourns NR A-Type and NR C-Type mini breakers offer over temperature and overcurrent protection for lithium polymer and prismatic cells used in consumer appliance products. Mini-breakers have optimal corrosion resistant properties. The NR A and NR C series offers different trip temperatures. The innovative mini breaker enables a long battery life and high current draw and fast charge.
Features and Benefits:
Smallest body size.
NR-A Series is high current type.
NR-C Series is low current type.
Over temperature and overcurrent protection.
Controls abnormal and excessive current instantaneously.
Range of temperature options.
Smallest body size.
NR-A Series is high current type.
NR-C Series is low current type.
Over temperature and overcurrent protection.
Controls abnormal and excessive current instantaneously.
Range of temperature options.
Product Application Information:
Battery cell protection for notebook and tablet pc's, smart phones and mobile phones.
Battery cell protection for notebook and tablet pc's, smart phones and mobile phones.
Surface Mount Technology
Resettable fuses are designed for the protection of electrical and electronic circuits against excessive currents. They switch rapidly from a low resistance to very high resistance state under electrical overload or short circuit conditions, and feature automatic reset and return to low resistance state when fault condition ceases and power is removed.
Maintenance free automatic reset for thousands of cycles
Small size and no fuseholder required
Small size and no fuseholder required
Main applications
Security systems
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications
