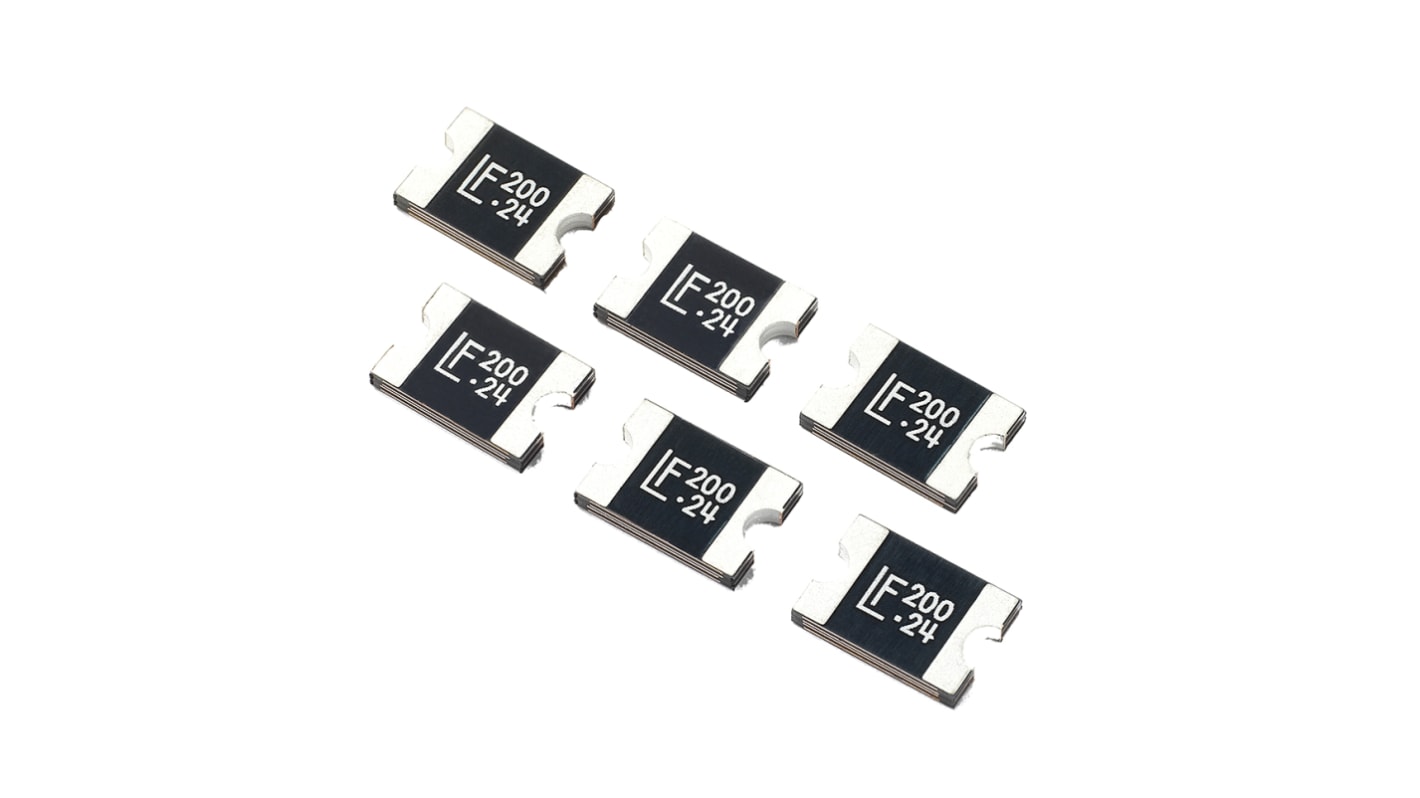

Littelfuse 0.75 A Resettable Fuse, 60V dc
- RS Stock No.:
- 895-1647
- Mfr. Part No.:
- 2920L075/60MR
- Brand:
- Littelfuse
Subtotal (1 pack of 10 units)*
£3.86
(exc. VAT)
£4.63
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 10 unit(s) shipping from 24 August 2026
- Plus 4,570 unit(s) shipping from 31 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.386 | £3.86 |
*price indicative
- RS Stock No.:
- 895-1647
- Mfr. Part No.:
- 2920L075/60MR
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Trip Current | 1.5A | |
| Product Type | Resettable Fuse | |
| Voltage | 60V dc | |
| Current Rating | 20A | |
| Time to Trip | 0.3s | |
| Hold Current | 0.75A | |
| Length | 7.98mm | |
| Height | 1.8mm | |
| Width | 5.44mm | |
| Terminal Material | Solder Plated Copper | |
| Minimum Resistance | 0.3Ω | |
| Maximum Resistance | 950mΩ | |
| Minimum Operating Temperature | 85°C | |
| Power Dissipation | 1.5W | |
| Maximum Operating Temperature | -40°C | |
| Standards/Approvals | RoHS | |
| Package Size | 2920 | |
| Series | 2920L | |
| Package Type | Reel | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Trip Current 1.5A | ||
Product Type Resettable Fuse | ||
Voltage 60V dc | ||
Current Rating 20A | ||
Time to Trip 0.3s | ||
Hold Current 0.75A | ||
Length 7.98mm | ||
Height 1.8mm | ||
Width 5.44mm | ||
Terminal Material Solder Plated Copper | ||
Minimum Resistance 0.3Ω | ||
Maximum Resistance 950mΩ | ||
Minimum Operating Temperature 85°C | ||
Power Dissipation 1.5W | ||
Maximum Operating Temperature -40°C | ||
Standards/Approvals RoHS | ||
Package Size 2920 | ||
Series 2920L | ||
Package Type Reel | ||
- COO (Country of Origin):
- TW
Littelfuse 2920L Series
The 2920L Series provides resettable over current protection for medium voltage applications. Ideal for use in low voltage telecom equipment protection and automotive electronic control module protection.
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
