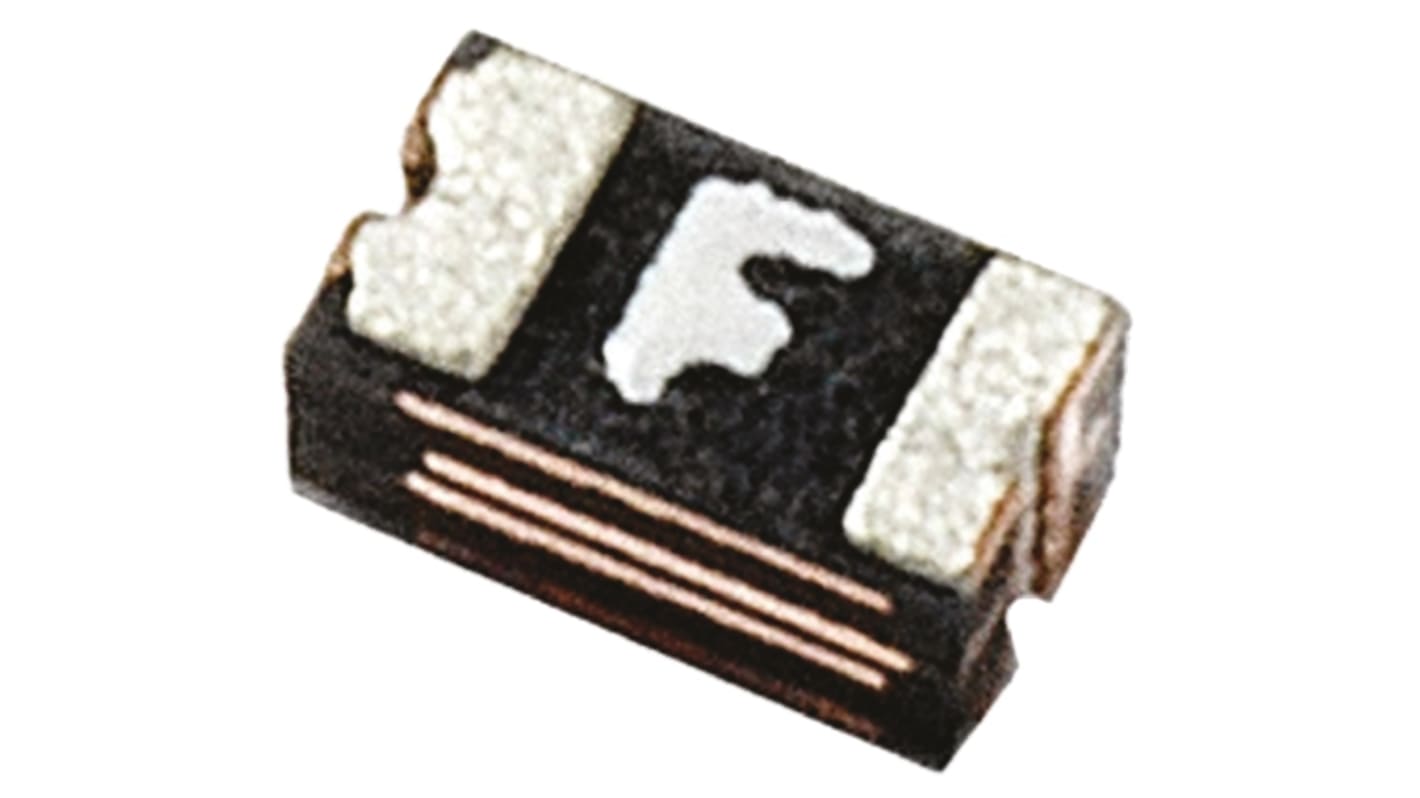

Littelfuse 0.1 A Resettable Fuse, 15V dc
- RS Stock No.:
- 787-4215
- Mfr. Part No.:
- 0603L010YR
- Brand:
- Littelfuse
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£4.95
(exc. VAT)
£5.95
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £0.99 | £4.95 |
| 25 - 45 | £0.884 | £4.42 |
| 50 - 245 | £0.734 | £3.67 |
| 250 - 495 | £0.716 | £3.58 |
| 500 + | £0.698 | £3.49 |
*price indicative
- RS Stock No.:
- 787-4215
- Mfr. Part No.:
- 0603L010YR
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Trip Current | 0.3A | |
| Product Type | Resettable Fuse | |
| Voltage | 15V dc | |
| Time to Trip | 1s | |
| Current Rating | 40A | |
| Hold Current | 0.1A | |
| Length | 1.8mm | |
| Height | 0.75mm | |
| Width | 1mm | |
| Terminal Material | Tin Plated Copper | |
| Minimum Resistance | 0.9Ω | |
| Maximum Resistance | 6Ω | |
| Minimum Operating Temperature | -40°C | |
| Power Dissipation | 0.5W | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Package Size | 0603 | |
| Series | 0603L | |
| Package Type | Reel | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Trip Current 0.3A | ||
Product Type Resettable Fuse | ||
Voltage 15V dc | ||
Time to Trip 1s | ||
Current Rating 40A | ||
Hold Current 0.1A | ||
Length 1.8mm | ||
Height 0.75mm | ||
Width 1mm | ||
Terminal Material Tin Plated Copper | ||
Minimum Resistance 0.9Ω | ||
Maximum Resistance 6Ω | ||
Minimum Operating Temperature -40°C | ||
Power Dissipation 0.5W | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Package Size 0603 | ||
Series 0603L | ||
Package Type Reel | ||
Littelfuse POLY-FUSE Resettable PTCs - 0603L Series
The Littelfuse 0603L series PTC provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
Surface Mount Technology
Resettable fuses are designed for the protection of electrical and electronic circuits against excessive currents. They switch rapidly from a low resistance to very high resistance state under electrical overload or short circuit conditions, and feature automatic reset and return to low resistance state when fault condition ceases and power is removed.
Maintenance free automatic reset for thousands of cycles
Small size and no fuseholder required
Main applications
Security systems
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications
