Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.118 | £5.59 |
| 50 - 245 | £0.828 | £4.14 |
| 250 - 495 | £0.728 | £3.64 |
| 500 - 1245 | £0.716 | £3.58 |
| 1250 + | £0.692 | £3.46 |
*price indicative
- RS Stock No.:
- 517-7010
- Mfr. Part No.:
- RGEF1400
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Trip Current | 23.8A | |
| Product Type | Resettable Fuse | |
| Time to Trip | 9s | |
| Hold Current | 14A | |
| Length | 23.5mm | |
| Height | 27.9mm | |
| Minimum Resistance | 0.003Ω | |
| Maximum Resistance | 6mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 60°C | |
| Power Dissipation | 4.6W | |
| Standards/Approvals | RoHS, UL, TUV, CSA | |
| Series | RGEF | |
| Lead Orientation | Radial | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Trip Current 23.8A | ||
Product Type Resettable Fuse | ||
Time to Trip 9s | ||
Hold Current 14A | ||
Length 23.5mm | ||
Height 27.9mm | ||
Minimum Resistance 0.003Ω | ||
Maximum Resistance 6mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 60°C | ||
Power Dissipation 4.6W | ||
Standards/Approvals RoHS, UL, TUV, CSA | ||
Series RGEF | ||
Lead Orientation Radial | ||

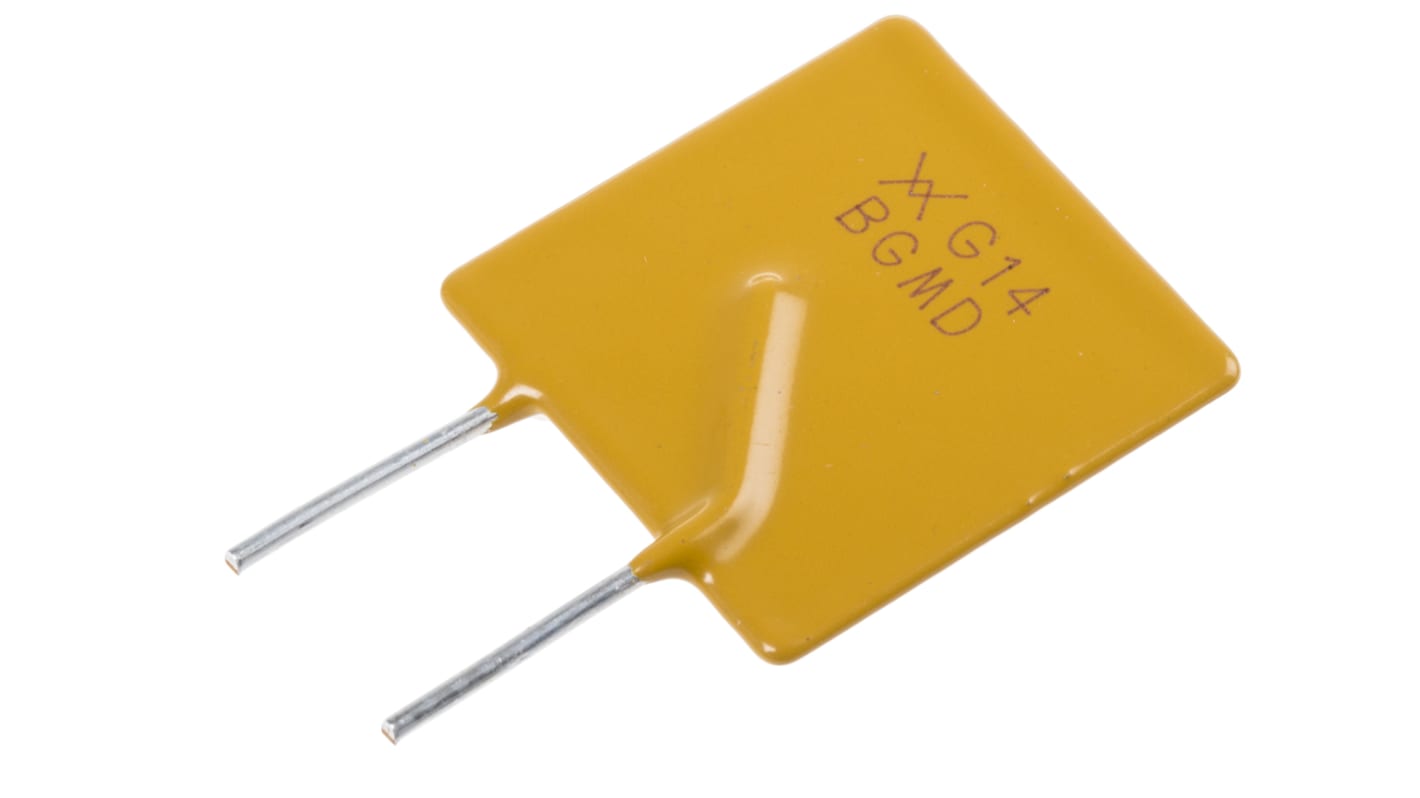

PolySwitch™ RUEF & RGEF Series
PCB Wire Ended
All are UL, CSA, TUV approved
Protection of electrical and electronic circuits against excessive currents
Rapid switch from low resistance state to very high resistance with electrical overload or short circuit
Quick and automatic reset and return to low resistance state when fault condition corrected and power removed
Features:
Automatically resets itself thousands of times
Maintenance free
Small size and no fuseholder required
Main applications:
Security systems
Power supplies and transformers
Power switching devices
Automotive and medical equipment
Instrumentation and control
Computers and peripherals
Audio visual and telecommunications
