Eaton 5 A Resettable Fuse, 6 V
- RS Stock No.:
- 225-8304
- Mfr. Part No.:
- PTSLR18126V500
- Brand:
- Eaton
Subtotal (1 pack of 10 units)*
£5.20
(exc. VAT)
£6.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship from another location
- Plus 990 unit(s) shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.52 | £5.20 |
*price indicative
- RS Stock No.:
- 225-8304
- Mfr. Part No.:
- PTSLR18126V500
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Trip Current | 10A | |
| Product Type | Resettable Fuse | |
| Voltage | 6 V | |
| Time to Trip | 2s | |
| Current Rating | 50 A | |
| Hold Current | 5A | |
| Length | 4.73mm | |
| Height | 1.2mm | |
| Width | 3.41 mm | |
| Minimum Resistance | 1mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Resistance | 0.01Ω | |
| Maximum Operating Temperature | 85°C | |
| Power Dissipation | 1W | |
| Standards/Approvals | RoHS, UL, cURus | |
| Series | Bussmann | |
| Package Type | Reel | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Trip Current 10A | ||
Product Type Resettable Fuse | ||
Voltage 6 V | ||
Time to Trip 2s | ||
Current Rating 50 A | ||
Hold Current 5A | ||
Length 4.73mm | ||
Height 1.2mm | ||
Width 3.41 mm | ||
Minimum Resistance 1mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Resistance 0.01Ω | ||
Maximum Operating Temperature 85°C | ||
Power Dissipation 1W | ||
Standards/Approvals RoHS, UL, cURus | ||
Series Bussmann | ||
Package Type Reel | ||
- COO (Country of Origin):
- CN

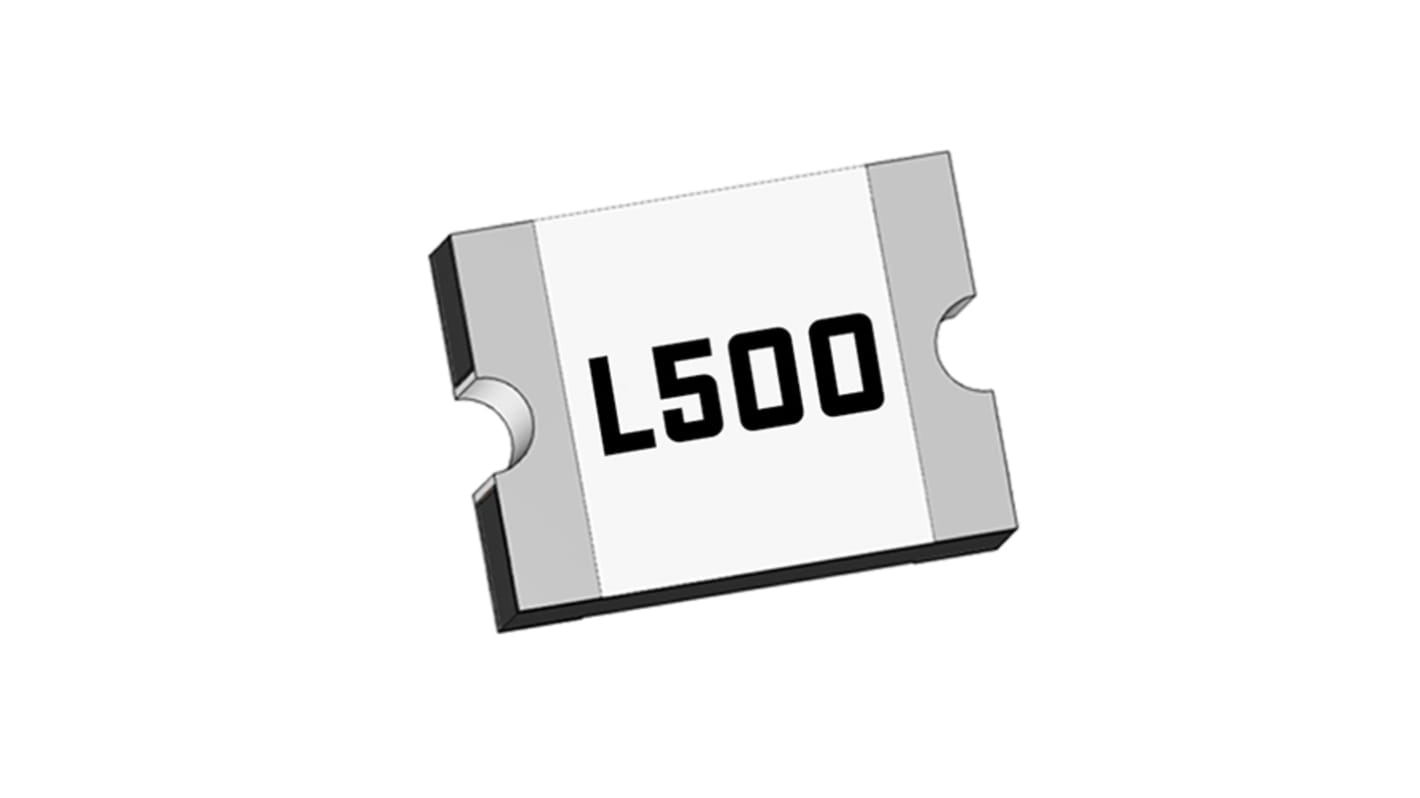

The Eaton PTSLR1812 series low resistance SMD PTC fuse has hold current of 5 A. It is used in data ports, micromotors and fans, USB protection and battery charging & charging connections.
Compact 1812 footprint
Fast time-to-trip
Low voltage hand held equipment
PC-based medical equipment
Note
Eaton formerly known as Bussmann
