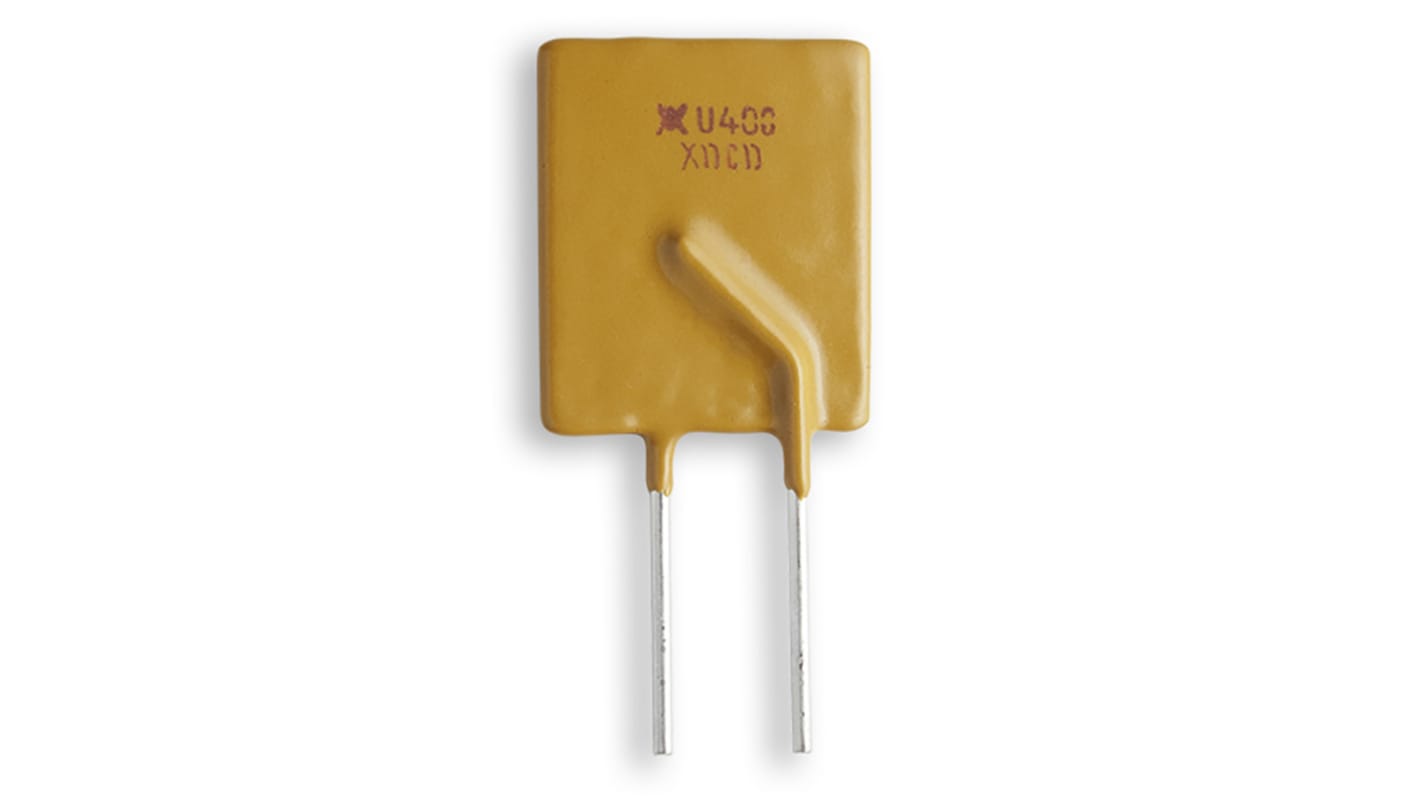

Wickmann 4 A Resettable Fuse, 30 V
- RS Stock No.:
- 174-0845
- Mfr. Part No.:
- RF2561-000
- Brand:
- Wickmann
Subtotal (1 pack of 10 units)*
£5.55
(exc. VAT)
£6.66
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 300 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.555 | £5.55 |
*price indicative
- RS Stock No.:
- 174-0845
- Mfr. Part No.:
- RF2561-000
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Product Type | Resettable Fuse | |
| Trip Current | 8A | |
| Voltage | 30 V | |
| Current Rating | 100 A | |
| Time to Trip | 12.7s | |
| Hold Current | 4A | |
| Length | 14mm | |
| Height | 19.3mm | |
| Width | 3 mm | |
| Minimum Resistance | 0.01Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Resistance | 50mΩ | |
| Power Dissipation | 2.5W | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | TUV, RoHS, CSA, CQC, UL | |
| Lead Orientation | Radial | |
| Series | RUEF | |
| Select all | ||
|---|---|---|
Brand Wickmann | ||
Product Type Resettable Fuse | ||
Trip Current 8A | ||
Voltage 30 V | ||
Current Rating 100 A | ||
Time to Trip 12.7s | ||
Hold Current 4A | ||
Length 14mm | ||
Height 19.3mm | ||
Width 3 mm | ||
Minimum Resistance 0.01Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Resistance 50mΩ | ||
Power Dissipation 2.5W | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals TUV, RoHS, CSA, CQC, UL | ||
Lead Orientation Radial | ||
Series RUEF | ||
- COO (Country of Origin):
- CN
The Littlefuse Wickmann RUEF Series, 30V PolySwitch lead-free radial leaded resettable PPTC device has 8A trip current and 12. 7s trip time. It is generally used in applications like Satellite video receivers, industrial controls, transformers, computer motherboards, modems, USB hubs, ports, battery packs, phones, fax machine, printers, analog and digital line cards.
Resettable and single-use overcurrent device
Wide range of form factor and termination methods
Devices compatible with high-volume electronics assembly
RoHS compliant
Lead-Free and Halogen-Free
