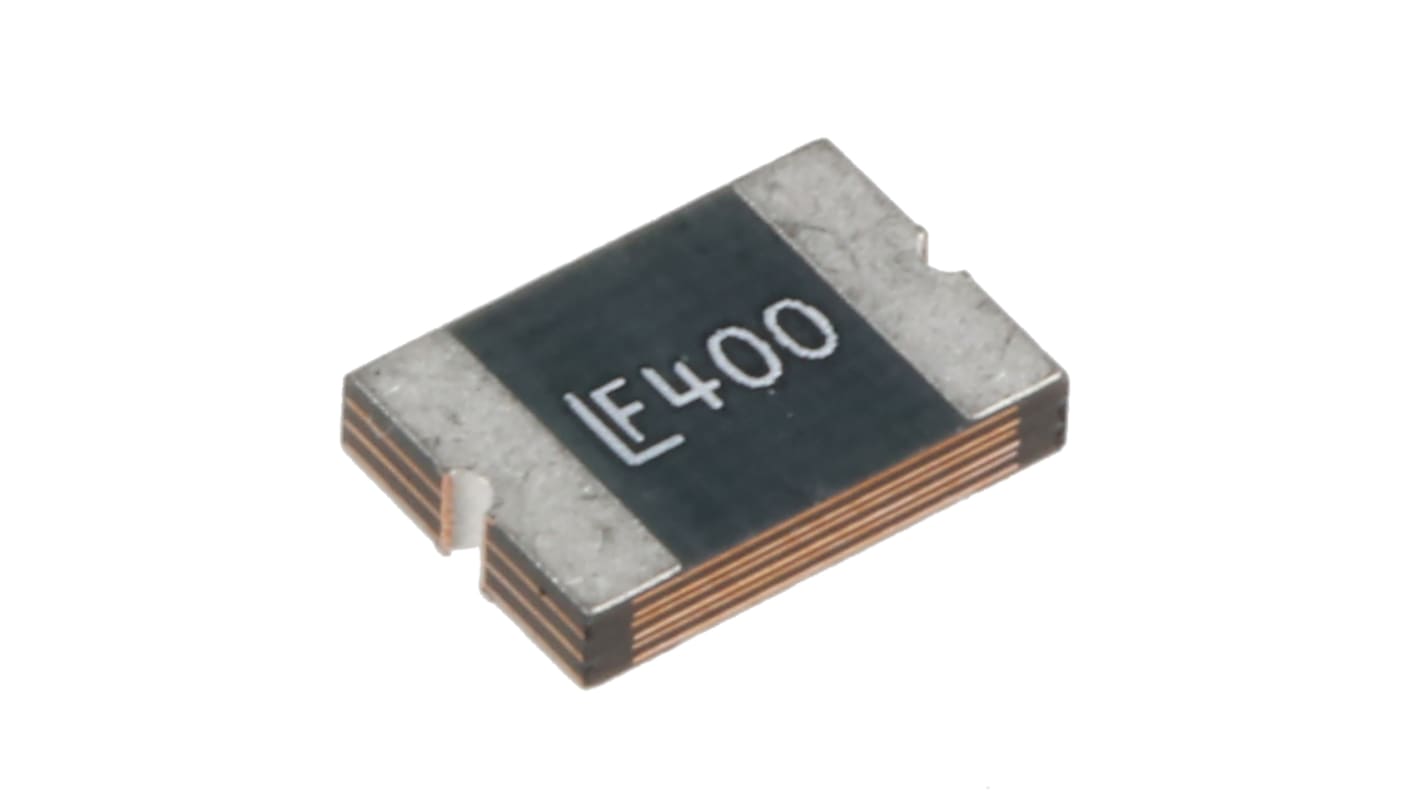

Wickmann 4 A Resettable Fuse, 15V dc
- RS Stock No.:
- 174-0675
- Mfr. Part No.:
- 2920L400/15MR
- Brand:
- Wickmann
Subtotal (1 pack of 5 units)*
£7.23
(exc. VAT)
£8.675
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 105 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £1.446 | £7.23 |
*price indicative
- RS Stock No.:
- 174-0675
- Mfr. Part No.:
- 2920L400/15MR
- Brand:
- Wickmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wickmann | |
| Product Type | Resettable Fuse | |
| Trip Current | 8A | |
| Voltage | 15V dc | |
| Time to Trip | 4s | |
| Hold Current | 4A | |
| Length | 7.98mm | |
| Height | 1.6mm | |
| Width | 5.44mm | |
| Minimum Resistance | 0.01Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Resistance | 40mΩ | |
| Maximum Operating Temperature | 85°C | |
| Power Dissipation | 1.5W | |
| Fuse Speed | F | |
| Series | 2920L | |
| Select all | ||
|---|---|---|
Brand Wickmann | ||
Product Type Resettable Fuse | ||
Trip Current 8A | ||
Voltage 15V dc | ||
Time to Trip 4s | ||
Hold Current 4A | ||
Length 7.98mm | ||
Height 1.6mm | ||
Width 5.44mm | ||
Minimum Resistance 0.01Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Resistance 40mΩ | ||
Maximum Operating Temperature 85°C | ||
Power Dissipation 1.5W | ||
Fuse Speed F | ||
Series 2920L | ||
- COO (Country of Origin):
- CN
The 2920L series device provides surface mount overcurrent protection for medium voltage (≤60V) applications where resettable protection is desired.
Features
Lead-free
Fast response to fault currents
High voltage
Low Profile
Compatible with high temperature solders
