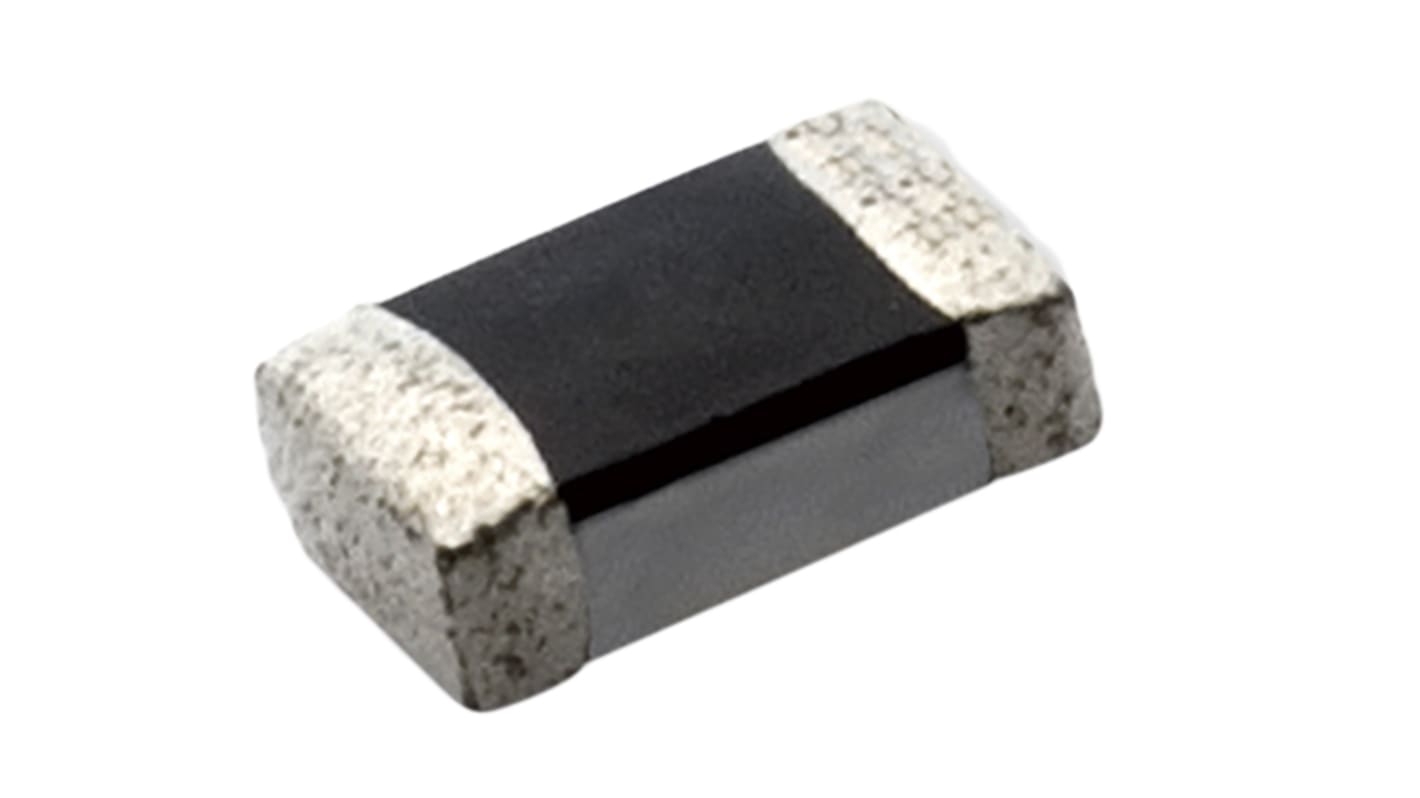

Wickmann Resettable Fuse, 14V dc
- RS Stock No.:
- 174-0468
- Mfr. Part No.:
- RF1600-000
- Brand:
- Wickmann
Available to back order for despatch 28/08/2024
Added
Price 1 Reel of 10000
£1,519.95
(exc. VAT)
£1,823.94
(inc. VAT)
| Reel(s) | Per Reel | Per unit* |
| 1 - 1 | £1,519.95 | £0.152 |
| 2 - 4 | £1,472.44 | £0.147 |
| 5 + | £1,427.83 | £0.143 |
| *price indicative | ||
- RS Stock No.:
- 174-0468
- Mfr. Part No.:
- RF1600-000
- Brand:
- Wickmann
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Littlefuse Wickmann PESD series ESD protector is a 14V DC surge protection device that provides overvoltage protection. It offers many advantages over traditional protection devices, such as multi layer varistors (MLVs), low capacitance. It is generally used in applications like HDMI 1. 3 interfaces, LCD and plasma TV, cellular phones, antennas, portable video player, GPS system, etc.
RoHS compliant
Lead & Halogen free
0.25 pF (typ) capacitance
Low-leakage current
Low-clamping voltage
Fast response time (< 1ns)
Capable of withstanding numerous ESD strikes
Compatible with standard reflow installation procedures
Thick film technology
Bi-directional protection
AEC-Q200 qualified
Lead & Halogen free
0.25 pF (typ) capacitance
Low-leakage current
Low-clamping voltage
Fast response time (< 1ns)
Capable of withstanding numerous ESD strikes
Compatible with standard reflow installation procedures
Thick film technology
Bi-directional protection
AEC-Q200 qualified
Specifications
Attribute | Value |
|---|---|
| Voltage Rating | 14V dc |
| Length | 1.1mm |
| Height | 0.43mm |
| Width | 0.6mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Package Size | 0402 |
| Operating Temperature Range | -55 → +125 °C |
| Fuse Speed | F |
| Series | PESD |
| Dimensions | 1.1 x 0.6 x 0.43mm |
