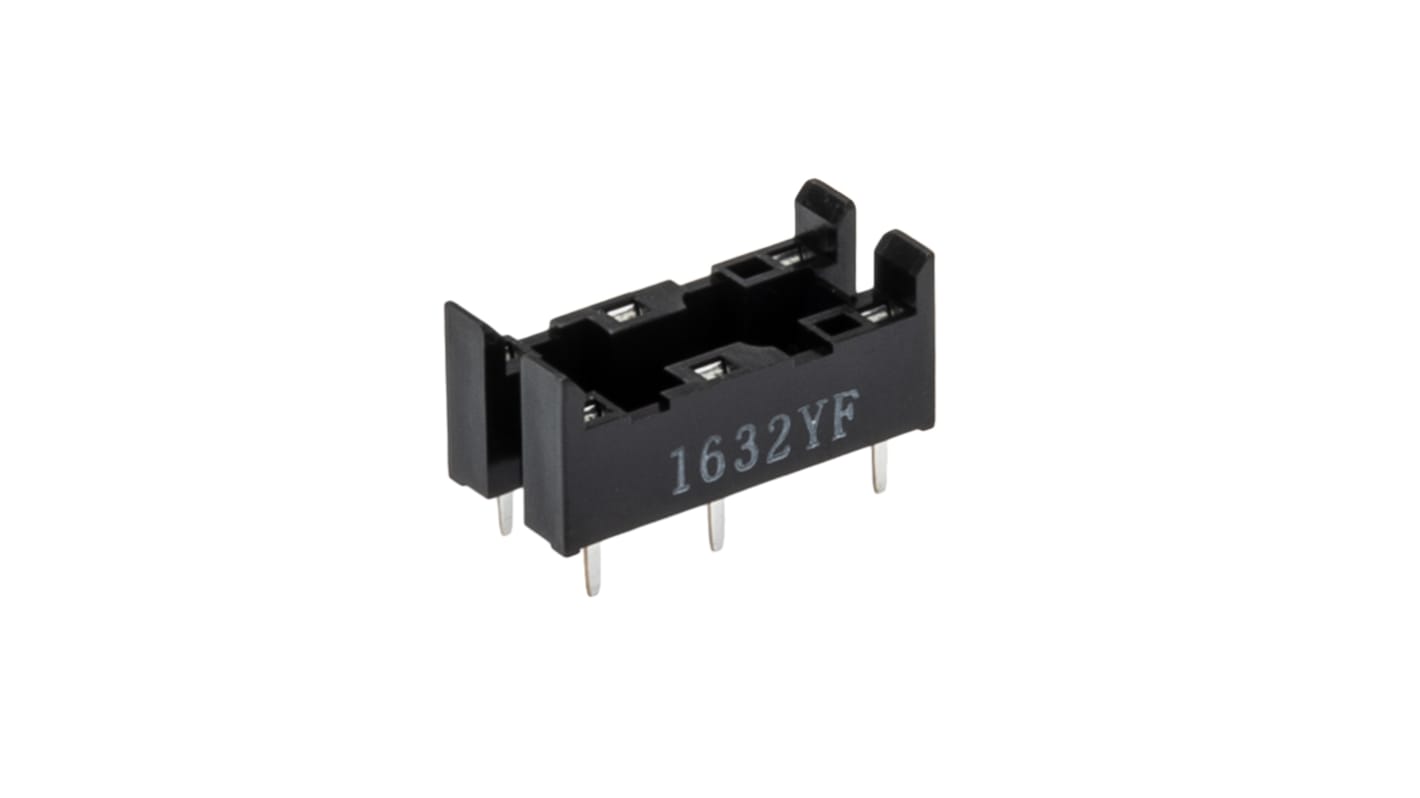

Omron P6B 6 Way 24V dc PCB Relay Socket, for use with G6B-2214P-US Relay, G6B-2014P-US Relay, G6B-2114P-US Relay
- RS Stock No.:
- 807-3958
- Mfr. Part No.:
- P6B-26P
- Brand:
- Omron
Stock information currently inaccessible
- RS Stock No.:
- 807-3958
- Mfr. Part No.:
- P6B-26P
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Relay Socket | |
| Voltage | 24V dc | |
| For Use With | G6B-2214P-US Relay, G6B-2014P-US Relay, G6B-2114P-US Relay | |
| Series | P6B | |
| Terminal Type | PCB Terminal | |
| Standards/Approvals | EN/IEC, CSA, TÜV, UL | |
| Number of Contacts | 6 | |
| Mount Type | PCB | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Relay Socket | ||
Voltage 24V dc | ||
For Use With G6B-2214P-US Relay, G6B-2014P-US Relay, G6B-2114P-US Relay | ||
Series P6B | ||
Terminal Type PCB Terminal | ||
Standards/Approvals EN/IEC, CSA, TÜV, UL | ||
Number of Contacts 6 | ||
Mount Type PCB | ||
- COO (Country of Origin):
- JP
Omron P6B Series Relay Socket, 3 to 24V DC Voltage, PCB Mount - P6B-26P
This relay socket provides an effective connection solution for relays in diverse industrial applications. It is specifically designed for compatibility with G6B series relays and supports a voltage range of 3 to 24 V DC. The PCB mount design facilitates straightforward installation and ensures a secure fit, making it essential for automation, electronics, and electrical projects.
Features & Benefits
• Six contact configuration improves circuit connections
• PCB mount type simplifies integration into various setups
• Durable PCB pin termination for stable connections
Applications
• Utilised with G6B series relays for efficient circuit control
• Appropriate for automotive electronics and robotics
• Applicable in control panels for efficient electrical connections
How do I ensure compatibility with my existing relay?
Compatibility is assured with the specified G6B relays for this socket.
What is the maximum voltage this socket can handle?
It supports a voltage range of 3 to 24 V DC.
Can this socket be easily mounted on a circuit board?
Yes, its PCB mount design allows for easy installation.
What type of termination does this socket use?
It uses PCB pin termination for dependable electrical connections.
